January 24, 2018

Exotek introduce new RC10F6 option parts

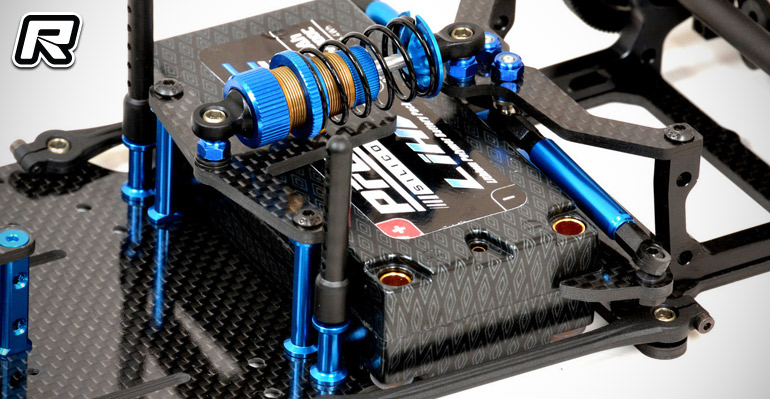

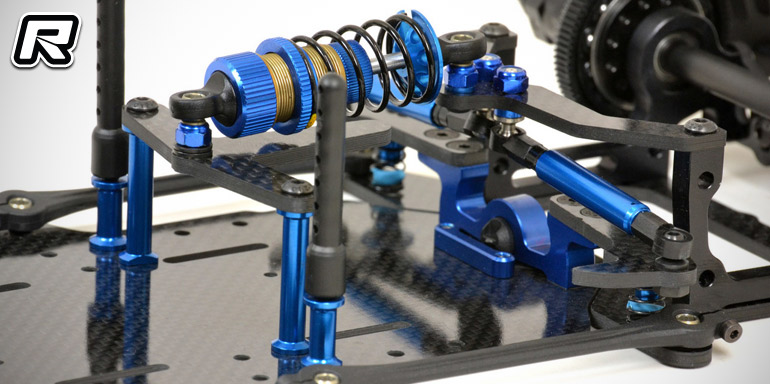

Coming from Exotek and made for the Team Associated RC10F6 formula car are the new rear traction plate set and the adjustable front camber arm kit. Starting with the rear end, the rear traction plate set is a battery hold down conversion that adds rear end flex to the F6 chassis for improved traction in all conditions. The redesigned shock plate includes a battery hold down bar so that tape is not needed to hold down the battery, for easier more secure battery hold also with the benefit of added chassis flex. Also included are three extra soft top shock springs as an added tuning touch to increase rear grip on lower grip track or rubber tyre conditions. The conversion is usable with standard shorty LiPo packs and requires two new holes in the body shell for the repositioned body posts.

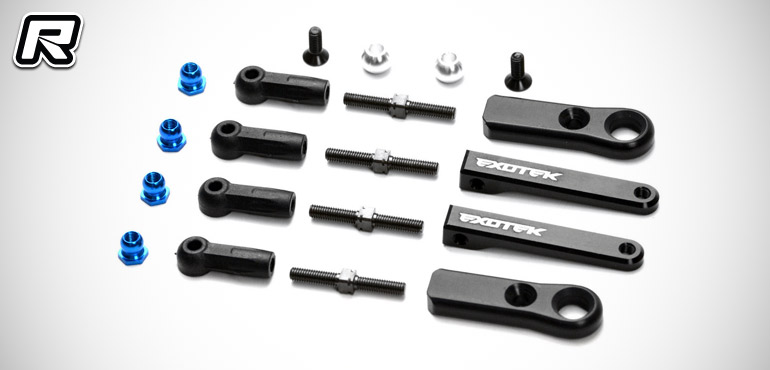

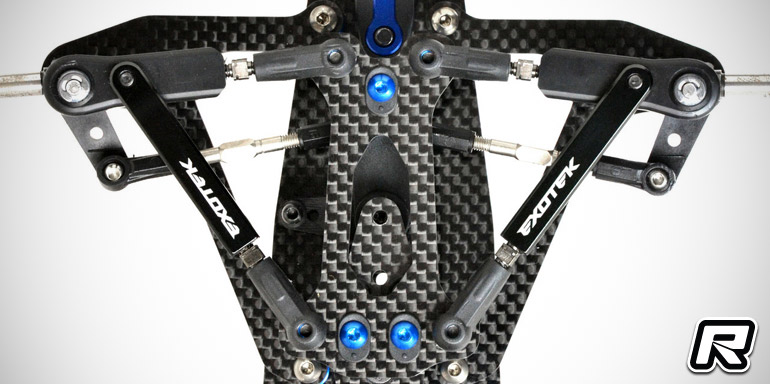

Also new is the multi adjustable upper arm set for the Associated Formula car. These heavy duty CNC machined arm sets allow to make quick and precise camber and caster adjustments on the fly, without disassembling the front end or even taking off the body shell. The arm set is precision machined for the smoothest arm movement and more durable than stock to better absorb hard impacts and remain tweak free. Included in the set are 7075 alloy caster adjusters, smooth action machined delrin camber adjusters, alloy swivel balls for upper nylon arms, alloy 4.8mm pivot balls, hardened steel 3mm turnbuckles and hardware as well as heavy duty nylon ball cups. The arm set can also be used on the Xray X1 but without the roll bar.

Source: Exotek [exotekracing.com]
