January 2, 2018

VBC Racing FX18 Lightning formula car kit

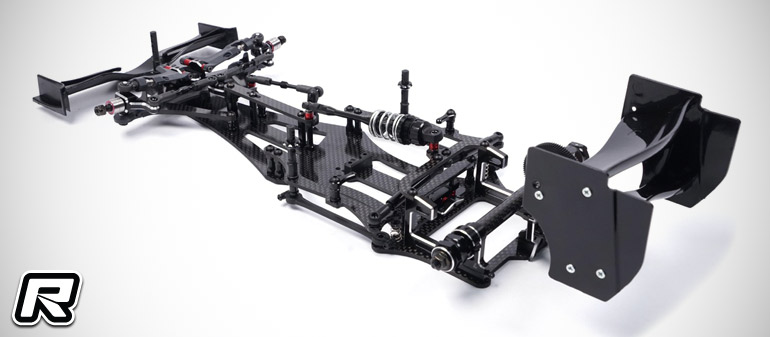

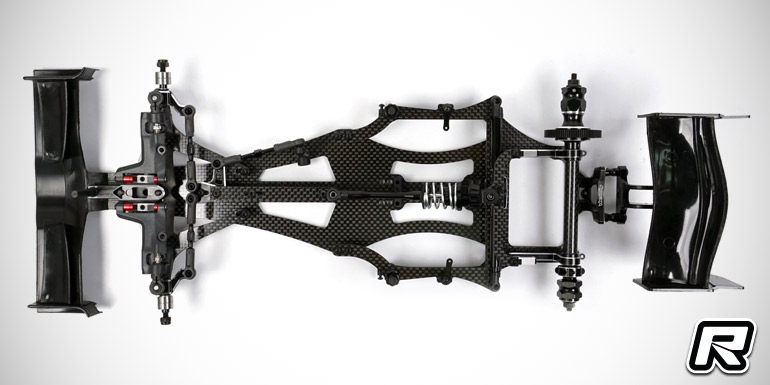

VBC Racing have introduced their all-new FX18 Lightning 1/10th scale formula pan car kit. The vehicle utilises a new carbon fibre chassis with an updated design and a very narrow lower plate to prevent the chassis from scrubbing during hard cornering. New upper side plates build the base for the body mounts, side links and the tweak-free transverse battery mount. Adjustable battery stoppers allow for a front or rear battery position while a redesigned floating servo mount ensures equal left-right chassis flex. Other features include new composite upper link and steering link ball cups, front aluminium steering knuckles, the TBBS-P progressive centre shock as well as 7075-T6 aluminium body height adjusters. Also new are an updated power pod design that allows the use of an optional motor cooling fan, a new rear pivot and the kit is rounded out by Mon-Tech Racing front and rear wings.

New features:

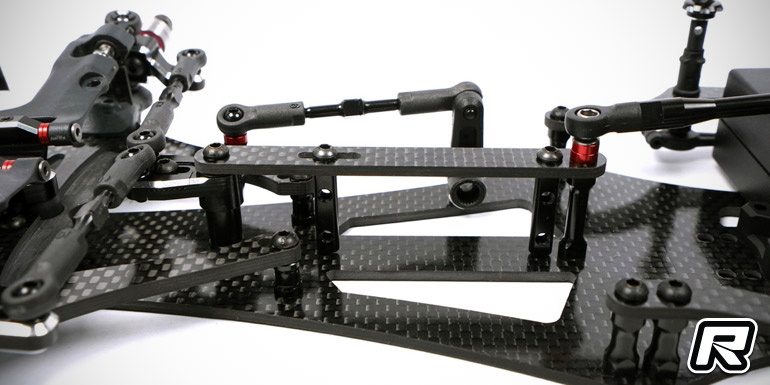

– New side link design to prevent chassis grind during cornering
– Durable super steel upper arm turnbuckle
– 7075-T6 rear axle left

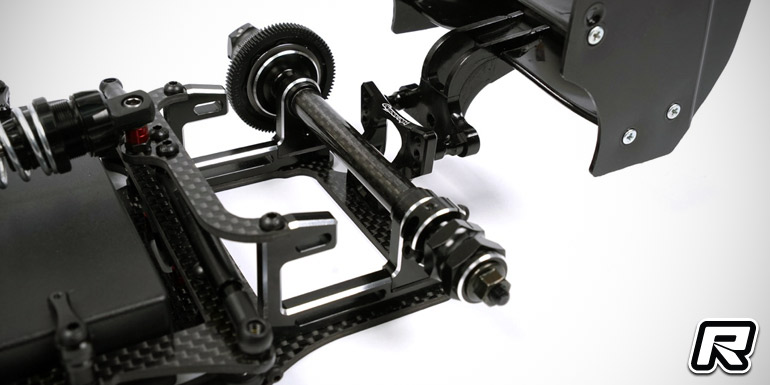

– Rear pod mount with slot to accommodate motor cooling fan
– New rear pivot design

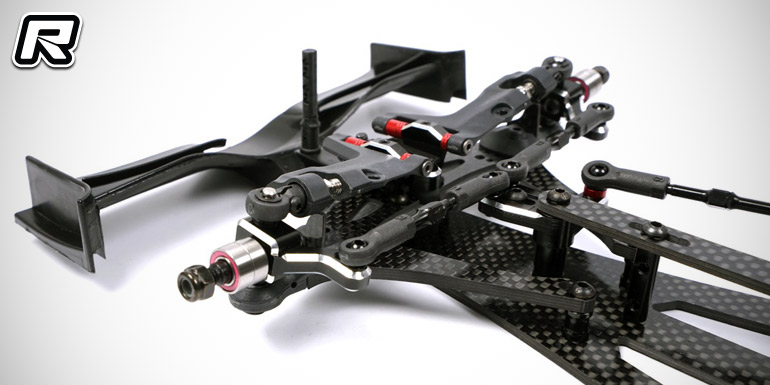

– 7075-T6 steering knuckles
– Adjustable carbon steel front wheel axle
– New composite upper link ball Ccups
– New composite steering ball cups
– New chassis design for improved performance and stability

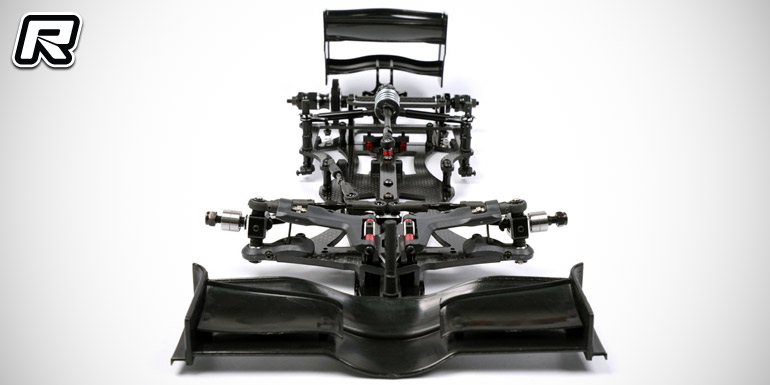

– Mon-Tech front and rear diffuser included

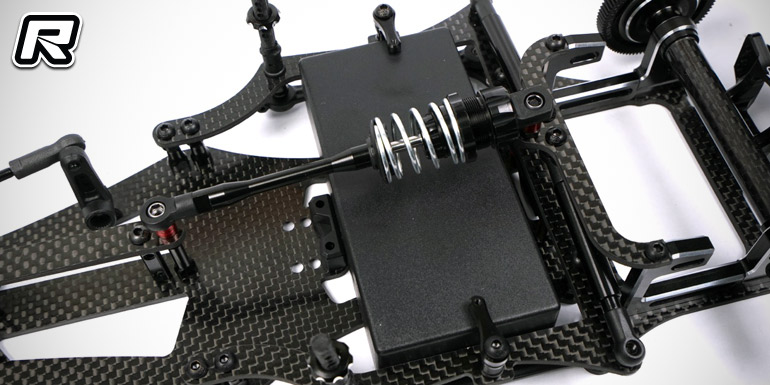

– Transverse layout for shorty battery with adjustable position
– Adjustable tweak-free battery mount
– New TBBS-P progressive shock design
– New floating servo design
– New chassis design for improved performance
– 7075-T6 body height adjusters

Source: VBC Racing [vbcracing.com]
