March 4, 2018

Schelle B6.1 alloy rear hubs & low front wing mount

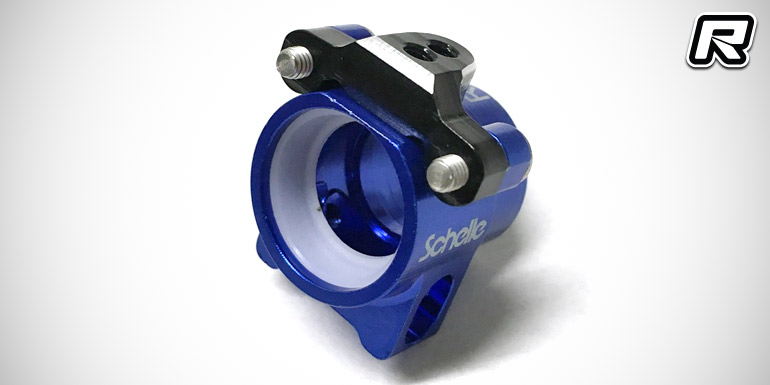

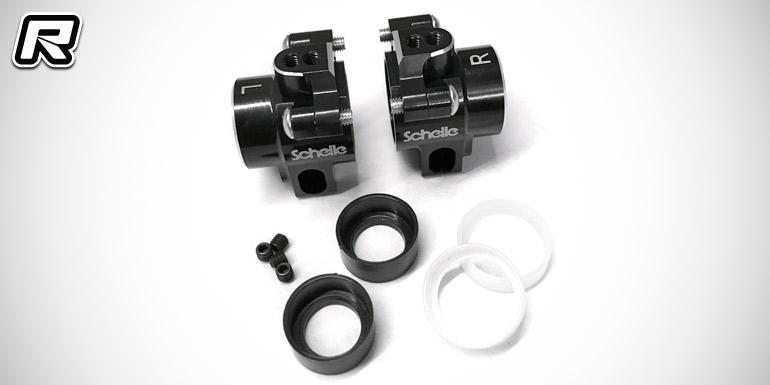

Schelle Racing Innovations have introduced new option parts for the Team Associated B6.1 buggy in the form of alloy rear hubs and a low front wing mount. Starting with the rear hubs, the proven 2-piece design allows fine-adjustment and increases durability as the upper cap design can space away from the main hub with ballstud shims, allowing racers fine in-between adjustments for the rear upper link location. The upper caps are shared with the B6 and B64s design, with the same parts used both left and right. The upper cap design with a shorter washer stack reduces leverage on the outer ballstud, as well as increasing shock clearance for the turnbuckle. The hubs are available for the 67mm driveshaft setup in the B6.1 and B6.1D kits, they come in black or blue finish and they are also available as the B6.1 Carpet Hub Set, a black version which comes with -2mm upper caps and ballstuds specifically for carpet racing.

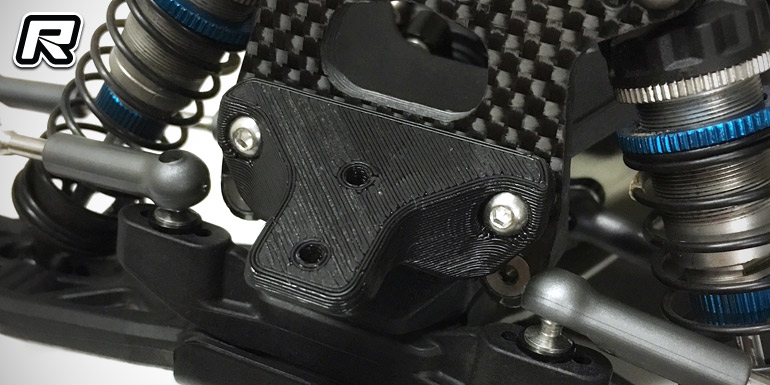

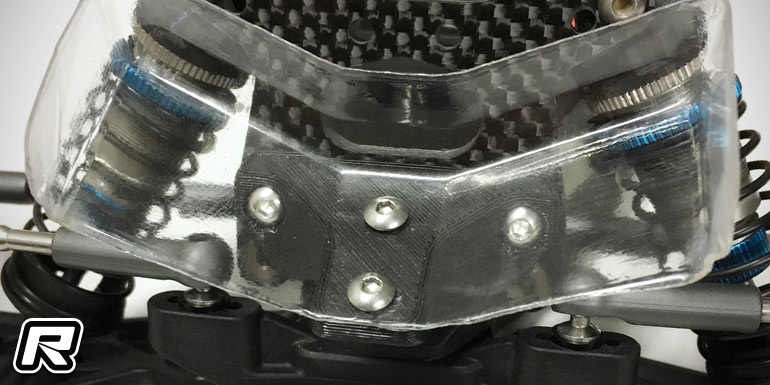

Also new is the low front wing mount, a 3-D-printed part to fit front wings for improved overall downforce. The unique design features a wide base and narrow mount platform for in-line screw mounting that allows for wing flex, increasing durability. The mount incorporates a 3 degrees forward rake, it fits B6.1 , B6.1D, and older B6 buggies and comes without a wing.

Source: Schelle Racing Innovations [schelleracing.com]
