April 2, 2018

Team Associated RC10T6.1 Team Kit stadium truck

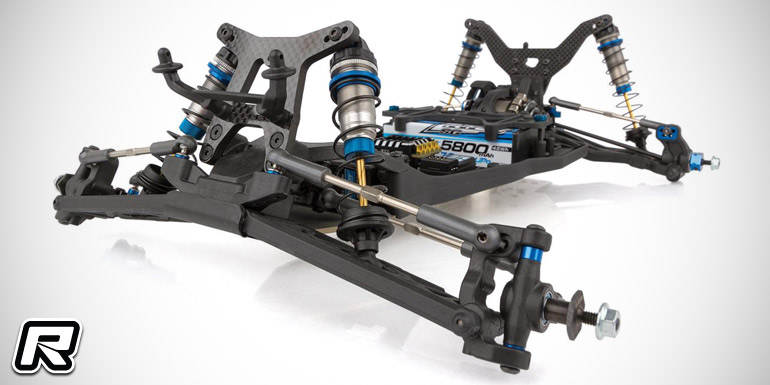

Following a first teaser image released on social media, Team Associated have officially introduced the long-awaited T6.1 Team Kit 1/10th 2WD stadium truck. Based on AE’ B6.1 platform, the RC10T6.1 Team Kit represents the next step in the evolution for competitive truck racing. The RC10T6.1 Team Kit began life with the many great advantages already learned through the development of the RC10B6.1. Armed with extensive feedback from racers, the engineers behind the doors of Team Associated’s Area 51 set off to design the ultimate truck chassis utilising every advantage possible. Like the RC10B6.1, the RC10T6.1 has new features, such as an easy-access differential with height adjustment, and an all-new slipper assembly. Also part of the package is a layback Stealth transmission for a lower and more rearward centre of gravity, aluminium C and D mounts as well as a Pro-Line Enforcer body shell. The kit is set for a release in April.

– Layback Stealth transmission included for lower and more rearward CG

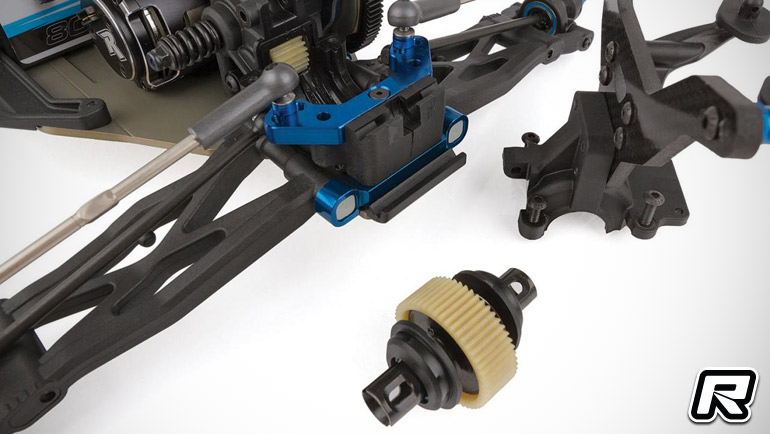

– Easy access to ball differential
– Differential height adjustment with included 0, 1, 2, and 3mm inserts

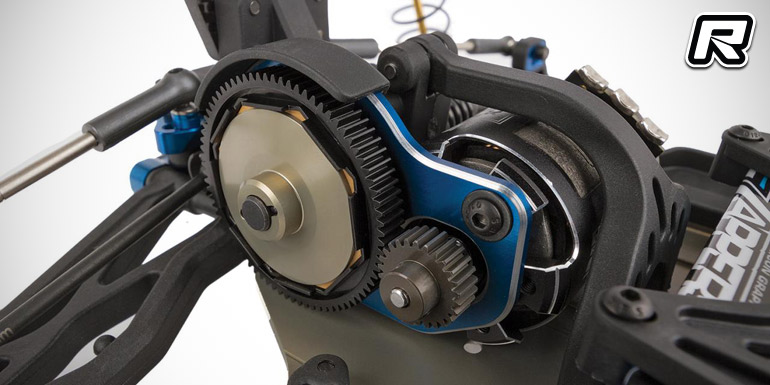

– New slipper assembly for better weight balance and shock clearance

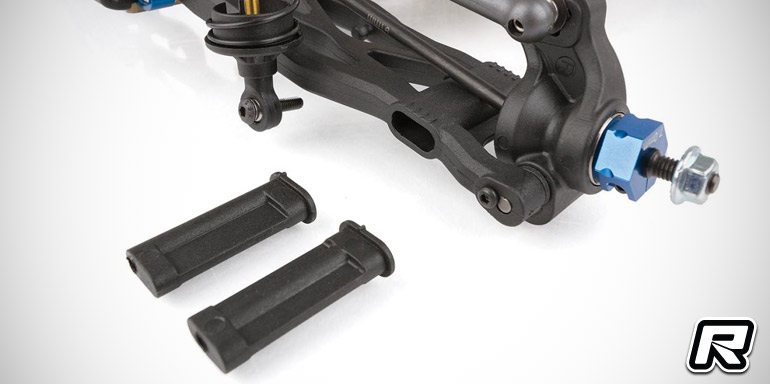

– Innovative rear arm with moulded inserts for ultra-fine lower shock mounting adjustments
– Machined pistons included for better fit and smoother operation
– Aluminum C and D arm mounts included for a large range of anti-squat and toe adjustments

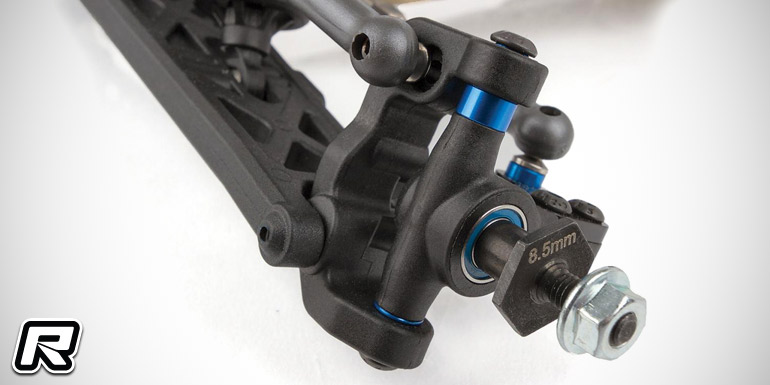

– Rear hubs feature large bearings and the easy-insert system to adjust camber link position and rear axle height

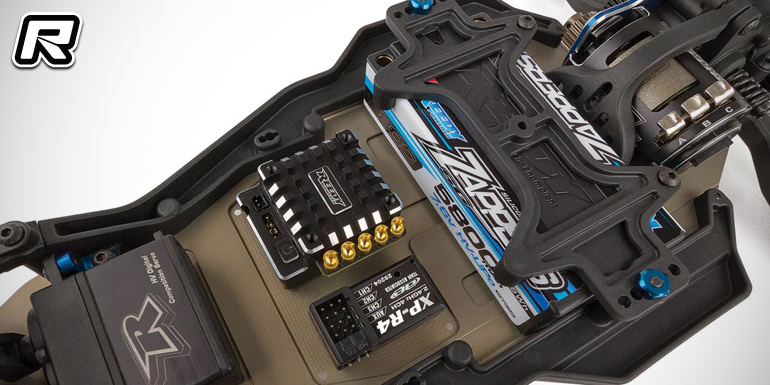

– Reverse bellcrank steering allows more room for mounting electronics
– Bolt-on steering block arms for easy Ackermann adjustments
– Precision-ground steering bellcrank screws to reduce steering slop
– Aluminum rear ballstud mount for added strength
– 7.0mm aluminium rear clamping hex with laser etching
– Heavy-duty ball cups and ballstuds allow for maximum suspension travel while reducing binding and friction

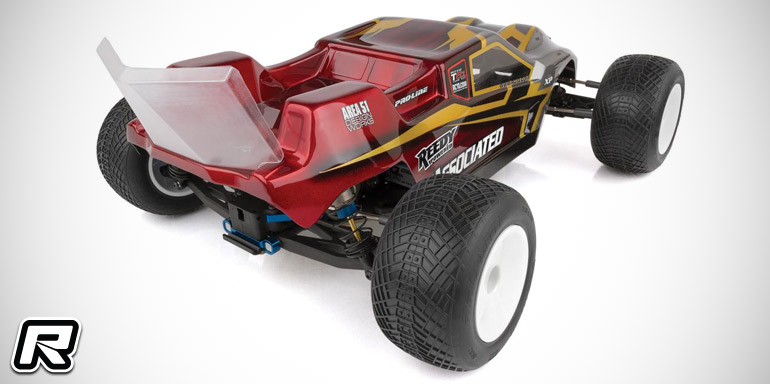

– Pro-Line Enforcer body included
– Front and rear anti-roll bar integration makes tuning easy
– Heavy-duty routed graphite shock towers
– Heavy-duty rear axle with 91mm CVA bones

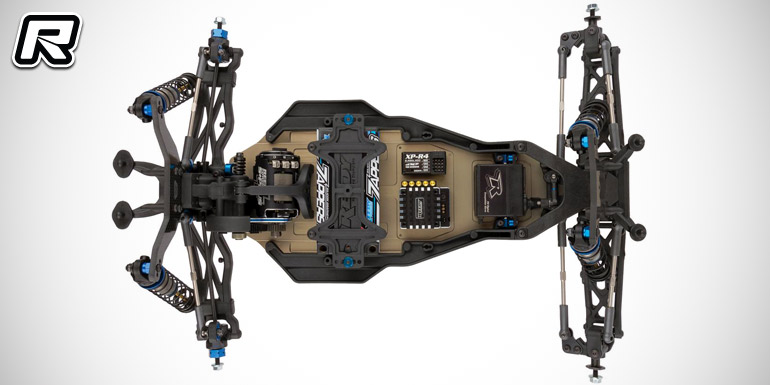

– Lightweight, hard-anodised aluminium chassis with centralised mass for improved handling on all track types

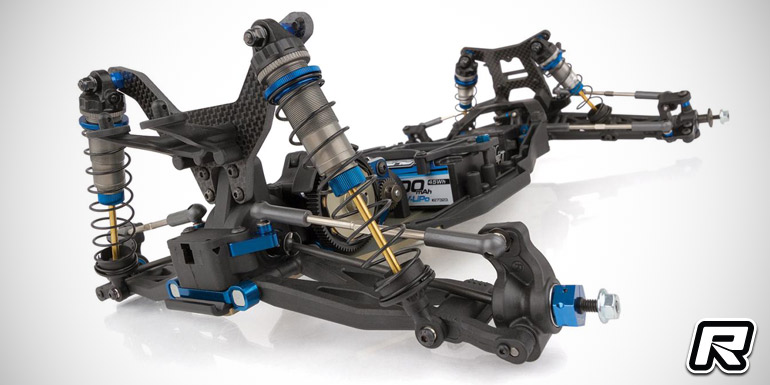

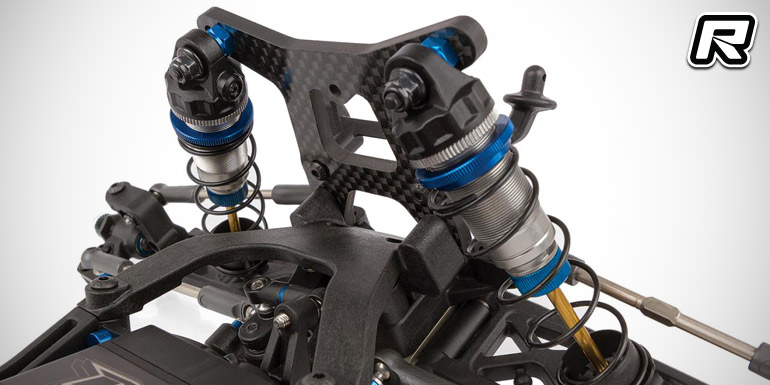

– V2 12mm “Big Bore” threaded aluminium shocks with 3mm shafts and X-rings for improved smoothness
– One-piece shock bushing to make assembly easier
– Lightweight aluminium top shaft
– Factory Team upgraded ball bearing kit included (now oiled instead of greased for less drag)

Source: Team Associated [teamassociated.com]
