May 29, 2018

RC-Mission T4 bulkhead alignment tool

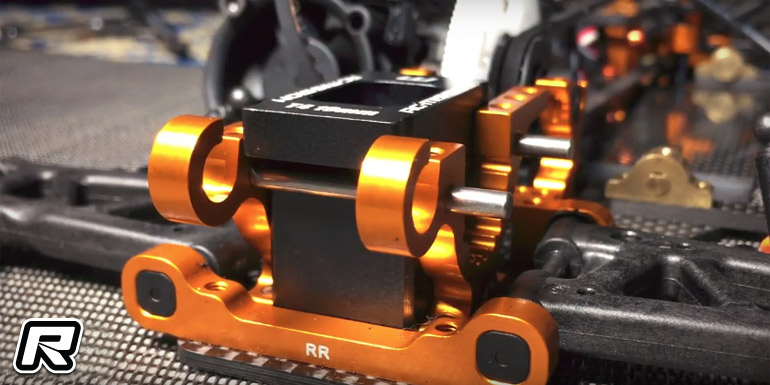

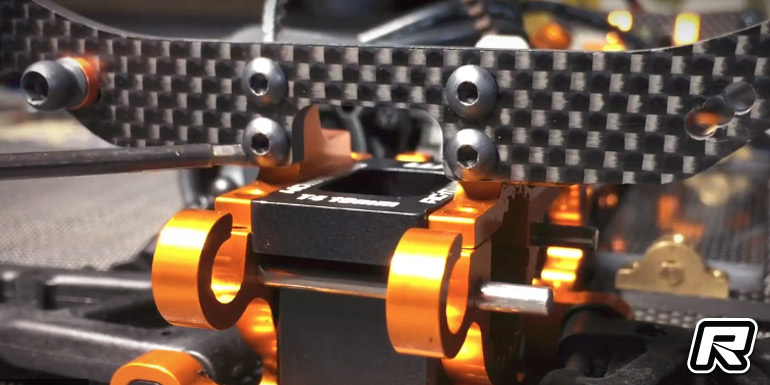

RC-Mission have introduced their new bulkhead alignment tool for the Xray T4 touring car and similar kits with 19mm bulkhead spacing. The alloy jig will be inserted between the left and right bulkhead with the included steel shafts further adding support to the assembly. With the block and pins in place the owner can now loosen and retighten both the lower bulkhead mounting screws and also the upper bulkhead and shock tower fasteners for perfect alignment of all parts involved. When all parts are straightened up, the pins and block will be removed, the diff or spool installed and the bulkhead covers attached. The tool is usable for all T4 platforms.

Source: RC-Mission []
