July 31, 2018

Serpent Spyder SDX4 Evo 1/10th 4WD buggy kit

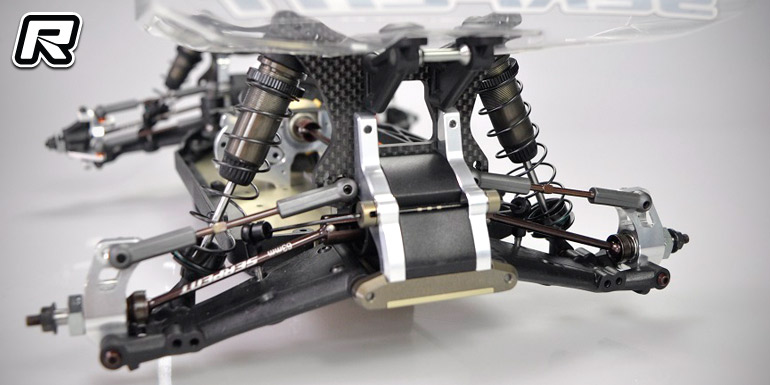

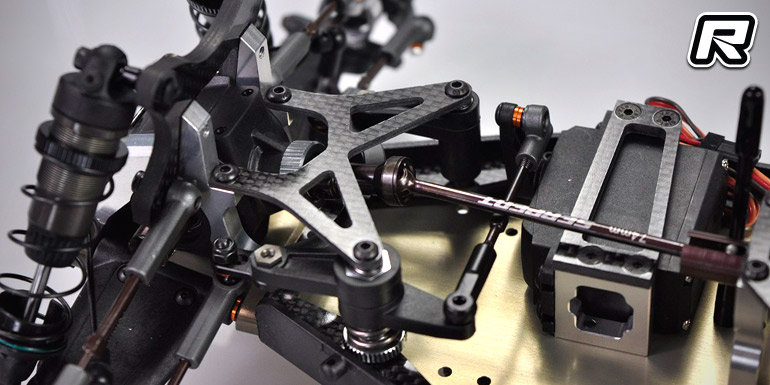

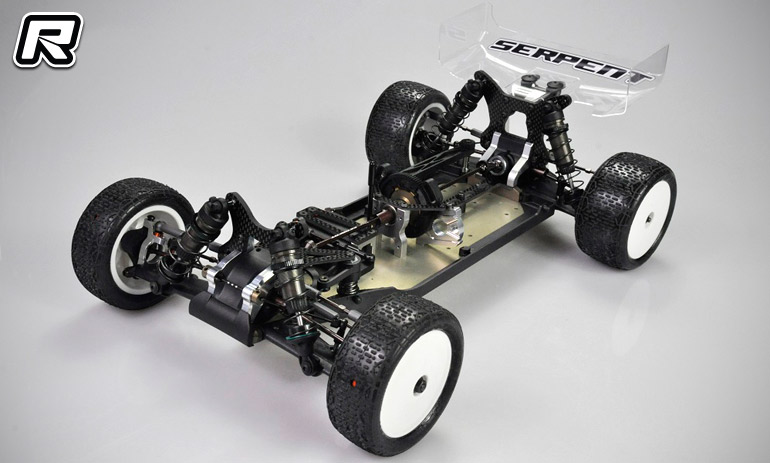

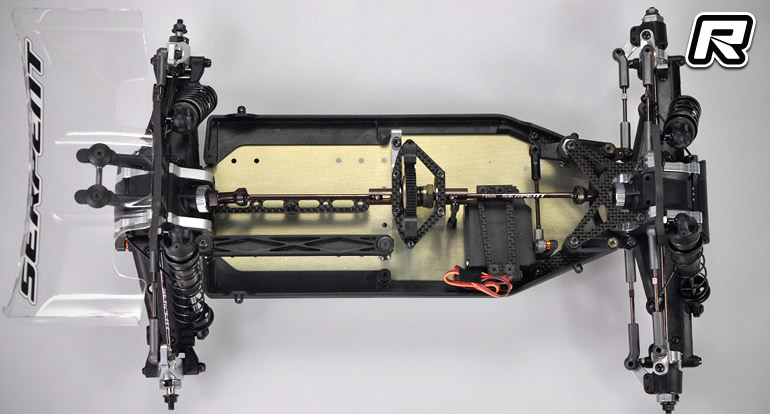

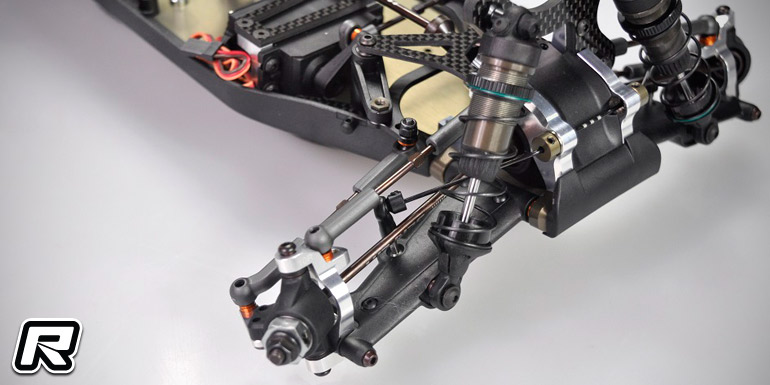

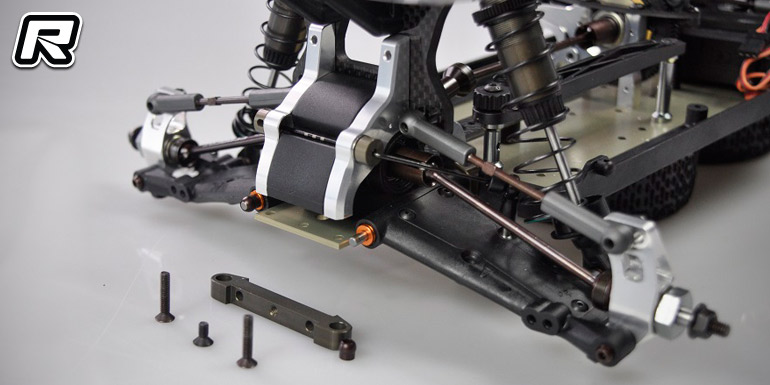

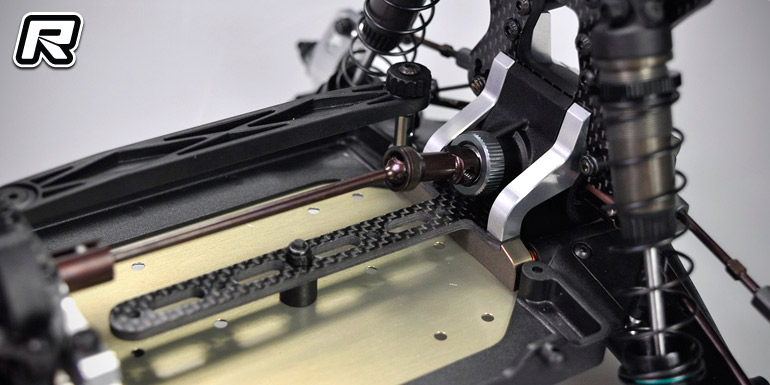

Serpent have introduced the Spyder SDX4 Evo 1/10th scale 4WD buggy kit. Based on the EFRA European Championship winning platform the Evo variant offers a refined design to ensure the buggy is ready to take all sorts of surfaces and track conditions. Motor, battery and speed controller can be mounted in a variety of locations, ensuring wide control over the buggy’s weight bias. The buggy builds on an aluminium main chassis and offers several features to fine-tune the chassis flex, such as a rear carbon fibre chassis stiffener. The 4WD shaft-drive train is equipped with quick-release differential cases, an aluminium motor mount and centre bulkhead as well as a carbon fibre upper diff plate. Alloy suspension brackets, 10° C-hubs, and 0° rear uprights ensure high durability while alloy shock absorbers with 3.2mm shock shafts, X-rings and moulded pistons soak up even harsh terrain. Other features include carbon fibre shock towers and servo mount, gear differentials, and new-style and material ball joins. The kit is rounded out by a sleek body shell and it will hit stores very soon.

Key features:
– Lightweight clamp fitted gear boxes
– Front and rear compact and light gear differentials
– 7075-T6 aluminium central diff/slipper holder and motor mount
– 7075-T6 aluminium bulkheads front and rear
– 7075-T6 aluminium 2mm hard-coated chassis and carbon stiffeners
– 7075-T6 aluminium 10 deg C-hubs
– 7075-T6 aluminium uprights, 0 deg L and R
– 7075-T6 aluminium hard-coated suspension brackets
– Closed-type suspension arms with optional carbon top-inserts
– Strong 3mm solid hinge pins with pivot balls
– Big bore 1/10 shocks with hard coated bodies can be used emulsion or membrane style
– Springsteel universal drive and central shafts
– Carbon shock towers
– Carbon chassis stiffener
– Carbon mid-section top-plate
– Carbon top steering bracket
– Carbon steering plate u-bracket
– Very low and sleek 4WD body and large, durable rear wing
– Top quality ball-bearings

Source: Serpent [serpent.com]
