July 12, 2018

Xray XB8 series 2-way flow Delrin shock pistons

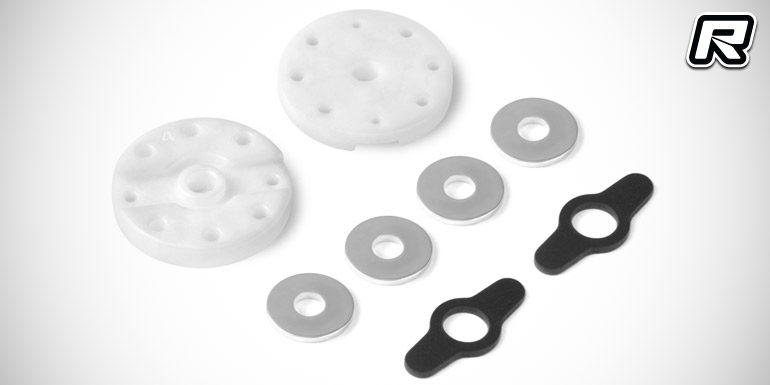

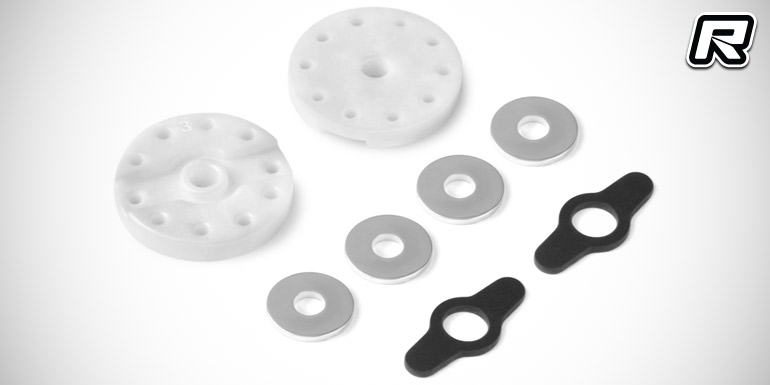

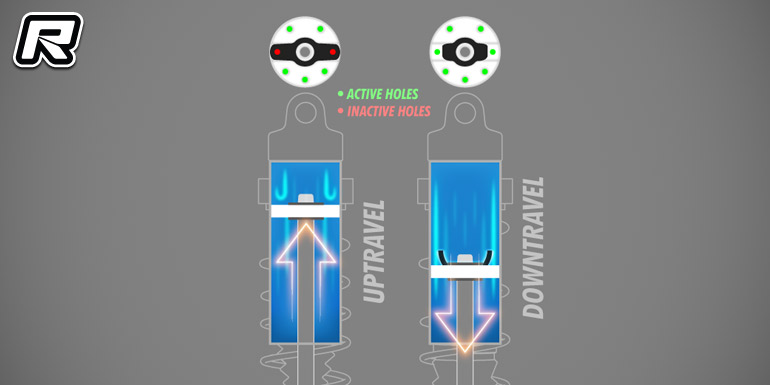

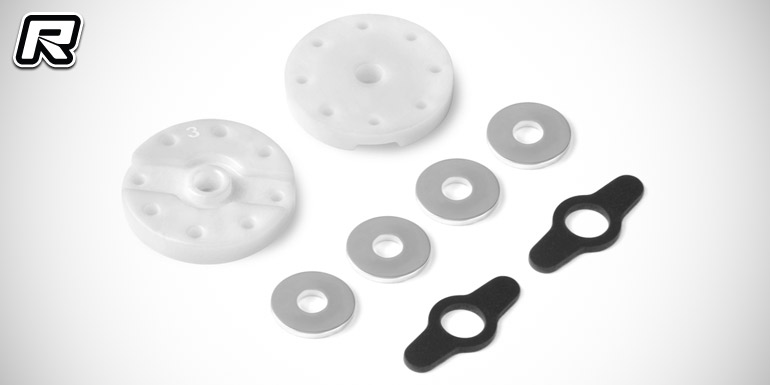

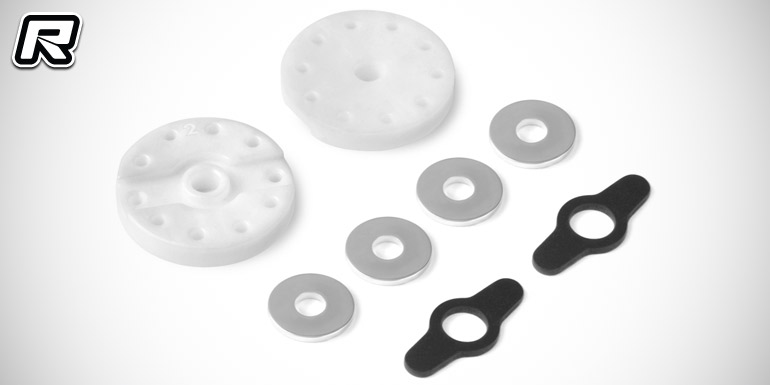

Xray have announced the release of their new 2-way flow Delrin shock pistons for the XB8 series of buggies, XT8 trucks and GTX on-road kits. The moulded pistons are of a special design with an additional rubber valve closing two of the given holes on up travel for increased pack of the dampers during compression. When the shock piston moved down again the rubber valves opens the two holes for quicker extraction. The result is increased stability upon landing or when tackling very rough terrain while the suspension returns quicker into normal ride height even when using a somewhat soft setup. The 2-way pistons are available in sets of two and as 5-hole, 6-hole or 8-hole variant and in the following specifications that you can view after the break.

#358027 2-Way Flow Delrin Shock Piston 5-H. (1.5mm) & 2-H. (1.0mm) (2)
#358028 2-Way Flow Delrin Shock Piston 6-H. (1.3mm) & 2-H. (1.1mm) (2)
#358029 2-Way Flow Delrin Shock Piston 6-H. (1.4mm) & 2-H. (1.1mm) (2)
#358030 2-Way Flow Delrin Shock Piston 8-H. (1.2mm) & 2-H. (1.2mm) (2)
#358031 2-Way Flow Delrin Shock Piston 8-H. (1.3mm) & 2-H. (1.2mm) (2)

Source: Xray [teamxray.com]
