August 3, 2018

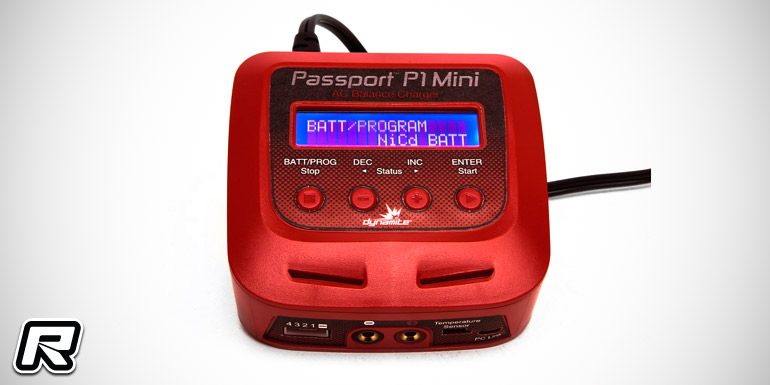

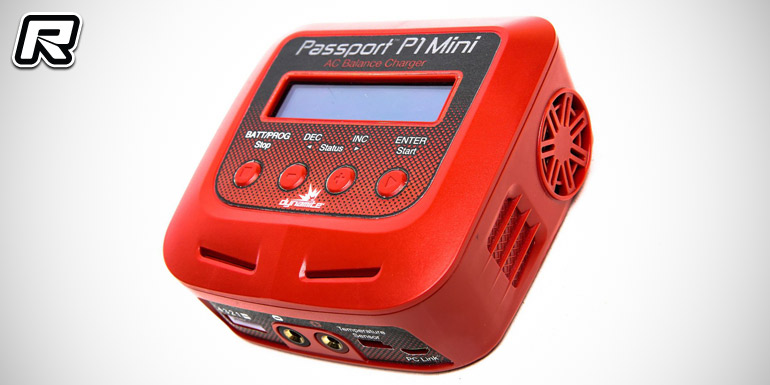

Dynamite Passport P1 Mini AC balance charger

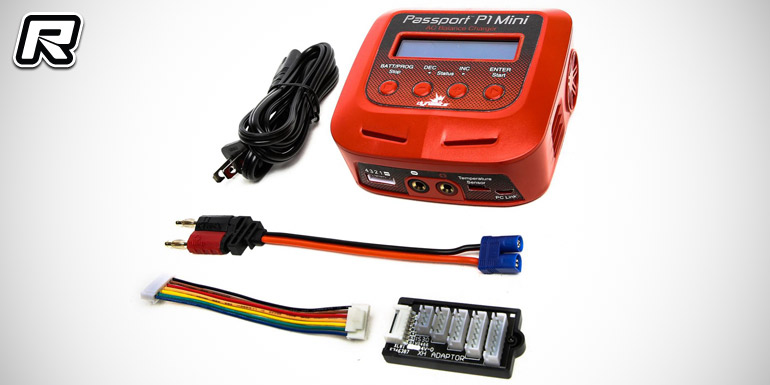

Coming from Horizon Hobby is the new Dynamite Passport P1 Mini AC-input balance charger and discharger. The affordable, durable and full-powered AC charger can be utilised for surface, air and marine RC charging purposes and features a wide range of selectable charge currents to fit any batteries’ needs. With 60W of charge power the device is capable of up to 6A of charge current and it features an internal balancer, banana-type output connectors and a back-lit display. Included with the charger comes a selection of adapters to fit a wide range of batteries.

Features:
– Mini 60W AC multi-charger
– Compact size and stylish design
– Charges LiPo, LiHV, LiFe NiMH/NiCd, and Pb batteries
– Charges 2-4 cell LiPo/ LiHV/LiFe, 6-8 cell NiMh/NiCd, and 6-12V Pb
– Terminal voltage control
– Re-peak mode for NiMH/NiCd battery
– Battery meter
– Battery internal resistance Meter
– PC Communications: USB port for PC control and firmware upgrades
– 5-year limited warranty

Specifications:
– Battery Type: 2-4 cell LiPo/ LiHV/LiFe, 6-8 cell NiMh/NiCd, and 6-12V Pb
– Input Voltage: 100-240V AC
– Integrated Balancing: Y – internal balancer & external adapter
– Maximum charge rate: 60W, 0.1-6A
– Output connector: Banana to EC3
– Selectable charge rate: Yes – Incremental (0.1A Increments)
– Length: 112mm
– Height: 52mm
– Width: 106mm
– Weight: 322g

Source: Horizon Hobby [horizonhobby.com]
