August 1, 2018

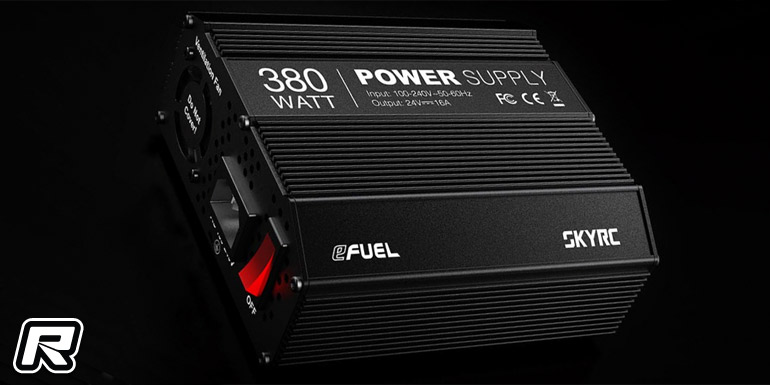

SkyRC eFuel 380 watt power supply

SkyRC have introduced their new eFuel 380 watt power supply that offers 24V output and up to 16A of current. The device measures a compact 165x139x59.5mm and weighs in at 1.6kg while offering a wide range of safety features such as output short circuit, over current, over temperature, overload and over voltage protection. It its 24V and 16A output the power supply is able to feed even power hungry chargers and thanks to its built-in XT60 output connector it is a direct fit for the recently introduced B6 Nano charger.

– Case Size: 165x139x59.5mm
– Weight: 1.62kg
– Voltage: 100-240V
– Input AC frequency: 50-60Hz
– Output current: 16A
– Output voltage: 24V DC±0.5V
– Output voltage Ripple: <300mV
– Power efficiency: 88%
– Power factor: >0.98
– Current overload protection: 17A ±1A
– Over temperature protection: <80°C
– Cooling method: Cooling fan
– Operating temperature: 0-40°C
– Operating humidity: 0-90%

Source: SkyRC []
