September 21, 2018

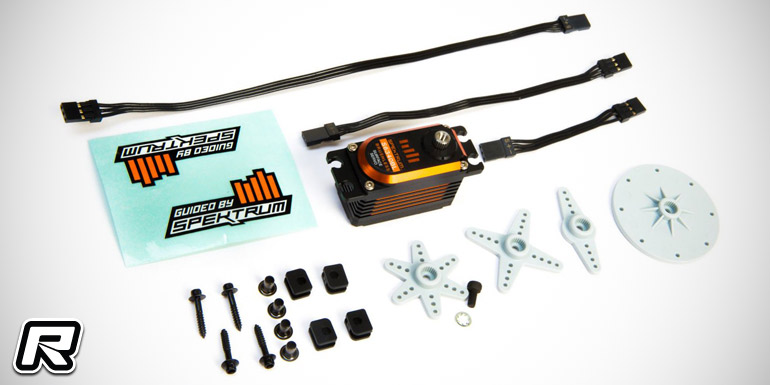

Spektrum S6340BL HV low-profile aluminium servo

Spektrum have introduced their new top-of-the-foodchain low-profile servo for 1/10th scale applications. It offers a quick 0.07s of transit time and a torque of 17.4kg-cm at 8.4V input and finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra performance. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminium case provides durability and heat dissipation while precision metal gears ensure hassle-free control. Over-current and over-temperature protection round out the package.

– Dimensions: 29.7×41.4×20.8mm
– Weight: 62g
– Speed: 0.087s/60 @6.0V, 0.077s/60 @6.6V, 0.076s/60@ 7.4V, 0.070s/60 @8.4V
– Torque: 12.4kg-cm @6.0V, 13.7kg-cm @6.6V, 15.4kg-cm @7.4V, 17.4kg-cm @8.4V
– Bearings: Dual
– Motor type: Brushless
– Servo type: Digital

Source: Horizon Hobby []
