October 10, 2018

Ultimate Pro-10 dual touch AC/DC charger

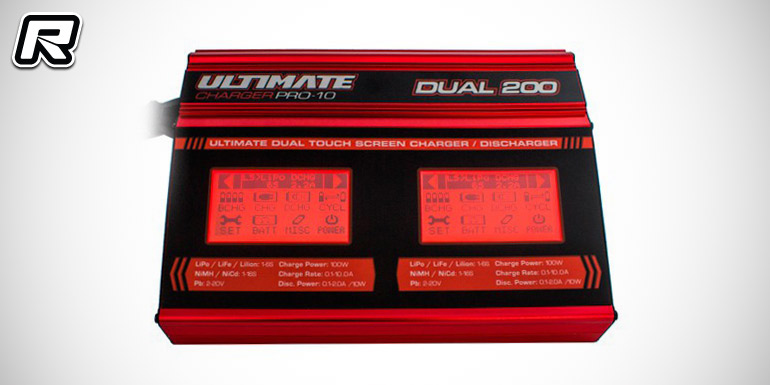

Modelix Racing have introduced the new Ultimate Pro-10 dual touch AC/DC charger. Offering two 100W outputs the device is good for up to 10A of charging current and it features two backlit LC touch displays, individual cell balancing, fast charge and storage modes, as well as input power monitoring. The charger is housed in a sturdy red and black anodised aluminium case and it is available now.

Features:
– Dual power built-in AC adapter
– Internal independent lithium battery balancer
– Individual cell balance discharging
– Fast charge and storage modes for various type of battery
– Maximum safety
– Automatic charging current limit
– Input power monitoring
– Capacity limit
– Temperature monitoring with programmable switch-off
– Temperature threshold
– Processing time limit
– Data store/load
– Supports LiXX, NiMh, NiCd and lead battery packs

Specifications:
– Operating voltage range: DC 11~18V / AC 220~230V
– Charging current: 0.1~10.0A (Max. 100Wx2, total 200W
– Discharge current: 0.1~2.0A (Max. 10Wx2, total 20W
– Balance current: 300mAh/cell
– Compatible batteries: LiPo, LiFe, LiIon, NiCD, NiMH, Pb, LiHV
– Dimensions: 225x170x58mm
– Weight: 1.016kg

Source: Modelix Racing [modelixracing.com]
