November 30, 2018

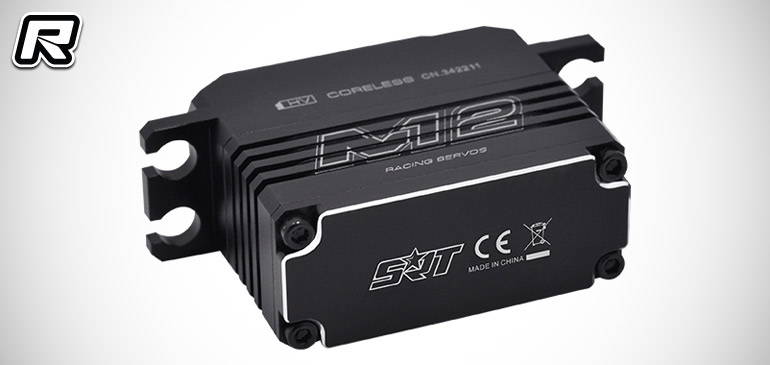

SRT M12 1/12th scale servo

SRT have introduced their new M12 servo for 1/12th pan car applications. The servo is housed in a black anodised all-aluminium case and it features a high-quality coreless motor, dual ball bearings and a copper and aluminium geartrain. It is usable with 6V to 8.4V input and pulls up to 11kg-cm or torque at a speed of town to 0.065s.

– Type: Digital
– Bearing: Dual
– Motor Type: Coreless
– Gear Material: Copper & aluminium
– Operating Voltage: DC 6.0-8.4V
– Speed (6.0V): 0.08 sec/60 degrees
– Speed (7.4V): 0.075 sec/60 degrees
– Speed (8.4V): 0.065 sec/60 degrees
– Torque (6.0V): 6.5kg-cm
– Torque (7.4V): 9.5kg-cm
– Torque (8.4V): 11.0kg-cm
– Dimensions: 35.0×15.1×29.5mm
– Weight: 35.g

Source: SRT []
