December 11, 2018

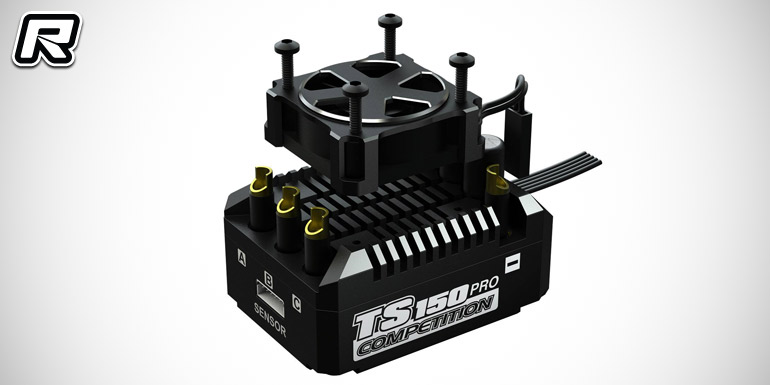

SkyRC Toro TS150 Pro 1/8th speed controller

Coming soon from SkyRC is their new Toro TS150 Pro brushless speed controller for 1/8th scale vehicles. Designed for buggies, trucks and monster trucks but also usable for 1/8th on-road kits, the 150A-rated controller offers an aluminium heatsink case, a 6V high-power BEC system with up to 8A, as well as a multitude of software features that include adjustable timing as well as throttle and brake curve adjustment to name just a few. The controller is adjustable using SkyRC’s Progbox or WiFi module and it comes including a heavy duty fan unit that is meant to be a lot more durable compared to standard fans – even when running in demanding track conditions and on track with large jumps.

– Constant/burst current: 150A/950A
– Motors: Brushless sensored & sensorless
– Classes: 1/8 Buggy, Truck and Monster
– Motor limits: 2-4S LiPo KV≤3000, 2-6 poles and 2-6S LiPo KV≤2400, 2-4 poles
– Resistance: 0.0002ohm
– Battery cell count: 6-18S NiMH or 2-6S LiPo
– BEC output: 6V @5A
– Fan: 5V @0.3A
– Weight: 123g (without wire)
– Size: 58x41x38mm

Source: SkyRC []
