December 21, 2018

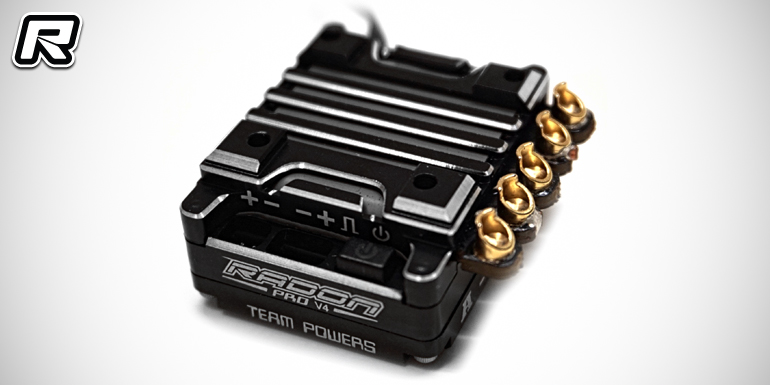

Team Powers Radon Pro V4 brushless speed controller

Coming soon from Team Powers is the Radon Pro V4 brushless speed controller. The 200A-rated ESC features new hardware in the form of higher power FETs for a lower internal resistance and thus increased power supply and lower running temperatures. At 17mm the new aluminium case is 2mm lower than the previous version while also scrubbing about six percent of weight. A new PCB layout design improves stability and reliability and the included new firmware provides the ability to access pre-defined software features – such as limiter, throttle rate, RPM lock, brake limit and throttle settings – using a third or fourth radio channel. Furthermore the controller comes with a 6V/7.4V 5A high-performance BEC system to support power-hungry servos.

– Controls: Forward/Brake/Reverse
– Input voltage: 2S-3S LiPo
– BEC: 6V/7.4V, max. ~5A
– Motor limit: >4.0T
– Max current: ~200A per phase
– Size: ~38x30x17mm
– Weight: ~37g (w/o wires/fan)

– Ultra-smooth, precise throttle and braking control
– Compatible with sensored/sensorless brushless motors
– Data analysis capability (RPM, low voltage and ESC temperature)
– PC interface for advanced programming and updating
– Easily programming through optional program card
– Built-in one touch on/off switch with LED
– Built-in Low voltage cut-off, overheat protection and signal loss protection
