January 15, 2019

RC Maker TC bellcrank ackermann shim plates

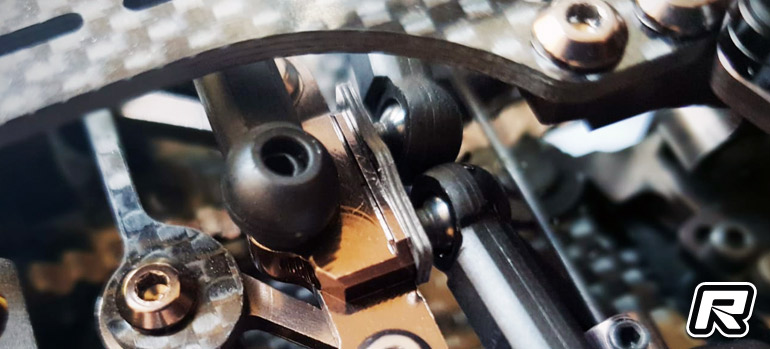

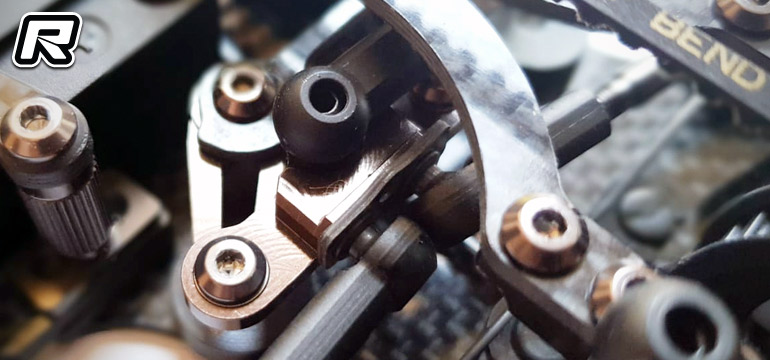

New from RC Maker are these simple ackermann plates which slide into the bell crank steering on most cars and allow to change the ackermann geometry without totally unscrewing the ball studs to install a shim, which can be a fiddly job. They install by simply loosening the ball studs and sliding the plates in or out and tightening. The set consists of two plates, one 0.5mm and one 1mm, allowing to tune your the steering ackermann from 0.5-1.5mm in 0.5mm increments. These fit the Xray T4, Yokomo BD9, Infinity IF14, Awesomatix A800X, ARC R11 and any other car with bell crank ballstud spacing of 8.0-8.5mm.

Source: RC Maker [rcmaker.com.au]
