February 15, 2019

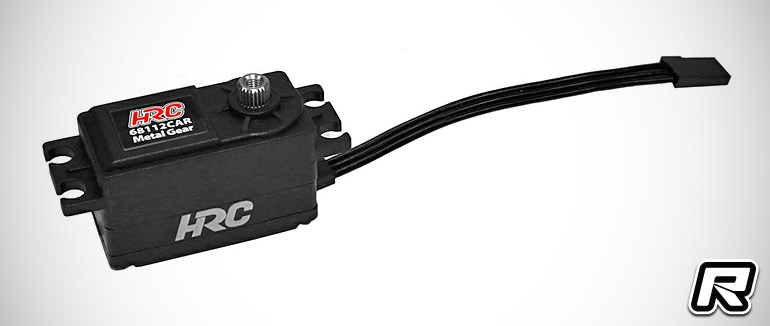

HRC Racing 68112CAR low profile servo

HRC Distribution have introduced the new HRC Racing HRC 68112CAR low profile servo. The high-voltage compatible servo features dual ball bearings, metal gears, an aluminium middle heatsink section and it offers up to 13kg-cm of torque at a speed of down to 0.04s thanks to a powerful brushless motor. The servo comes equipped with an 80mm all-black receiver wire and it is available now.

Specifications:
– Voltage: 6.0-8.4V
– Motor type: Brushless
– Signal type: Digital
– Bearings: Double ball bearings
– Gear: Metal gear
– Servo arm: 25 spline
– Torque: 9kg-cm @6.0V, 12kg-cm @7.4V, 13kg-cm @8.4V
– Speed: 0.06s/60° @6.0V, 0.05s/60° @7.4V, 0.04s/60° @8.4V
– Dimensions: 40.5×26.0x20.0mm
– Weight: 45g
– Case: Nylon fibre and aluminium, waterproof
– Cable: 22AWG heavy duty 80mm short cable
– Connector: Uni plug

Source: HRC Distribution [hrcdistribution.com]
