February 7, 2019

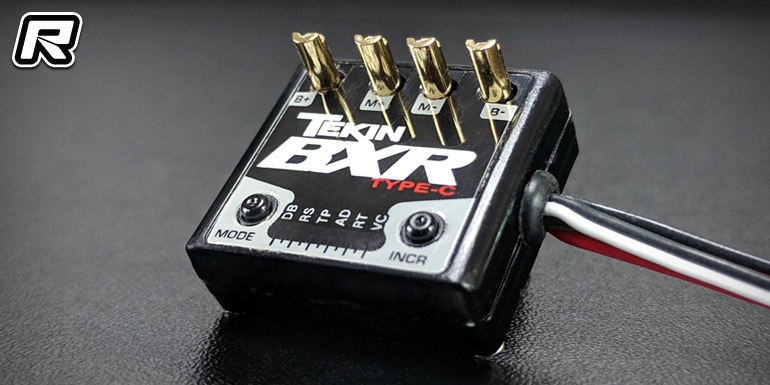

Tekin BXR rock crawling speed controller

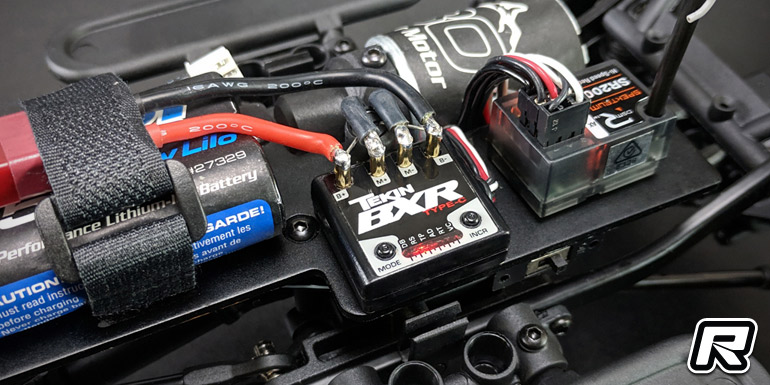

Tekin have introduced their new element-proof BXR brushed speed controller for small tyre scale vehicles. Features like third channel input for on-the-fly drag brake adjustments and the company’s exclusive active drag brake technology make the BXR the perfect scale crawler solution. The element-proof design allows to hit the trails with confidence no matter the weather. The 3S LiPo compatible controller is usable with motors down to 20T and its compact dimensions make installation even in crowded surroundings easy. On-board programming, a powerful BEC system and Hotwire compatibility round out the package.

– Controls: Forward/Brake/Reverse
– Input voltage: 2S-3S LiPo/4-9S NiMH-NiCD
– Motor limit 2S LiPo: 20T 540 brushed
– Motor limit 3S LiPo: 30T 540 brushed
– Max Current: 60A
– BEC: 5.0V @ 3.7A on 2S LiPo
– Dimensions: 25.4×23.6x9mm
– Weight: 11g

– 3rd channel input for on-the-fly drag brake adjustments
– Super small footprint
– New HD easy solder gold-plated posts
– Element-proof design
– Active drag brake system
– QuickTune programming
– One-touch radio calibration
– Easily access programming
– HotWire compatible for advanced programming and updates
– On-board temperature indicator
– Self test diagnostics with error codes
– Fully proportional Forward/Brake/Reverse
– LiPo safe with custom voltage cutoffs
– DGF2: Digital glitch filtering V2
– HDAC: High density copper PCBs
– Ultra-smooth and precise throttle and braking control

Source: Tekin [teamtekin.com]
