April 26, 2019

RC Maker A800 long arm roll centre shim plate set

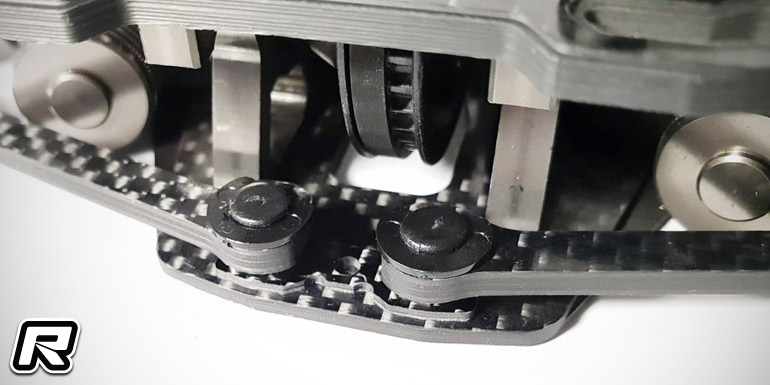

Coming from RC Maker is a new roll centre shim plate set for A800 cars using the optional long arms. Consisting of two different thicknesses of 0.5 and 1mm, the set allows tuning from 0.5 to 1.5mm which covers the normal range for Awesomatix cars. The plates also have a front and a rear, with cutouts to distinguish them, due to the hole spacing being wider in the front. They slide in without the removal of your screw, allowing to slide out the old and in the new in a matter of seconds. Once the plate is installed simply tighten as normal. The plates work in the outer as well as the inner positions and the central hole allows easy removal by inserting a 1.5mm driver and sliding them out from the top. The shims are only usable on A800 cars using the LA +9.0 and +8.0 arms and the set includes four 0.5mm and four 1.0mm thickness shims.

Source: RC Maker [rcmaker.com.au]
