May 15, 2019

Exotek TLR22 5.0 alloy adjustable rear hub set

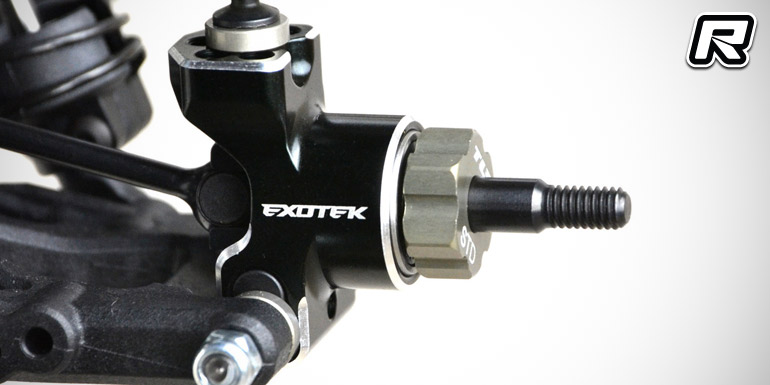

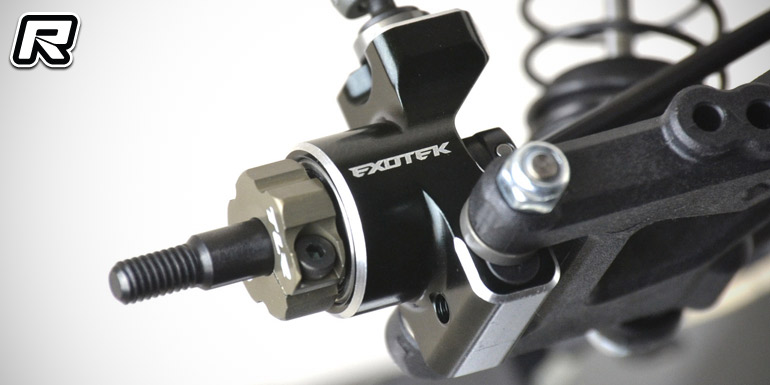

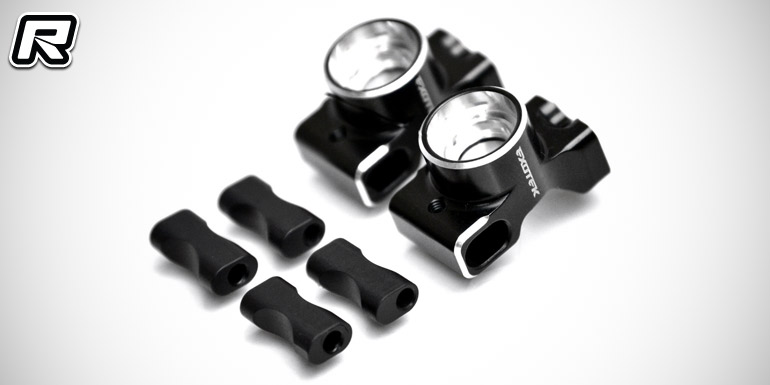

Coming from Exotek and made for the TLR22 5.0 is an aluminium adjustable alloy rear hub set. The set includes precision machined delrin hub height inserts that allows to set the hinge pin at stock level or raise the hub in 1mm increments for +1, +2, and +3 settings. Tested with team driver feedback, this is a key tuning aid for matching the adjustable differential height as it keeps the axle and bones level when raising or lowering the diff height inserts, making it easier to lower the ride height for high grip conditions. The set is a direct bolt on to the 22 5.0, and 4.0 etc with 67mm bones, with no other modifications or additional parts needed. The default setting matches the 22 5.0 stock geometry, however the two rearmost ball stud holes have been removed as these are rarely used. The hubs also allow for the full wheelbase adjustments similar to the stock hubs. The all-7075 alloy hub construction comes polished and with a black and silver chamfer finish with four machined delrin inserts included and it only weighs one gram more than the hub it replaces.

Source: Exotek [exotekracing.com]
