July 18, 2019

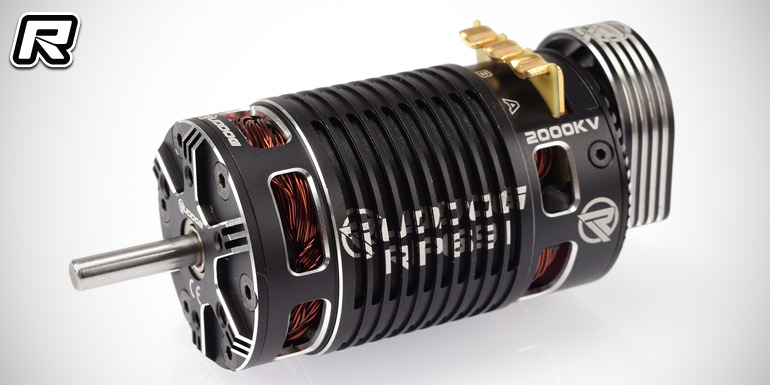

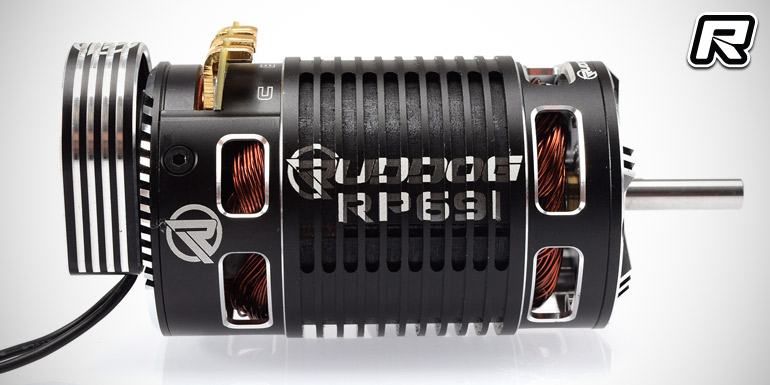

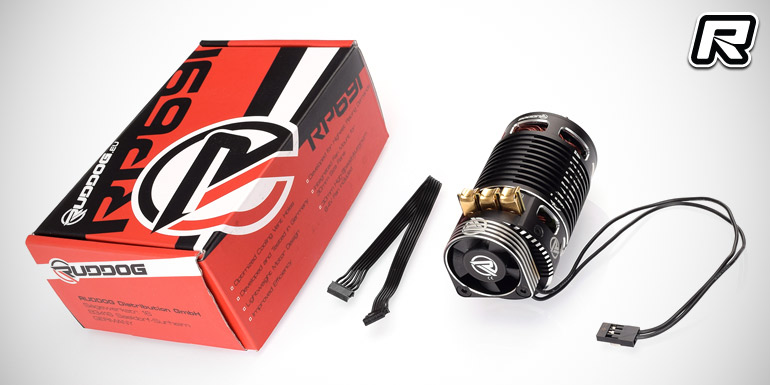

Ruddog RP691 1/8 sensored competition BL motor

Coming from Ruddog is their all-new RP691 sensored competition brushless motor for 1/8th scale applications. Developed and designed in Germany, it features a unique cooling system, which not only includes optimised cooling vents, but also a direct mount high-speed aluminium fan. The motor features a lightweight design of just 307g and is available in KV ratings of 1800kV up to 2400kV.

– Engineered and designed in Germany
– Latest state of the art technology

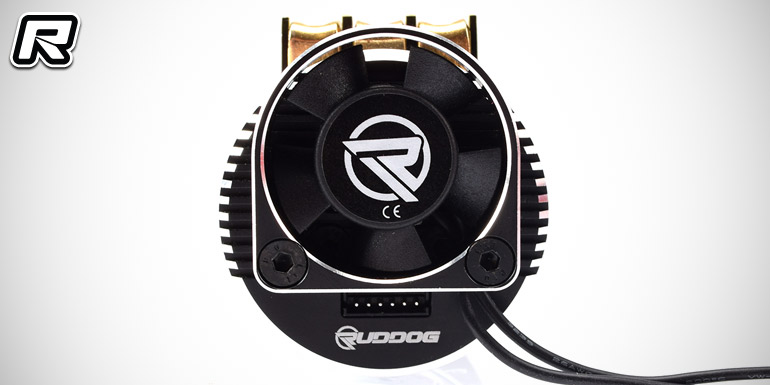

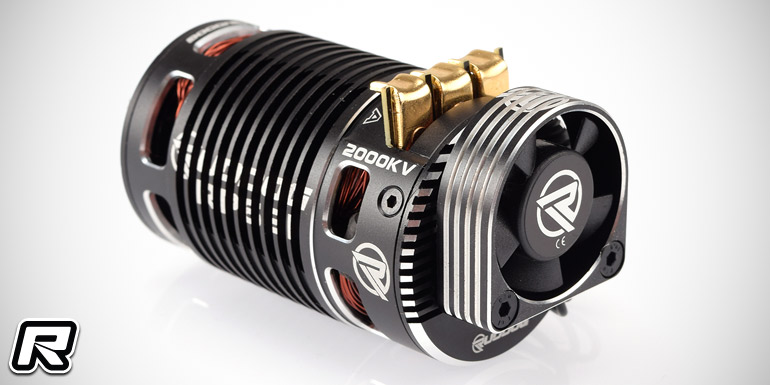

– Direct fan mount
– 30mm aluminium high speed HV cooling fan included
– Optimised cooling vents
– Lightweight design (just 307g without fan)
– M3 and M4 mounting holes
– Available in 1800KV, 2000KV, 2200KV and 2400KV

– Weight with fan: 321g
– Weight without fan: 307g
– Shaft: 5x19mm
– Motor diameter: 40mm
– Motor diameter with fins: 42mm
– Motor length: 69mm
– Motor length with fan: 80mm
– Input voltage: 2-6S LiPo/LiHV
– Sensored: yes
– Application: 1/8 Buggy and Truck

Source: Ruddog [ruddog.eu]
