August 27, 2019

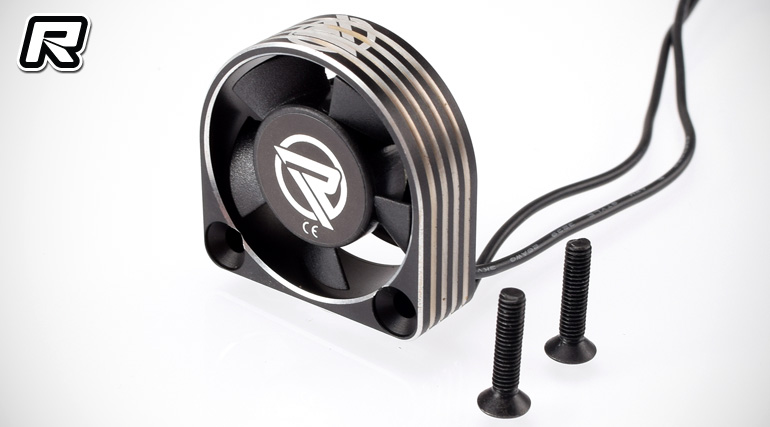

Ruddog 30mm aluminium HV high speed cooling fan

New from Ruddog comes this 30mm aluminium HV high speed cooling fan, developed especially for the needs of RC car racing. Designed in Germany, the fan features a unique design, which not only looks great, but also saves space under the body. The high-speed fan is suitable for LiHV batteries and can be used up to 8.7V. It comes with a 200mm long black wire with a laser marked JR style receiver plug.

Features:
– Unique Aluminium Fan Case
– Designed in Germany
– Ultra High Speed
– Dual Ball Bearing
– Including M3x14mm Mounting Screws

Specifications:
Voltage: 6.0 to 8.7V
Dimensions: 31x31x11mm
Mounting holes: Standard 24mm distance for the two mounting holes (same
as any other 30mm fan on the market)
Weight: 12.5g
Connector: JR Plug
Bearings: Dual Ball Bearings
RPM: 29.000 @ 8.4V

Source: Ruddog [ruddog.eu]
