September 11, 2019

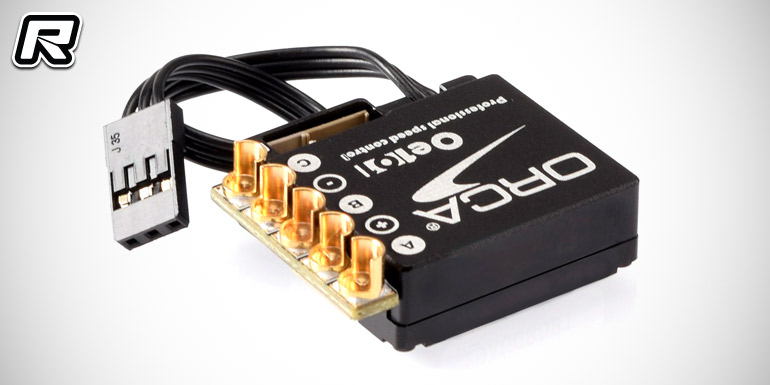

ORCA OE101 Slim stock racing brushless ESC

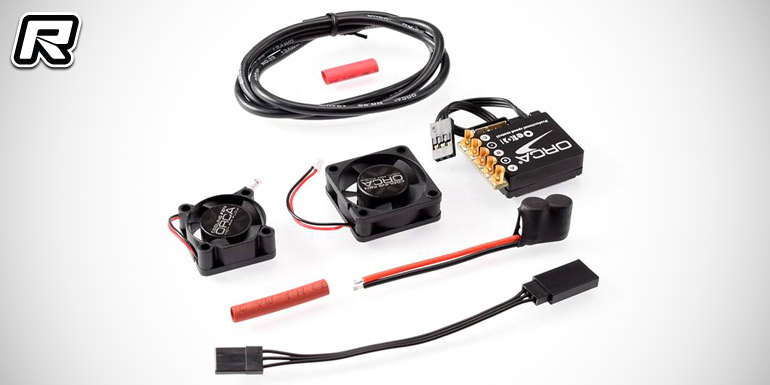

ORCA have announced the release of their new OE101 Slim stock racing brushless speed controller. Measuring 30.45×30.35×10.35mm and weighing in at 20.8g the controller is both compact and lightweight, making it ideal for all weight fanatics or when using the speedo in crowded chassis layouts. The controller is 2S LiPo compatible, it has a 10.5T motor limit and it is highly adjustable – including a new “Party Mode” – using ORCA’s optional programming box. Included with the controller comes a 25mm and a 30mm cooling fan, all black power wires, a small capacitor unit as well as an extension wire.

Specifications:
– Dimensions: 30.45×30.35×10.35mm
– Weight: 20.8g
– Voltage input: 6-11V
– Peak current: 280A
– Continuous current: 100A
– Motor Limit: over 10.5T
– Motor type: Sensored 540 size brushless motors
– BEC: 4A 6V/7.2V adjustable

Source: ORCA [orcarc.com] | Image: Ruddog Distribution [ruddog.eu]
