October 2, 2019

Hiro Factory HRF10X-PB Premium Blacky formula kit

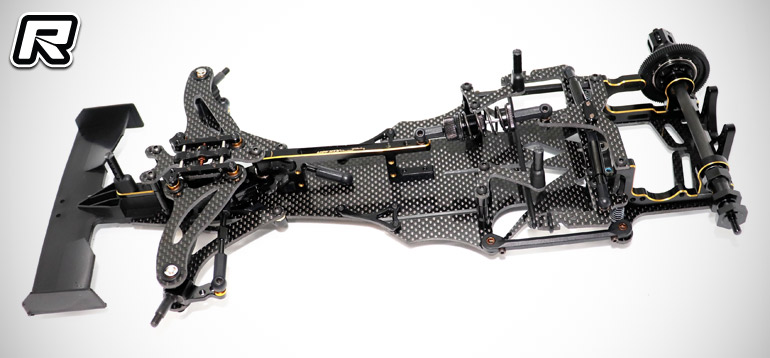

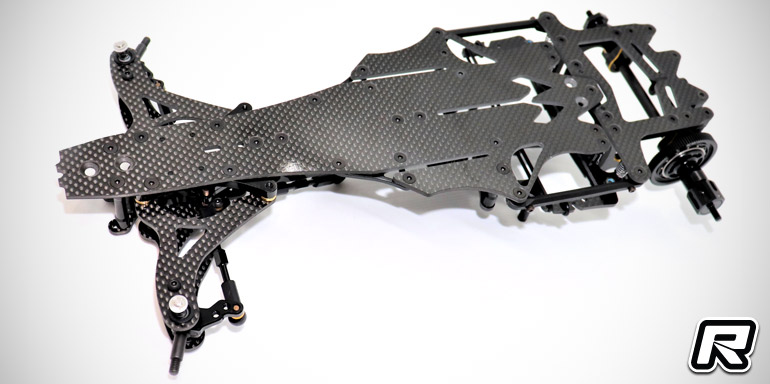

Japanese brand Hiro Factory has introduced the new HRF10X-PB Premium Blacky 1/10th formula kit. The car builds on a premium hard carbon fibre main chassis plate and it features the newly developed C-ADJ-S camber and caster system up front that allows to adjust both parameters without the need to change parts, making it swift, easy and reliable. The aluminium servo mount doubles as a chassis stiffener brace and two aluminium triangles enable the racer to adjust the front-centre chassis stiffness. The steering arm design allows to adjust the steering Ackermann to vary the amount of steering available and an O-ring retained battery mount ensures the battery can be swapped without the need for additional tools. Other features include a high-capacity centre shock absorber, all-aluminium precision tube dampers as well as an aluminium ADJ roll plate to adjust overall chassis roll. The rear of the car houses the carbon fibre rear axle, and the ball differential with centre lock type left wheel hub and lightweight right wheel hub. A motor cooling fan mount and height adjustable wing mount round out the package. The car is usable with rubber and foam tyres and it can be built in narrow or wide track specification.

Features:
– Black aluminium parts with gold colour accents
– Built using high quality 7075-T6 aluminium and high quality hard carbon
– Usable with wide and narrow track settings

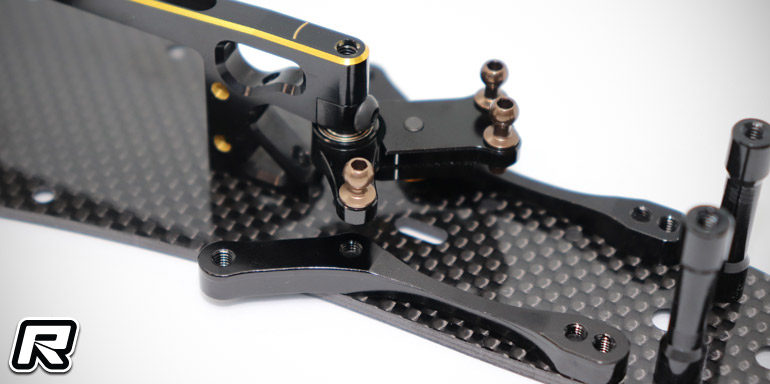

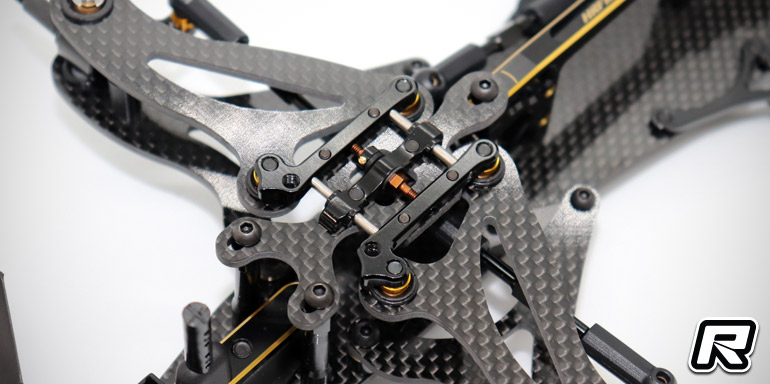

– World’s first caster and camber adjustment system C-ADJ-S installed
– Aluminium chassis brace for increased rigidity around the front
– Aluminium knuckle & trail selectable axle shaft with the thinnest design

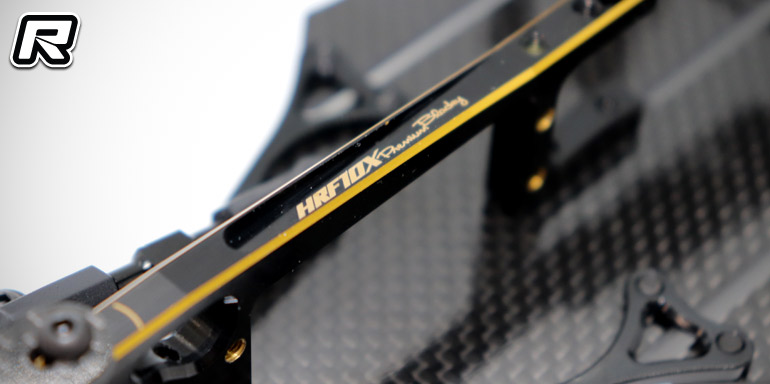

– Aluminium servo mount doubles as chassis stiffener
– Aluminium steering arm with adjustable Ackermann
– Aluminium roll ADJ plate to adjust chassis roll

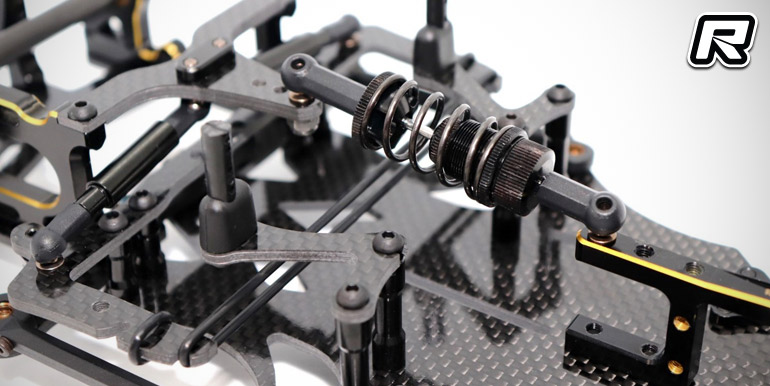

– Oil-type aluminium centre damper
– All-aluminium high precision tube damper

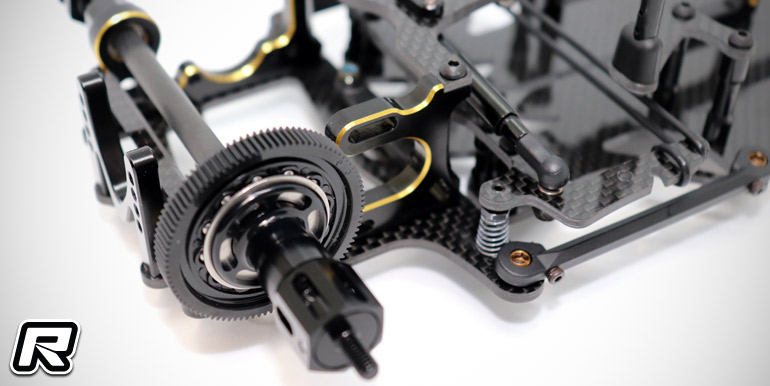

– Carbon differential axle with differential lock system

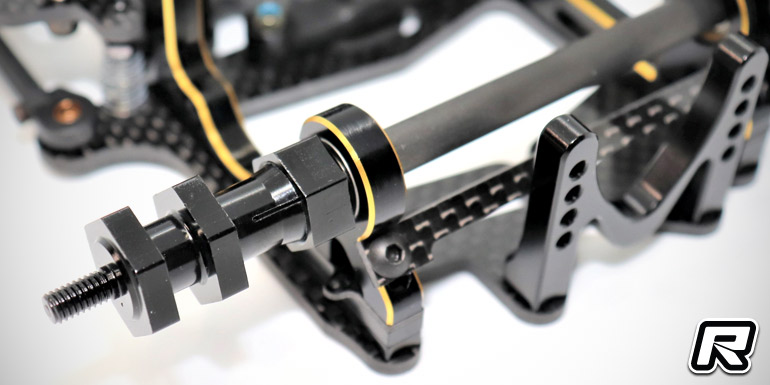

– Centre lock type rear left wheel hub
– Lightweight right wheel hub
– Cooling fan mount
– Height-adjustable aluminium rear wing mount
– O-ring battery mounting

Source: Hiro Factory [hirofactory.jp]
