October 2, 2019

Reds Racing M7 WCX Pro Tuned .21 on-road engine

Reds Racing have introduced the new M7 WCX Pro Tuned 3.5cc 1/8th on-road engine. Considered to be the company’s top of the food chain on-road engine, the power plant was developed over the course of a year with input of team drivers and distributors. The engine has been specifically developed for people looking for the same speed and specs as used by Pro Factory Team drivers and so the WCX Pro Tuned is based on M7 WCX engine with additional hand-made finishing touches to the sleeve and crankshaft in order to obtain improved fluid dynamics efficiency while the modified timing ensures even greater power output. The engine is totally hand-inspected and tuned by Mario Rossi himself and will become available very soon.

– Category: 1/8 on-road
– Displacement: 3.5cc
– Bore: 16.04mm
– Stroke: 17.32mm
– Weight: 310g
– Front ball bearing 7x19x6mm – rubber seal – made in Japan
– Rear ball bearing 14×25.4×6 – hybrid ceramic – made in Switzerland
– Carburetor: 2-needle setting 9.0 (8.0, 8.5 optional)

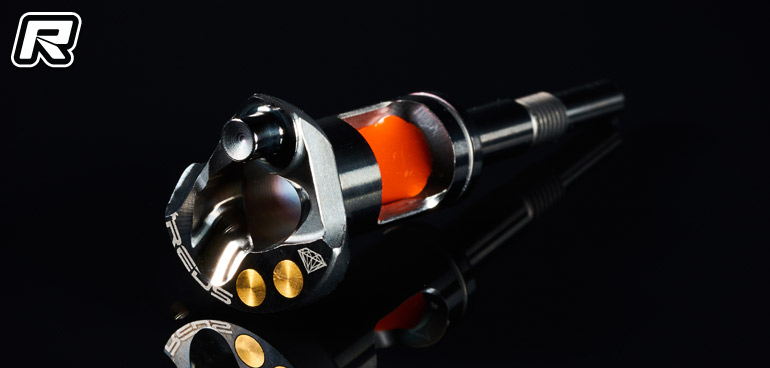

– Crankshaft: DLC-coated, tuned fluid dynamics and timing

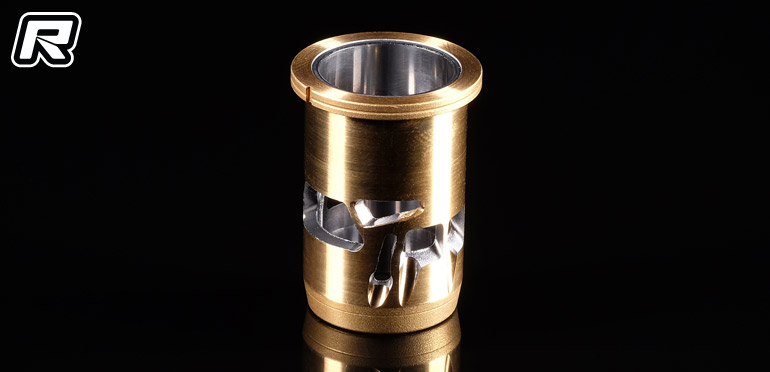

– Sleeve: 7 inlet ports, 3 outlets ports, tuned fluid dynamics and timing
– Backplate: DLC-coated
– Glow plug: TS7
– Hard-tuned and assembled by Mario Rossi
– Recommended exhaust: EFRA 2113 + M manifold

Source: Reds Racing [redsracing.it]
