December 23, 2019

Rebellion-RC T4 FWD conversion kits

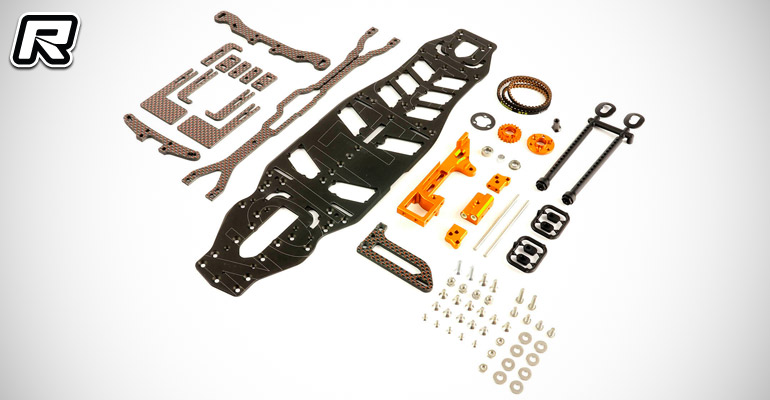

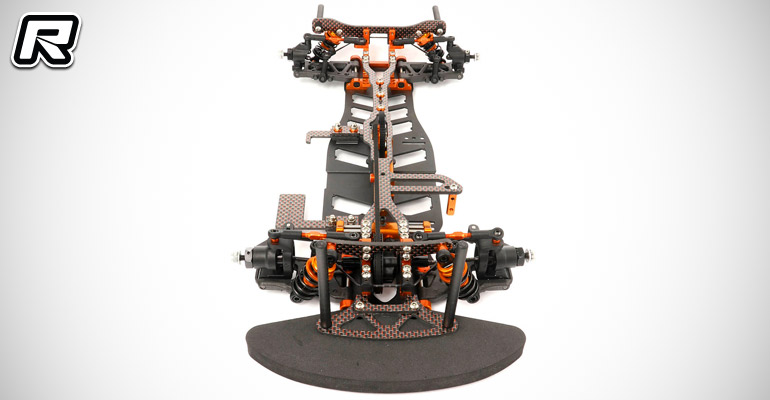

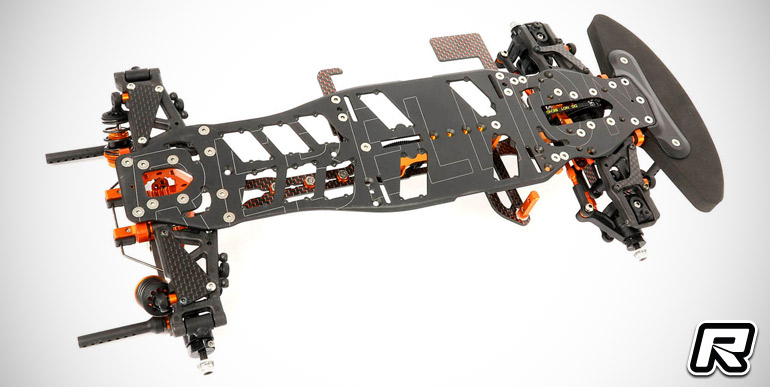

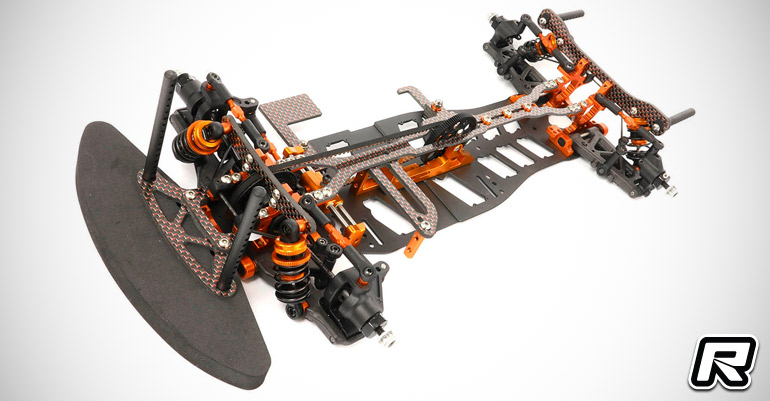

Coming from RC-Carbonstore’s Rebellion-RC brand is a FWD chassis conversion kit for the Xray T4 touring car. Developed for the use with 2019 down to 2013 variants of the ultra-popular touring car, the conversion includes a new single-piece machined aluminium motor and servo mount with integrated flex adjustments, an ultra-precise stainless steel main shaft, a new servo bridge for optimised servo positioning, a newly developed slider steering assembly, and two types of battery mounts for easy balance adjusting. Also included are the machined spur gear mount and centre pulley, and a unique rear body stay mount that utilises Xray X1 caster inserts to allow for easy body height adjustments. The conversion kit is available including a carbon fibre or Rebellion-RC’s signature CrossFlex aluminium chassis, the latter allows for easy weight balance and torsional flex adjustments using optional brass inserts. To suit pretty much all versions of the pre-2020 T4 chassis, the conversion is available with three different shock tower specifications.

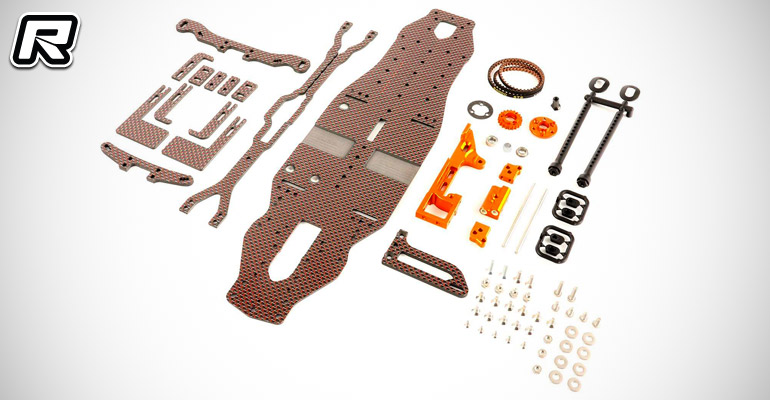

– Alu CrossFlex and carbon chassis kits available

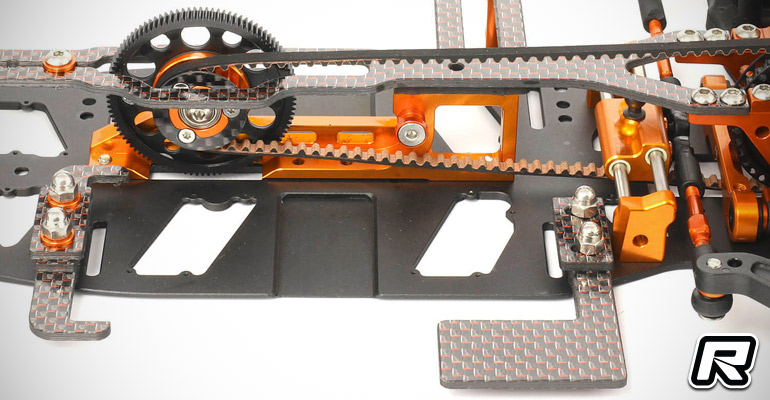

– All-new single piece motor/servo mount
– Ultra low center of gravity
– Fully adjustable “pizza holder” and standard style battery holder included for easy balance adjustment

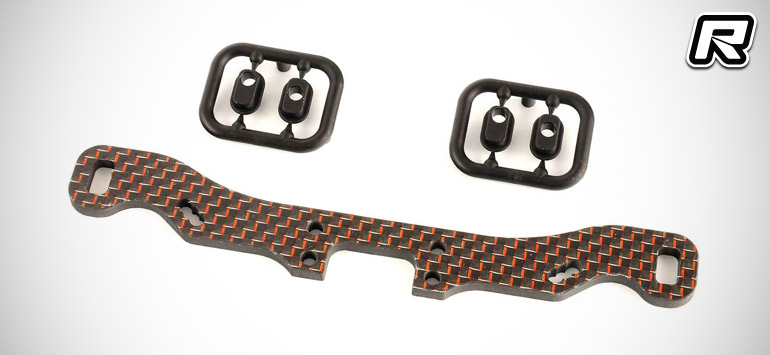

– Unique rear body hight adjustment by using Xray X1 caster inserts

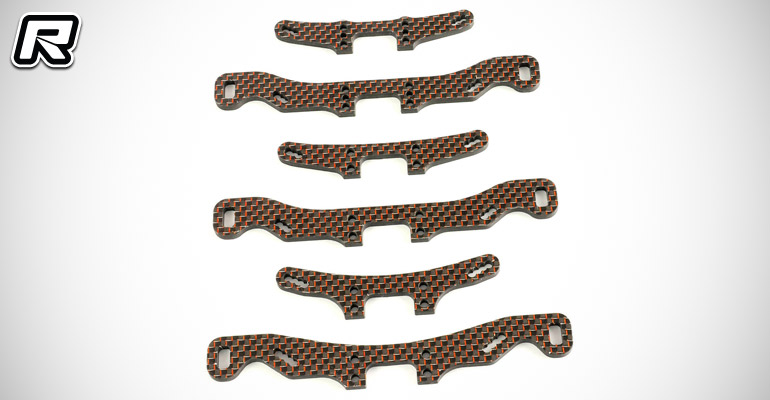

– 3 different shock tower pairs available to fit T4 (´13)´14-´17/´18/´19
– Stainless steel main shaft with 0,01mm tolerance for highest precision

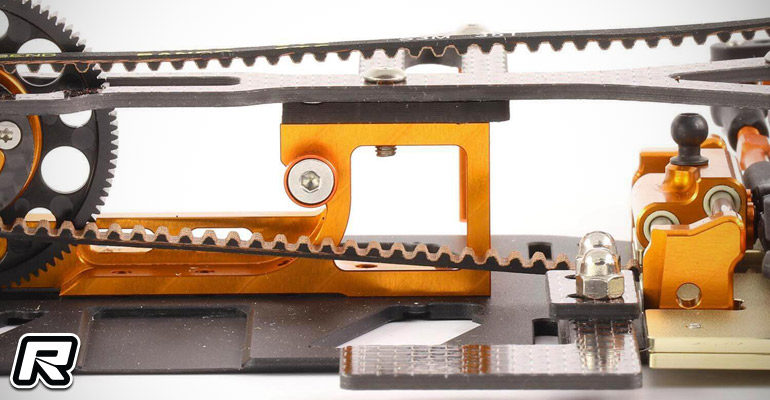

– Integrated flex adjusting by using 6 screws in motor mount (min. 2 required)
– 2 upperdeck chassis stiffener positions for perfect fine-tuning

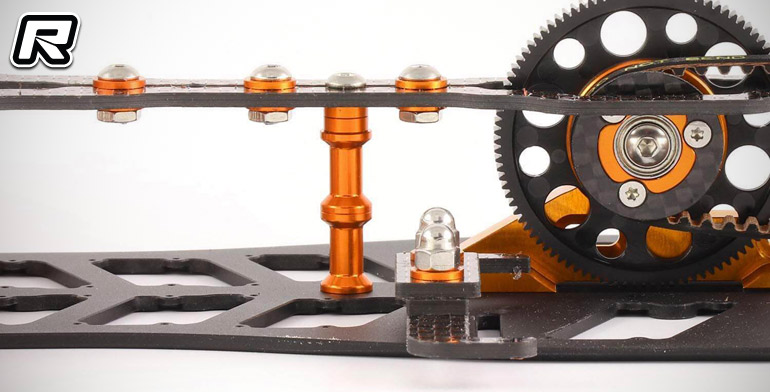

– Upperdeck flex adjusting by 5 holes in rear area (3 screws, shims (steel) and nuts included)
– New servo bridge with machined hole for perfect servo positioning

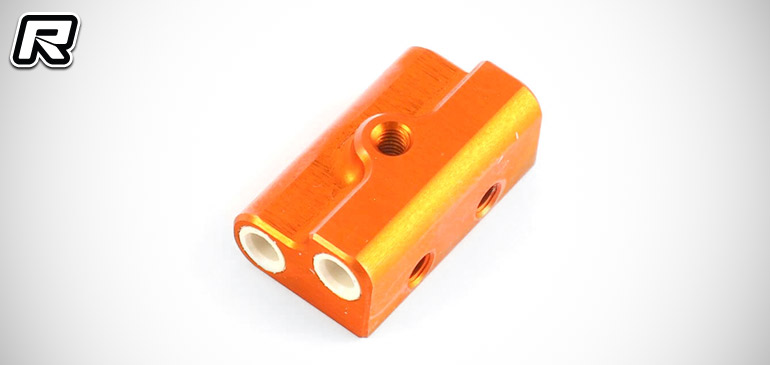

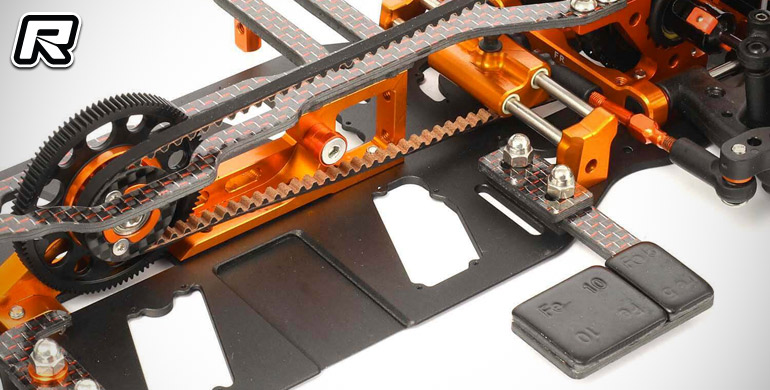

– Almost play-free (more precise than standard) and easy moving slider steering due to highest quality, pressed-in industrial linear bearings
– More forward-biased motor/battery position
– All parts made in Austria with highest precision
– Comes with high Quality Bando Kevlar Belt
– All bearings and screws included
– Requires the use of Xray offset spur gears
– CrossFlex inserts not included

Source: RC-Carbonstore []
