December 26, 2019

Rebellion-RC TC7.2 FWD conversion kit

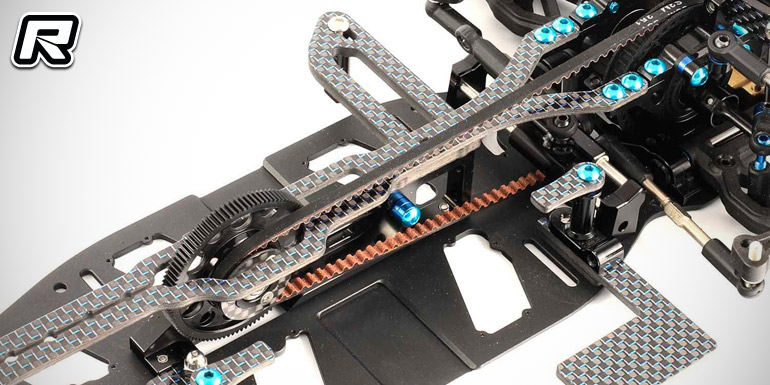

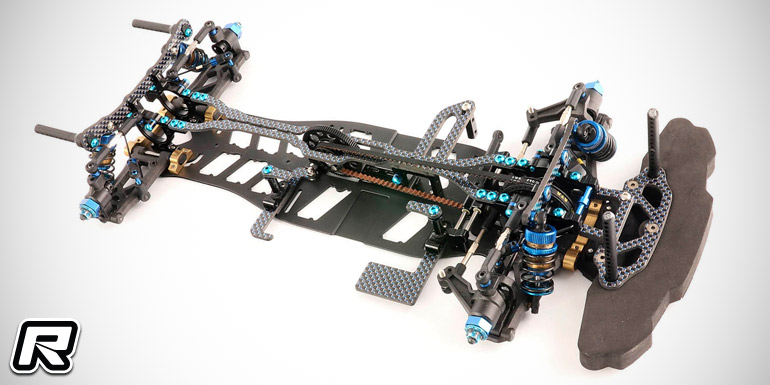

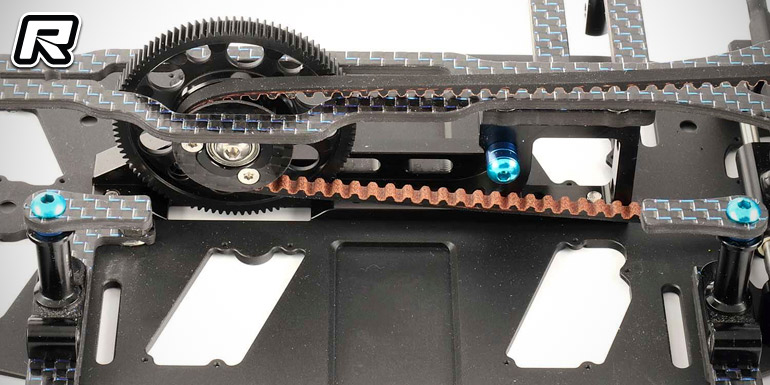

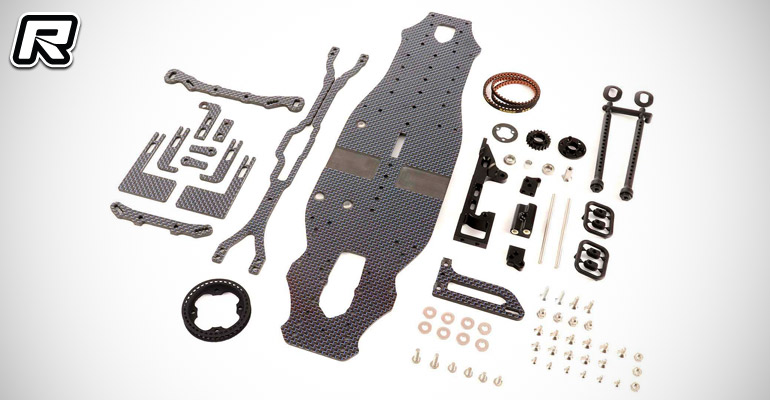

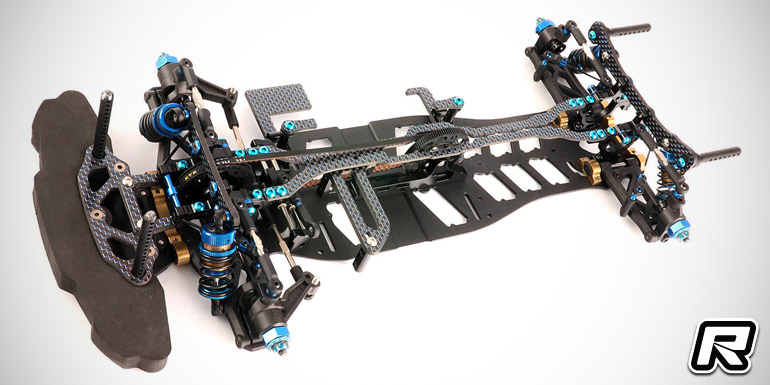

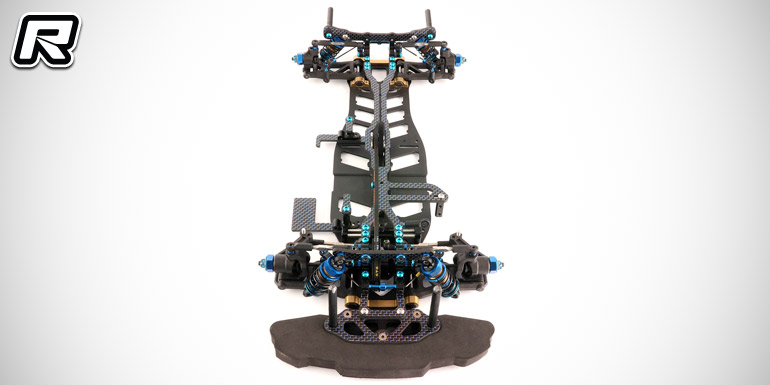

RC-Carbonstore from Austria have introduced their new Rebellion-RC FWD chassis conversion kit for the Team Associated TC7.2 touring car. The conversion includes a new single-piece machined aluminium motor and servo mount with integrated flex adjustments, an ultra-precise stainless steel main shaft, a new servo bridge for optimised servo positioning, a newly developed slider steering assembly, and two types of battery mounts for easy balance adjusting. Also included are the machined spur gear mount and centre pulley, and a unique rear body stay mount that utilises Xray X1 caster inserts to allow for easy body height adjustments. The conversion kit is available including a carbon fibre or Rebellion-RC’s signature CrossFlex aluminium chassis, the latter allows for easy weight balance and torsional flex adjustments using optional brass inserts.

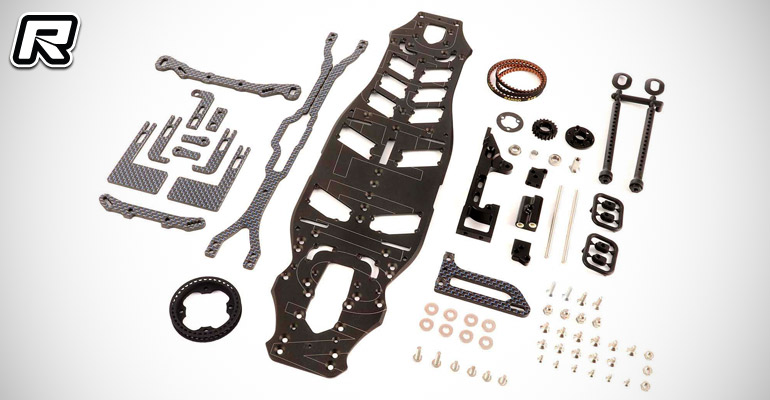

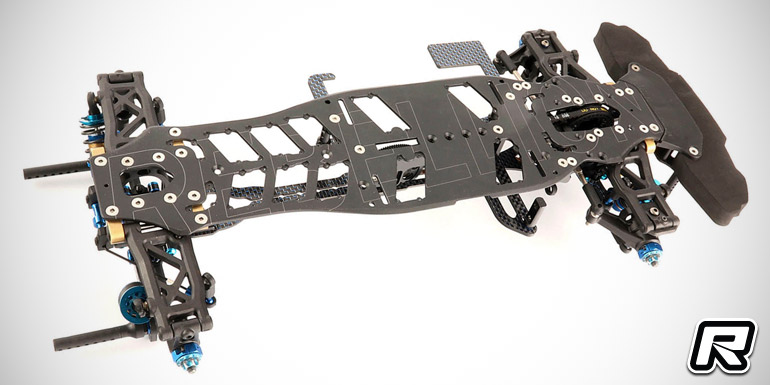

– Alu CrossFlex and carbon chassis kits available
– All-new single piece motor/servo mount
– Ultra low centre of gravity
– Fully adjustable “pizza holder” and standard style battery holder included for easy balance adjustment

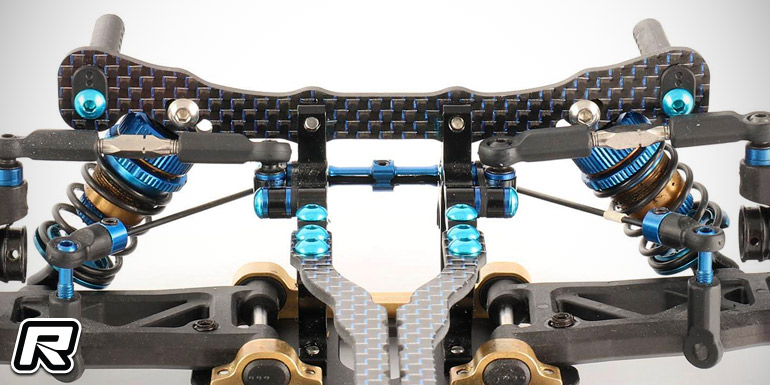

– Unique rear body hight adjustment by using Xray X1 caster inserts
– Stainless steel main shaft with 0.01mm tolerance for highest precision
– Integrated flex adjusting by using 6 screws in motor mount (min. 2 required)

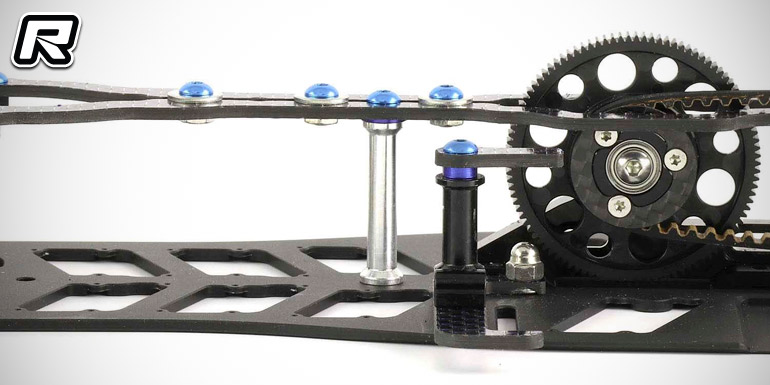

– 2 upper deck chassis stiffener positions for perfect fine-tuning
– Upper deck flex adjusting by 5 holes in rear area (3 screws, shims (steel) and nuts included)
– New servo bridge with machined hole for perfect servo positioning
– Almost play-free (more precise than standard) and easy moving slider steering due to highest quality, pressed-in industrial linear bearings
– More forward-biased motor/battery position
– All parts made in Austria with highest precision
– Comes with high Quality Bando Kevlar Belt
– All bearings and screws included
– Requires the use of Xray offset spur gears
– CrossFlex available separately
