January 15, 2020

Absima Revenge CTS 8 V3 1/8th speed controller

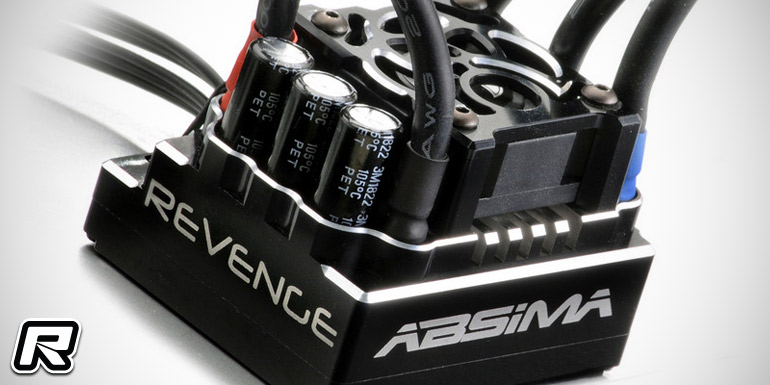

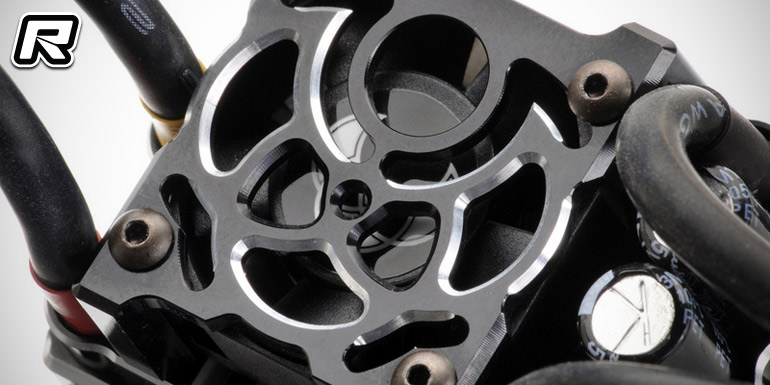

Absima have announced the release of their new Revenge CTS 8 V3 speed controller for competition 1/8th scale applications. The speedo utilises a machined aluminium case and add-on cooling fan for optimised heat dissipation while the software allows for a wide range of throttle and brake adjustments, ensuring the ESC can be adapted to virtually every driving style and track condition using an optional programming box. The 180A rated controller is of a sensored design, it features a 6v/7.4V BEC system, all black wires for a professional factory look and it is usable with up to 6S LiPo battery packs.

– Operation mode: Sensored/Sensorless
– Current rating: 180A constant, 950A peak
– Resistance: 0.0003ohm
– Max kV: up to 3000kV
– LiPo/LiFe: 2S-6S (7.4v-22.2v)
– NiMh/NiCd: 6-18 Cells (NiMh-NiCd)
– Adjustments: optional programming box (19 parameters)
– Water-resistant
– BEC system: 6V/7.4V, 4A
– Weight: 146g

Source: Absima [absima.shop]
