January 24, 2020

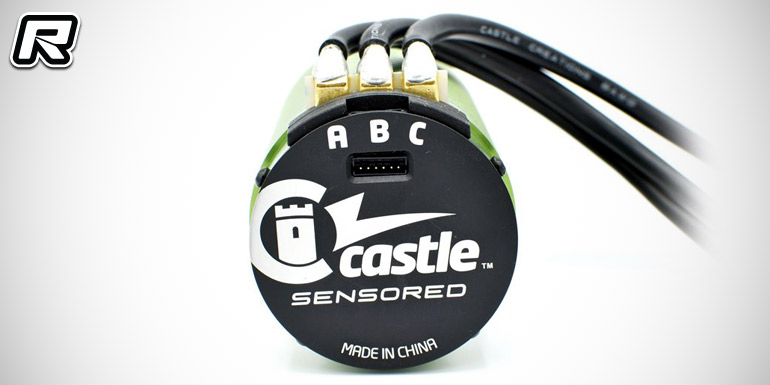

Castle Creations 2028 Extreme 800kV sensored BL motor

Castle Creations have introduced their new 2028 Extreme 800kV sensored brushless motor for large scale applications. The 4-pole 12-slot motor is of an updated design for improved efficiency and less heat build-up. Running modes include sensored and an ultra-efficient sensorless mode and high-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensure the integrity of the rotor is not compromised during harsh running conditions. In addition do oversized NMB bearings and a vibration dampening system ensure the longest bearing life possible. Castle’s proprietary winding techniques also allow to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor and dual sensor ports ensure optimal installation in pretty much every large-scale vehicle such as the Losi 5ive-T, 5ive-B or DBXL-E.

– Input Voltage Range: up to 12S
– Kv: 800
– Max. RPM: 45,000
– Size: Length 113.2mm, diameter 57mm
– Weight (w/wires): 1.25kg
– Shaft size: Length30mm, diameter: 8mm
– Mounting hole specifications: 4mm holes @ 30mm spacing.
– Connectors: 8.0mm male connectors
– Recommended ESC(s): Mamba XL X
– Max. recommended vehicle weight: 4WD vehicles weighing less than 25lbs/11kg, 2WD vehicles weighing less than 30lbs/13kg.
– Running modes: Sensorless and sensored

Source: Castle Creations [castlecreations.com]
