January 14, 2020

Maclan Racing MMax 8 1/8th 200A competition ESC

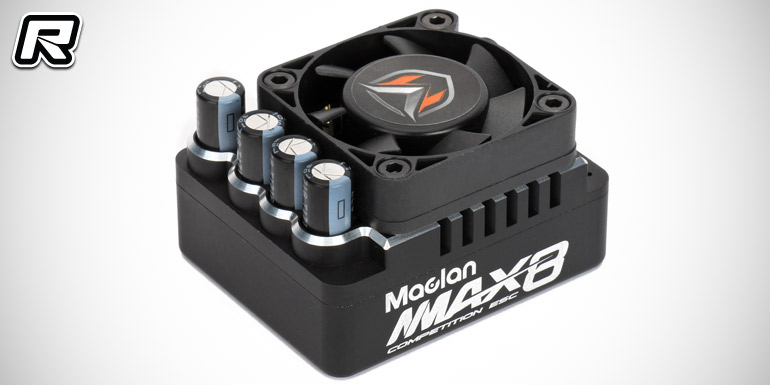

Maclan Racing have introduced their new MMax 8 brushless speed controller for 1/8th scale applications. Developed from the ground up in cooperation with IFMAR World Champion, Jared Tebo, the ESC is of a heavy duty design, ensuring its hardware components meet the demands of high end competition racing while the software side of things enables the racer to take fully control of a multitude of parameters, ensuring the controller can be adjusted to all driving styles and track conditions. The MMax 8 utilises an all-aluminium case that ensures maximum heat dissipation and extreme durability. The 40mm HV turbo ESC fan provides that extra insurance to cool down the ESC in extreme ambient conditions. The super-switch-mode BEC is designed to handle true HV for all types of servos from 6V to 8.4V while the 32-bit micro processor allows for data processing at blistering speeds for improved throttle and brake control.

– High performance 32-bit PIC32 CPU for high speed and accurate processing
– New generation firmware algorithms for the strongest ever throttle and brake performance

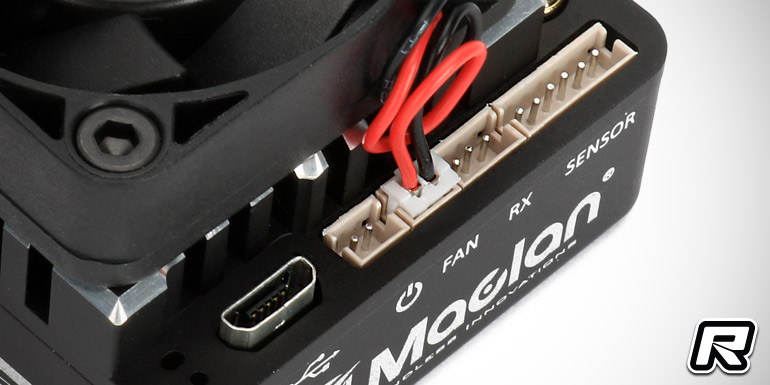

– On board USB host + slave dual mode for the ease of connectivity and unlimited extensibility
– Dual ‘power-on’ options for the ease of operation. (can be controlled by a switch or direct to battery)
– All aluminum structure with omnidirectional heatsink for maximum airflow and optimum cooling performance
– All detachable connectors with several optional length cables
– Adjustable throttle and brake PWM frequency for fine tuning
– Motor/ESC temperature protection and low voltage protection
– MS Windows 7/10 compatible and mobile app software for data logging, programming, and firmware updating

– CPU: Super speed PIC32 32-bit CPU with 5-stage pipeline
– Scale: 1/8th
– Mode: Sensored/ Smart Sensorless
– Continuous current: 200A
– Voltage input: 2S-6S Li-Po
– Wire input: Black 12AWG 200mm x2
– Wire output: Black 12AWG 200mm x3

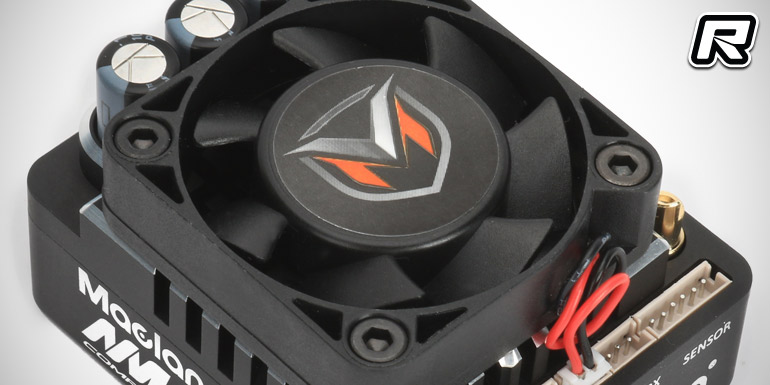

– Cooling fan: 40x40x10mm HV turbo fan
– Dimension: 58x48x34 (mm)
– Net weight: 107g (w/o wires and cooling fan)

Source: Maclan Racing [maclan-racing.com]
