February 7, 2020

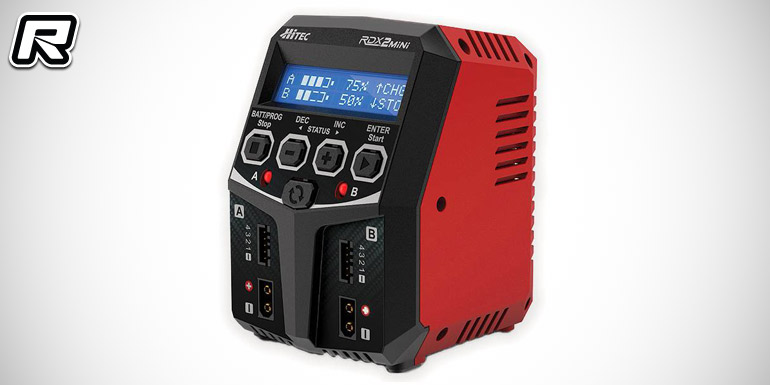

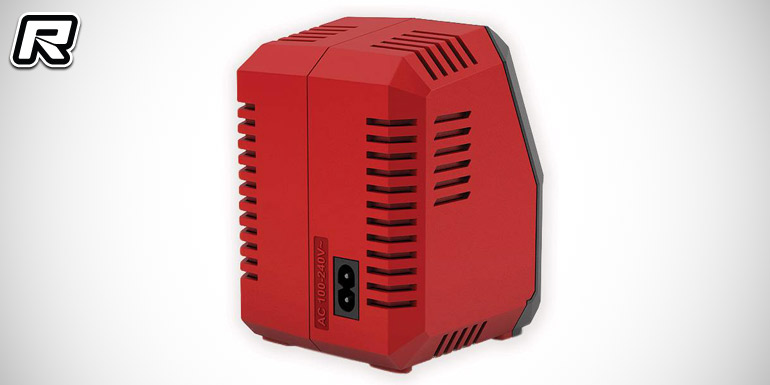

Hitec RDX2 mini AC balance charger

Coming soon from Hitec is their new RDX2 mini AC balance charger. The device is a two-channel charger, featuring independent circuits which allow the user to charge two batteries simultaneously, regardless of chemistry or capacity. With a powerful, combined 100 watt charging output and 5A current, the RDX2 Mini offers the punch needed to charge 2 to 4-cell packs at an affordable price. The convenient front-loading design has the balancing and XT60 ports readily accessible for ease of operation at the workshop or raceway. Additional features include AGM and Cold Charge Modes to safely and easily charge conventional lead-based and absorbed glass mat batteries in cold conditions.

Features:
– User-friendly LCD interface
– Stores 10 different battery memory charge/discharge profiles
– AGM and cold charge modes
– Terminal voltage control
– Built-in balance connector
– Balance, standard, fast and storage modes for all lithium battery chemistries
– Re-peak charge mode and delta-peak sensitivity for NiMH/NiCd batteries
– Optional temperature sensor for NiCd/NiMH charging
– Two built-in XT60 connectors
– Smart ventilation fan

Specifications:
– AC input: 100-240 Volts AC
– Charge power: 100 Watts (2x 50 Watts)
– Charge current range: 0.1 – 5.0 Amps
– Discharge power: N/A
– Current drain for LiPo balancing: 300mA per Cell
– NiCd/NiMH battery cell count: 6 – 8 Cells
– LiPo/LiHV/LiFe/Lilon cell count: 2 – 4 Cells
– Pb battery voltage: 6 – 12 Volts
– Dimensions: 90 x 100 x 127mm

Source: Hitec [hitecrcd.com]
