March 17, 2020

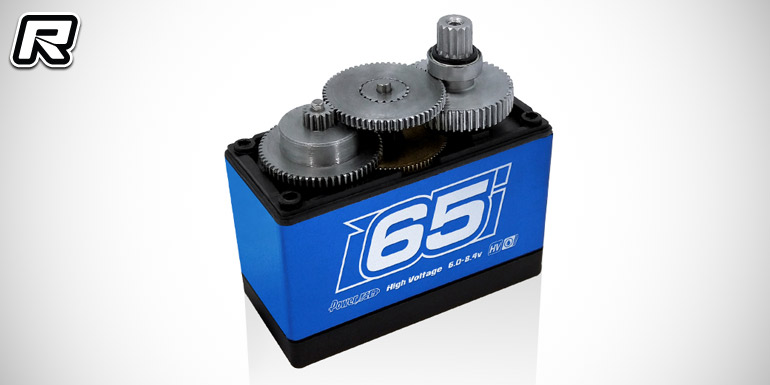

Power HD WH-65KG waterproof 1/5th scale servo

Power HD have introduced their new waterproof WH-65KG high-torque large scale servo. It offers 8.4V high-voltage compatibility, up to 65kg-cm of torque, a stainless steel geartrain for durability, double ball bearings and a blue anodised aluminium middle section. It is ideal for all heavy duty large scale applications including 1/5th scale cars.

Specifications:
– Torque (6.0V): 55.0kg-cm
– Torque (7.4V): 60.0kg-cm
– Torque (8.4V): 65.0kg-cm
– Speed: 0.19 sec (6.0V), 0.17sec (7.4V), 0.15 sec (8.4V)
– Operating Voltage: 6.0-8.4 DC Volts
– Weight: 200.0g (7.05 oz)
– Bearing Type: Dual ball bearings
– Motor Type: DC motor
– Gear Type: Copper & steel
– Size: 65.8×30.0x55.6mm

Source: Power HD [chd.hk]
