March 25, 2020

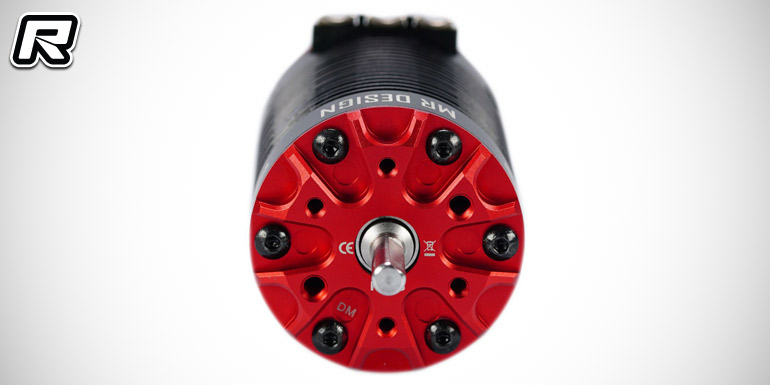

Reds Racing V8 Gen3 brushless motor

Following a first teaser image, Reds Racing have now officially unveiled their new V8 Gen3 1/8th scale electric brushless motor. Over a year’s time worth of development has gone into the V8 line to make it a smooth, durable power plant for drivers and enthusiasts around the world. The Gen3 motor was specifically designed to provide exceptional power, superior smoothness and control in combination with high efficiency and low temperature operation. Coming with a highly finned CNC-machined aluminium can, the Gen3 V8 motor promises a very low temperature build-up in every condition ensuring exceptional reliability. Capable of both sensored and sensorless operation, the new line is ideal for all high speed buggy and truggy applications and the motor comes in 1900KV or 2100KV variants.

Key features & specifications:
– All-new CNC-machined 6061 T6 Billet aluminium ribbed heatsink can
– Smoother power delivery thanks to new 4-Pole Neodymium sintered rotor
– New low resistance high purity copper windings
– Low resistance, high power, silver-plated solder tabs
– High RPM precision ball bearing for maximum performance and life cycle
– Sensored and sensorless operation
– Dual-plug sensor wire harness
– Maximum input voltage: 22.2V 6S LiPo
– Diameter: 42mm
– Length: 69mm
– Shaft diameter: 5mm

Source: Reds Racing []
