April 24, 2020

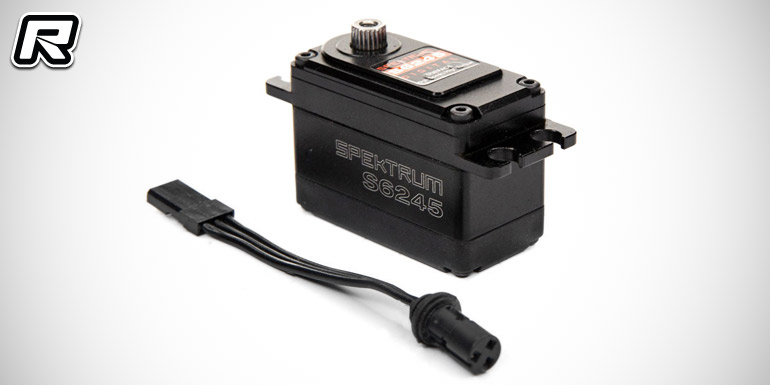

Spektrum S6245 high performance digital servo

New from Spektrum is the S6245 digital servo high speed and high torque servo. The latest generation of Spektrum surface servos provides with the performance needed for any 1/10th scale vehicle application. The S6245 takes the race winning S6240 servo and upgrades it with a sleek, all aluminium, black anodised finish. The low-profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain.

– Stylish stealth black and silver anodised aluminium case
– Aluminium case provides great heat dissipation
– High-voltage HV compatible (7.4V/2S max.)
– Improved torque and speed
– Removable wire harness with different lengths available
– Improved gear design for added durability
– 7075 Aluminium hard anodised output shaft/main gear with steel internal gears
– Includes 2 inch extension for easy minimum wire installs
– Robust aluminium mounting tabs
– NMB dual main output shaft bearings
– 23T output shaft
– Waterproof
– 1-Year limited warranty

– Application: Surface
– Bearing: Dual
– Connector wire length: 51mm
– Gear Material: Metal
– Gear Type: Metal
– Height: 30mm
– Length: 41mm
– Motor type: Coreless
– Programmable: No
– Servo operating voltage: 6.0 – 7.4V (HV)
– Servo size category: Standard
– Speed: 0.08 sec/60 deg @ 6V, 0.06 sec/60 deg @ 7.4V
– Spline count: 23 teeth
– Torque: 14.8kg-cm @6V, 19.2kg-cm @7.4V
– Weight: 62.37g
– Width: 20.8mm

Source: Spektrum [spektrumrc.com]
