April 22, 2020

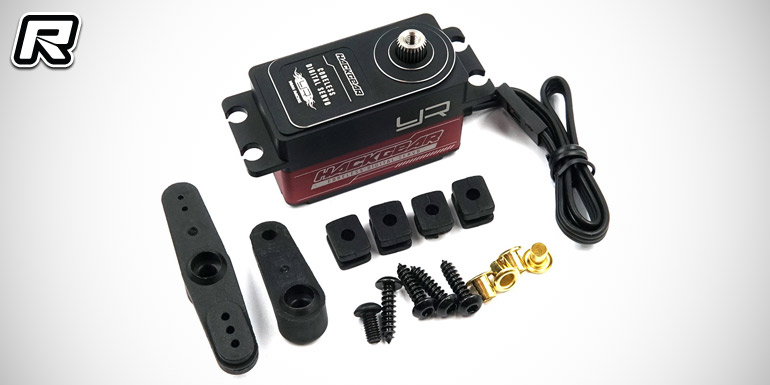

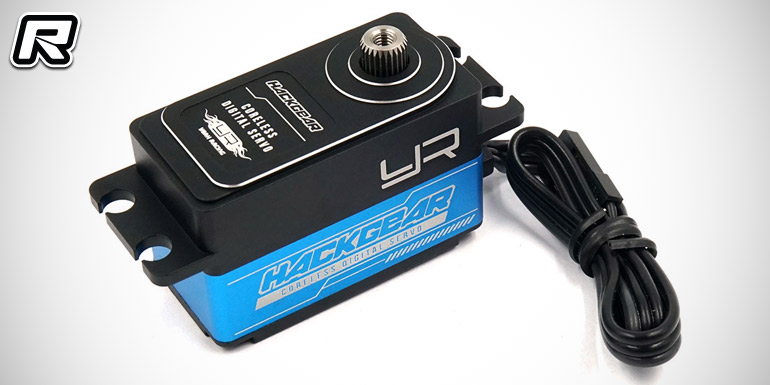

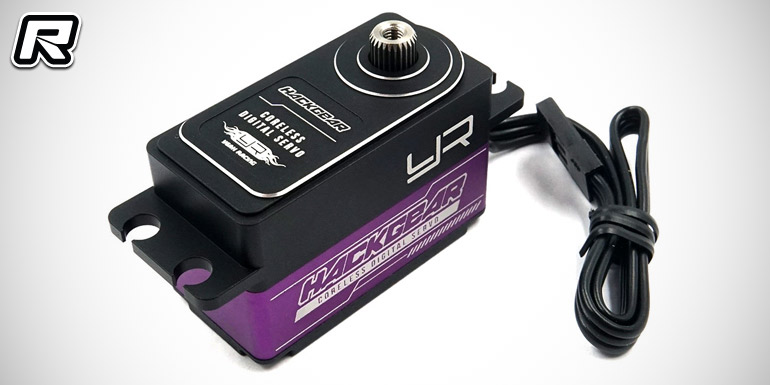

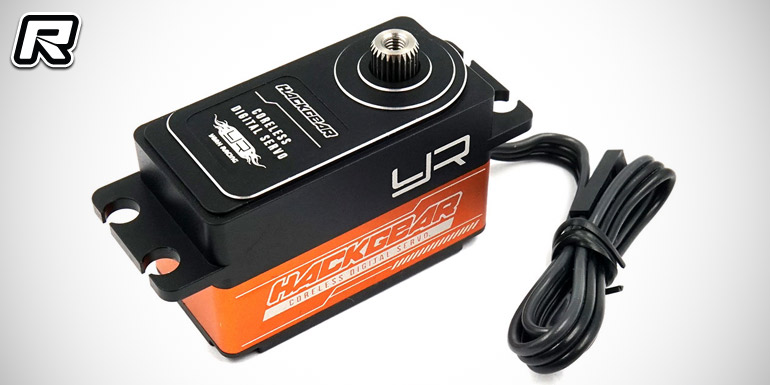

Yeah Racing Hackgear low-profile servo

Coming from Yeah Racing and available in a range of colour options is the new Hackgear aluminium case low-profile digital high-speed servo. Designed for 1/10th scale applications and offering a torque of up to 10kg-cm, the servo is ideal for touring and drift cars with the alloy case optimising heat dissipation when the going gets tough. The servo utilises a mixed titanium and copper geartrain, a ball-bearing supported 25T output shaft, a coreless motor and it is usable with 6.0V to 8.4V input voltage.

– Type: Digital
– Bearing type: Dual Ball Bearings
– Speed @6.0V: 0.09s
– Torque @6.0V: 7.94kg-cm
– Size: 40.9mm x 20mm x 25.2mm
– Motor type: Coreless
– Connector wire length: 300mm
– Connector wire gauge: 25 AWG black wire
– Connector type: Futaba
– Gear type: Titanium + Copper gears
– Shaft: 6mm 25T

Source: Yeah Racing [yeahracing.com]
