April 3, 2020

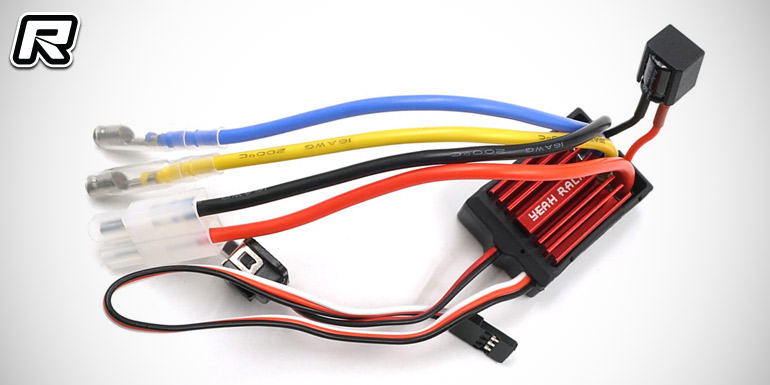

Yeah Racing Tritronic 1/10 waterproof brushed 80A ESC

Yeah Racing have introduced their new and upgraded Tritronic brushed electronic speed controller. The ESC features automatic throttle programming, making it easier to change settings on the fly on the trail or even out bashing. Throttle range is automatically calibrated on power up and the external capacitor is now housed in a flat case for easy mounting as well. The controller is usable for 1/10th scale vehicles such as crawler and trail trucks, buggies, trucks and on-road cars using brushed motors of down to 12T.

Features:
– Application: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
– Water-proof and dust-proof, suitable for all-weather conditions
– Small size with built-in capacitor module
– Fwd/Rev/Br running mode fits for various vehicles
– Great current endurance capability
– Great built-in BEC output capacity
– Automatic throttle range calibration, easy to use
– Easy to set the ESC parameters with throttle positions
– Multiple protections: Low voltage cut-off protection for battery, over-heat protection, throttle signal loss protection

Specifications:
– Fwd. cont./peak current: 80A/480A
– Rev. cont./peak current: 40A/240A
– Voltage range: 2-3S Lipo or 5-9 NiMH
– Classes: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
– Motor limit 2S LiPo or 6 NiMH: 540 or 550 Size Motor: ≥12T Or RPM< 30000 @7.2V
– Motor limit 3S LiPo or 9 NiMH: 540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V
– BEC output: 3A/6V (linear mode)
– Dimension: 38.8×26.3×16.2
– Weight: 38.5g (W/ wires)
– Cooling fan: no
– Running modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse, Training Mode

Source: Yeah Racing [yeahracing.com]
