May 5, 2020

Kingmax B35 & B45 waterproof standard servos

Kingmax have added two new heavy-duty waterproof servos to their lineup in the form of the Diamond Series B35 and B45. The B35 is good for speeds of down to 0.09s/60deg with 35kg-cm of torque at 7.4V input while the B45 offers a speed of down to 0.14s/60deg and up to 45kg-cm of torque. With their green anodised all-aluminium cases they will get the job done in the most demanding applications such as 1/8th nitro off-road and on-road, monster trucks and many more. The features list of the two digital servos also include high-quality potentiometers, precision steel gears, high-quality brushless motors, and dual ball bearings.

B35 specifications:
– Operating speed (6.0V): 0.12sec/60 degrees
– Operating speed (7.4V): 0.09sec/60 degrees
– Operating speed (8.4V): 0.08sec/60 degrees
– Stall torque (6.0V): 27.0kg-cm
– Stall torque (7.4V): 35.0kg-cm
– Stall torque (8.4V): 40.0kg-cm
– Dimensions: 40x20x39.2mm
– Weight: 83.7g
– Connector wire length: 270mm JR

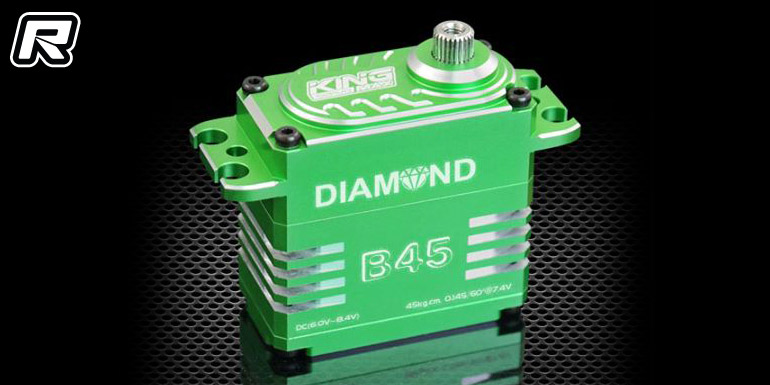

B45 specifications:
– Operating speed (6.0V): 0.19sec/60 degrees
– Operating speed (7.4V): 0.14sec/60 degrees
– Operating speed (8.4V): 0.13sec/60 degrees
– Stall torque (6.0V): 36.0kg-cm
– Stall torque (7.4V): 45.0kg-cm
– Stall torque (8.4V): 50.0kg-cm
– Dimensions: 40x20x39.2mm
– Weight: 83.9g
– Connector wire length: 270mm JR

Source: Kingmax [kingmaxhobby.com]
