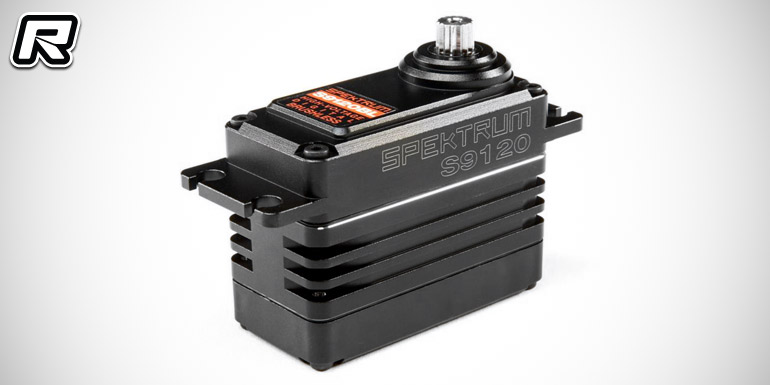

Spektrum S9110BL & S9120BL large scale servos

Spektrum have introduced their new S9110BL and S9120BL large scale servos. The S9110BL (0.14s/88kg-cm) high speed and S9120BL (0.21s/104kg-cm) high torque servos have been designed to give 1/5th scale enthusiasts huge torque and brushless motor precision, taking their driving experiences to a new level. Starting with a new case design with improved support for pins holding the gears, and a new aluminium top plate with re-designed bearing house, the servos have been designed for improved durability. A new brushless motor design will give more power than any previous Spektrum servos and additional improvements include a sleek new stealth black design and new thicker 18AWG wire detachable connector. Both are already race proven, the S9110BL and S9120BL having won the 2020 1/5 Worlds Buggy Class at SoCal Nitro.

S9110BL specifications:
– Application: 1/5 scale off-road
– Connector wire Length: 152mm)
– Deadband: Micro sec: <1
– Gear material: Steel
– Height: 27.2mm
– Length: 62.7mm
– Motor type: Brushless
– Servo operating voltage: 6.0 – 8.4V (HV)
– Speed: 0.21 sec/60 deg @ 6.0V, 0.16 sec/60 deg @ 7.4V, 0.14 sec/60 deg @ 8.4V
– Spline count: 15 Teeth
– Torque: 62.43kg-cm @ 6.0V, 70.69kg-cm @ 7.4V, 88.16kg-cm @ – 8.4V
– Weight: 178.6g
– Width: 30mm

S9120BL specifications:
– Application: 1/5 scale off-road
– Connector wire Length: 152mm)
– Deadband: Micro sec: <1
– Gear material: Steel
– Height: 27.2mm
– Length: 62.7mm
– Motor type: Brushless
– Servo operating voltage: 6.0 – 8.4V (HV)
– Speed: 0.29 sec/60 deg @ 6.0V, 0.23 sec/60 deg @ 7.4V, 0.21 sec/60 deg @ 8.4V
– Spline count: 15 Teeth
– Torque: 84.47kg-cm @ 6.0V, 87.06kg-cm @ 7.4V, 104.66kg-cm @ 8.4V
– Weight: 178.6g
– Width: 30mm

Source: Horizon Hobby [horizonhobby.com]
