Xray have released the full details on their new XB2 2021 1/10th 2wd buggy. This latest iteration puts a focus on the front of the car, with particular attention paid to the steering system. Improved steering system geometry makes the car more predictable, easier to drive and faster in high speed corners, while new steering parts include new steering arms, new Ackermann plate, new servo link, and a new offset servo horn. The XB2 now includes 3-slot graphite steering block extension for improved steering in slower corners and more corner speed in high speed sections. New front and rear shock towers with denser upper shock mounting positions provide ultrafine set-up adjustments and longer front shock shafts and shock bodies maintain proper down travel with the new shock tower. The configuration is now unified for both Carpet and Dirt editions for all track conditions. Other new items include new front roll centre holder with a wider mounting position to reduce diving effect in high speed corners and integrated anti-roll bar mount, all-new Gamma 2C body and Tec wing in the XB2C’21 for improved rotation in corners and better stability at high speeds, or all-new Gamma 2D body and Rank wing in the XB2D’21 for maximised overall grip and rear stability.
All-new for 2021:
– Improved steering system geometry makes the car more predictable, easier to drive and faster in high speed corners
– New steering parts include new steering arms, new Ackermann plate, new servo link, and a new offset servo horn
– Now includes 3-slot graphite steering block extension for improved steering in slower corners and more corner speed in high speed sections (Carpet edition only)
– New front and rear shock towers with denser upper shock mounting positions for ultrafine set-up adjustments
– Longer front shock shafts and shock bodies to maintain proper down travel with the new shock tower. The configuration is now unified for both Carpet and Dirt editions for all track conditions
– New front roll centre holder with a wider mounting position to reduce diving effect in high speed corners and integrated anti-roll bar mount
– All-new Gamma 2C body and Tec wing in the XB2C’21 for improved rotation in corners and better stability at high speeds
– All-new Gamma 2D body and Rank wing in the XB2D’21 for maximised overall grip and rear stability
– Includes stiffer IFMAR legal wheels for all track surfaces and temperatures

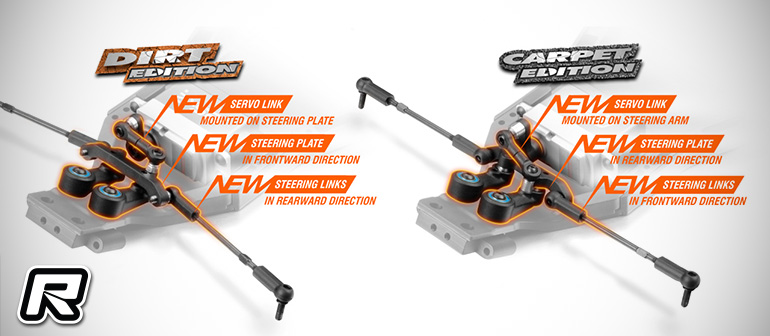

Fully Adaptive Steering System
The XB2 steering system was redesigned for both high traction and low traction conditions. The Fully Adaptive Steering System has many new parts including the steering arms, steering plate, servo horns, steering linkage, and pivot balls. The same components are included in both Carpet & Dirt Editions but allow different build configurations to alter the geometry depending on the track’s conditions. Smart & easy. The Fully Adaptive Steering System allows easy changes to the steering assembly that transform the geometry and alter the handling characteristics of the XB2. No extra parts are required as all parts are in the kit.

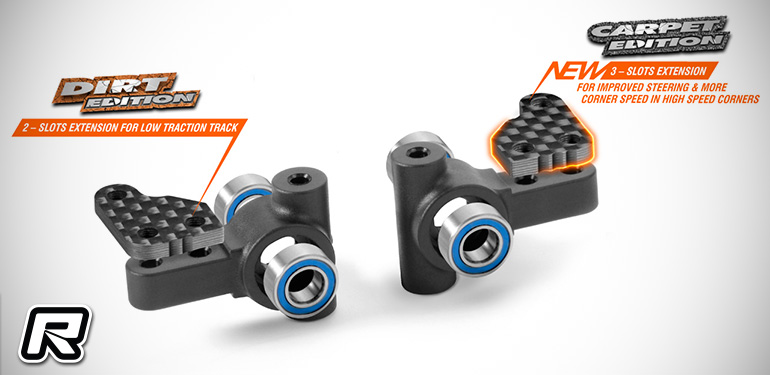

The Carpet Edition now features the new 3 slots steering block extensions better suited for high traction conditions. These extensions allow the wheels to turn more and provide more steering in corners. The overall travel was increased so the car has more steering in tight corners. The Dirt Edition includes the 2 slots steering block extensions more suitable for lower traction conditions. The composite blocks are moulded from a special composite mixture for maximum strength.

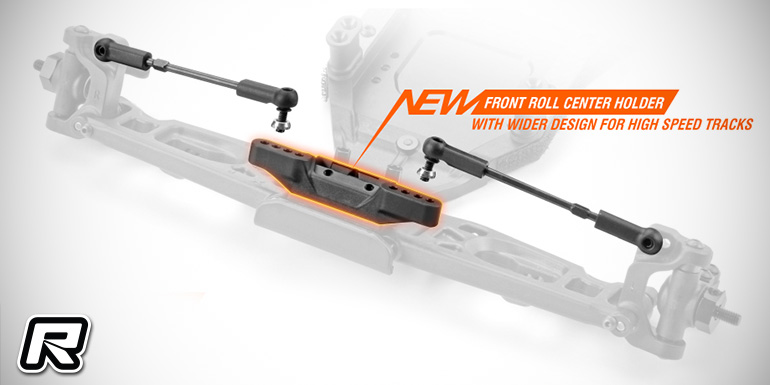

Front Roll Centre Holder
The wider front roll centre holder was updated with an additional outer position that is especially suited for high speed tracks where less front end dive is required. The design of the roll centre holder was also updated for mounting the optional front anti-roll bar directly on the holder. The front roll centre holder is universal for both Carpet and Dirt Editions.

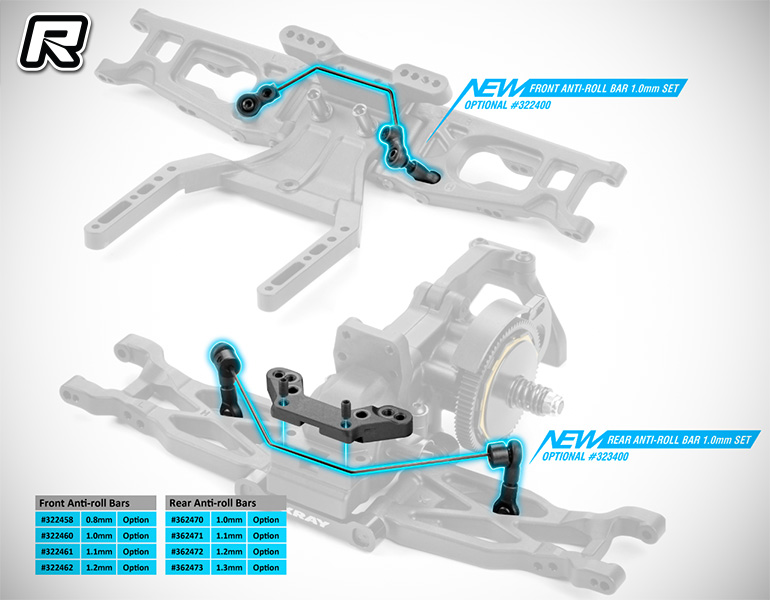

In specific track conditions when the front or rear of the car need more stabilisation, an optional anti-roll bar (#322400 or #323400) can be easily installed. The anti-roll bar is mounted to the front/rear roll centre holder and can be adjusted via the included linkages. Anti-roll bar wires of different thicknesses are available for fine-tuning with the wire thickness laser-engraved on each bar for easy identification.

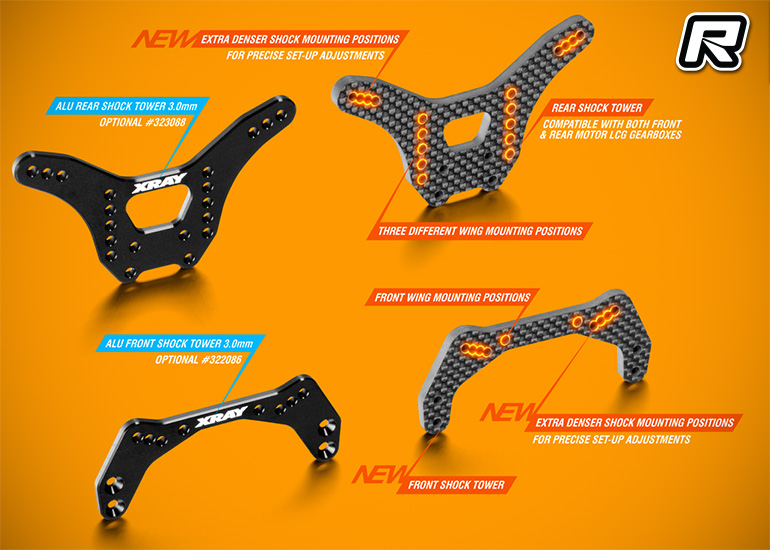

New front and rear shock towers feature denser upper shock mount positions for precise set-up adjustments. The front shock tower features a wing mount provision and the rear tower features three different wing mounting positions for added adjustment. Front & rear shock towers are machined from premium-grade graphite that is lightweight & strong, with multiple shock and roll centre adjustment positions. The shock towers are universal for both Dirt and Carpet edition.

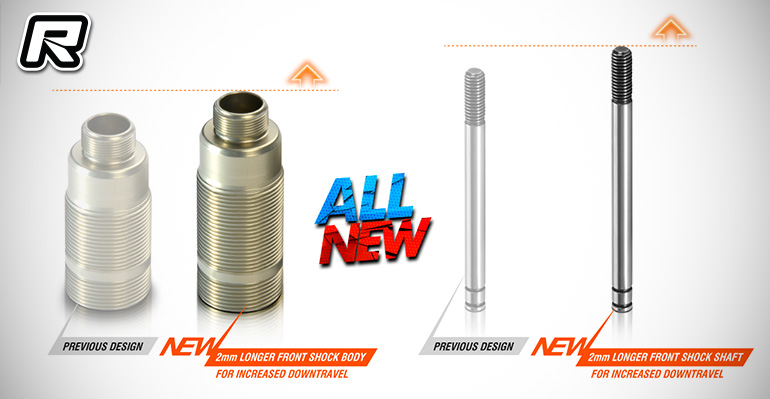

The front shock absorber bodies and shock shafts are longer by 2mm to maintain the correct down travel with the new tower. Combined with the new shock towers and suspension geometry, these changes increase steering and improve jump landing. The big-bore shocks are membrane free, but still allow for easy, consistent building and rebound control using the bleed-screw shock cap design. The aluminium body and lower cap are all machined from premium Swiss 7075 T6 aluminium. The shock shafts are machined from special steel material, precision hand-ground for maximum smooth operation, and additionally hardened for an increased lifespan.
High Traction Body
The XB2C’21 and XB2D’21 each feature a new Xray Gamma body specifically designed with super-smooth airflow and revised downforce characteristics fine-tuned for their intended conditions. The carpet version of the all-new body, the Gamma 2C, is designed especially for high traction conditions and improves the stability in fast corners, chicanes and helps with rotation in tight corners. The Gamma Carpet body is also available in lightweight version
Low Traction Body
The dirt version of the new XB2 body, the Gamma 2D, is designed for low traction conditions. The new profile improves the stability and increases downforce towards the rear of the vehicle to help generate more traction for the car. The Gamma 2D body is also available in lightweight version.

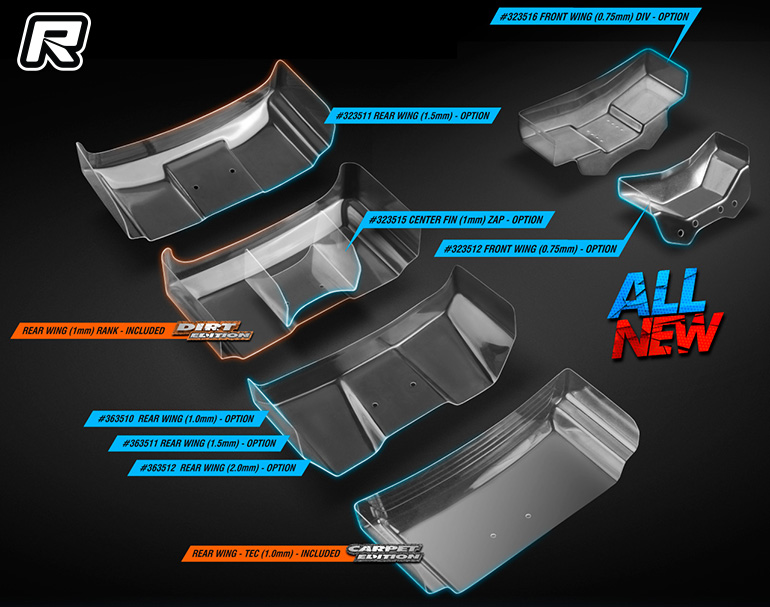

The Carpet and Dirt Editions of the XB2 each feature a different wing paired to work with their particular body. Made from strong Lexan™ material, the wing is supported on the wing mounts by extended flat shims to better support and extend the life of the wing. Various wing designs in different thickness are available separately to alter downforce and handling. The thicker wing gives higher traction and stability but gives reduced steering.
