November 27, 2020

Roche Rapide P10 WGTR pan car

Roche have released their all new Rapide P10 WGTR pan car. Featuring a 2.5mm graphite main chassis and lower pod plate, it sports a new dual upper deck design. The 7075 aluminium motor mount / rear bulkhead sports plastic axle height adjusters for fine adjustments in 0.25mm increment while a newly designed 7 step centre shock position allows for quick adjustment. Up front, a floating servo plate accepts micro and low profile servo, there is a new graphite lower arm and arm pivot, aluminium steering turnbuckle and side link mounts.  Finally there is a newly designed pod link angle adjuster, wide graphite chassis brace, new short side damper tubes and a new black colour anodised ball differential set.

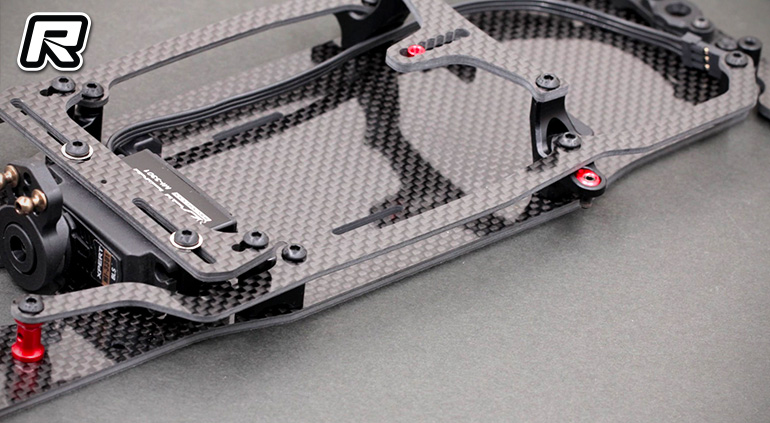

– New design 2.5mm high grade USA graphite materials main chassis and lower pod plate.

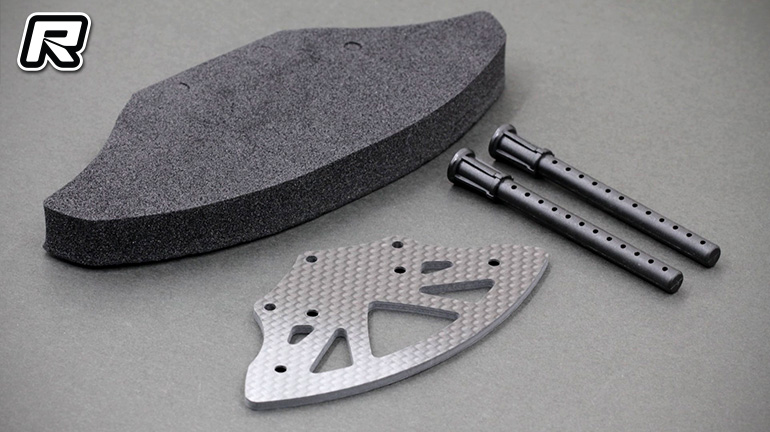

– New design graphite front bumper and large urethane foam bumper.
– New design dual upper deck.

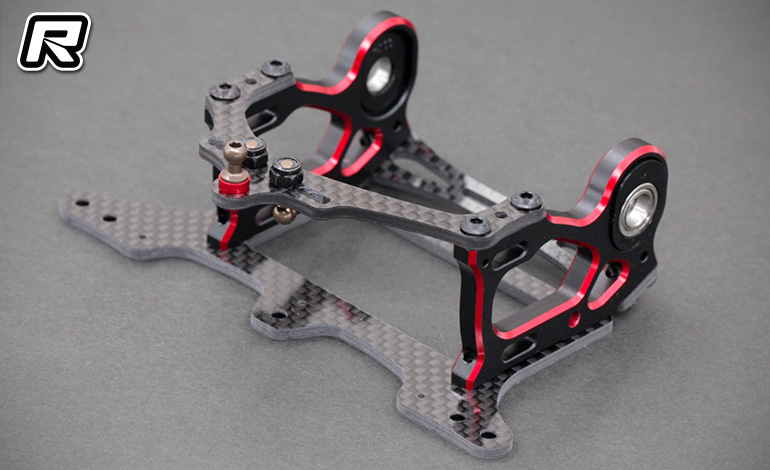

– New design 7075 aluminium motor mount / rear bulkhead with plastic axle height adjusters.
– New fine axle height adjuster, 0.25mm increment.

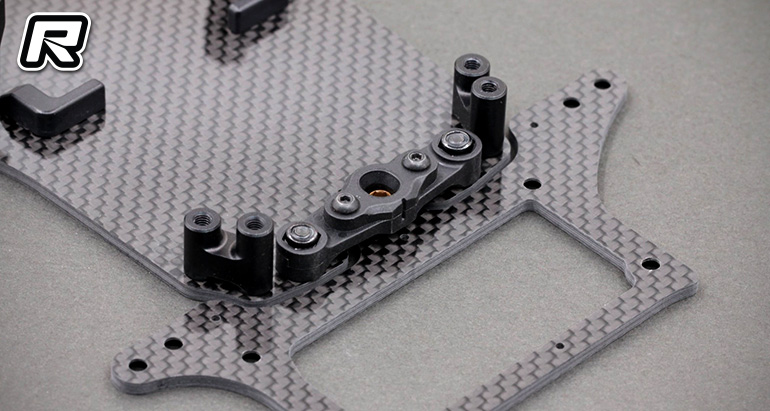

– New design 7 steps centre shock position and quick adjustment design
– New design floating servo plate suitable for micro and low profile servo.
– New design graphite lower arm and arm pivot.
– New black anodise 7075 aluminium steering turnbuckle (M3x42mm).

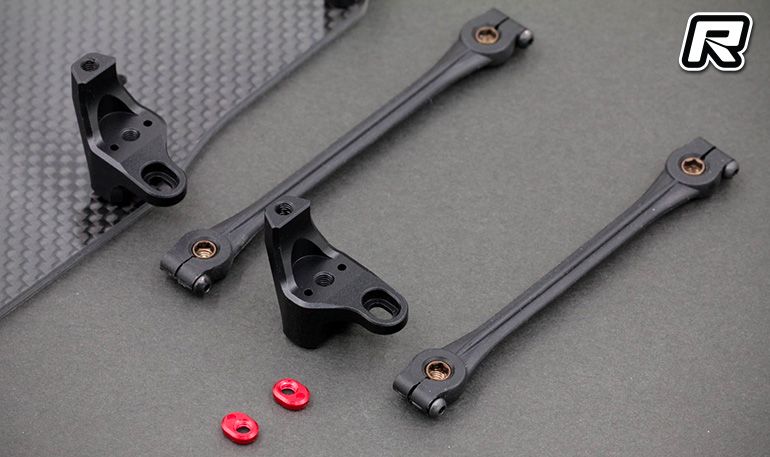

– New design 7075 aluminium side link mount. Installable long or short pod link.
– New design pod link angle adjuster.
– New design wide graphite chassis brace.
– New short side damper tubes.
– New black colour anodised ball differential set.

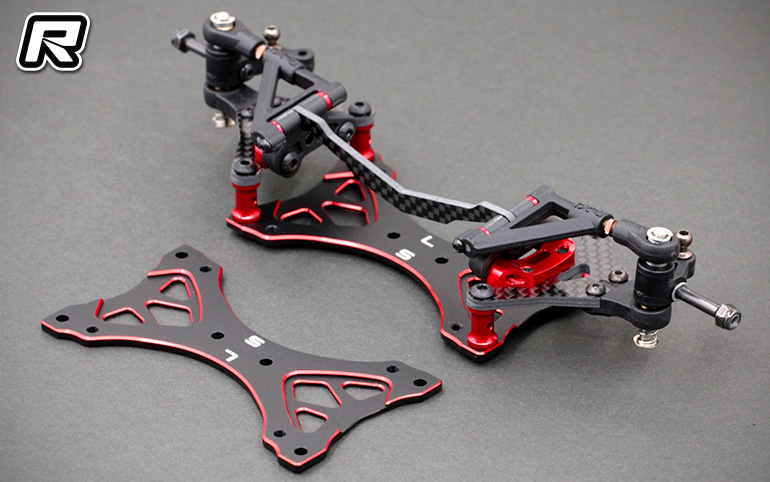

– 7075 aluminium front suspension mount plate.
– DVS-W big bore centre damper, centre spring, POM piston.
– Wheel base (+/-1.5mm) adjustable by aluminium front suspension mount plate.
– Caster adjustment : 1.8/3.25/6.15 deg
– Low friction coating pivot balls.
– Graphite hinge pin brace.
– Spring steel upper arm turnbuckle (M3x15mm).
– High grade composite front suspension and pivot plastic parts.

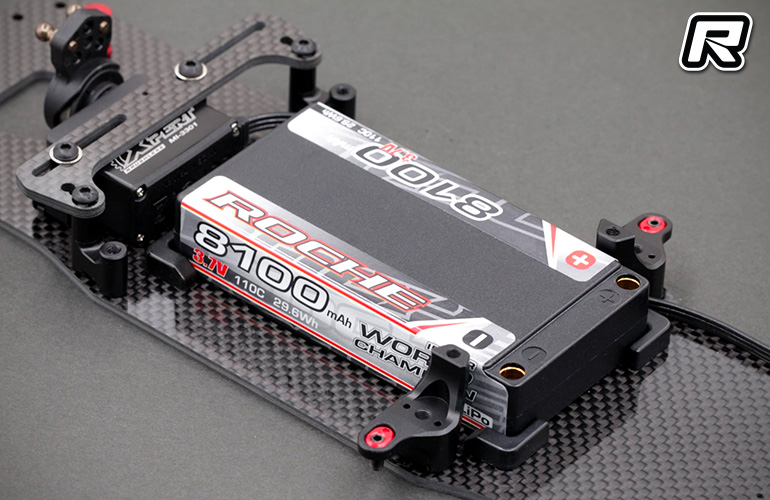

– Inline alignment battery placement.
– 7075 aluminium easy adjust side spring holder.
– Multi angles and positions pod link adjustable.

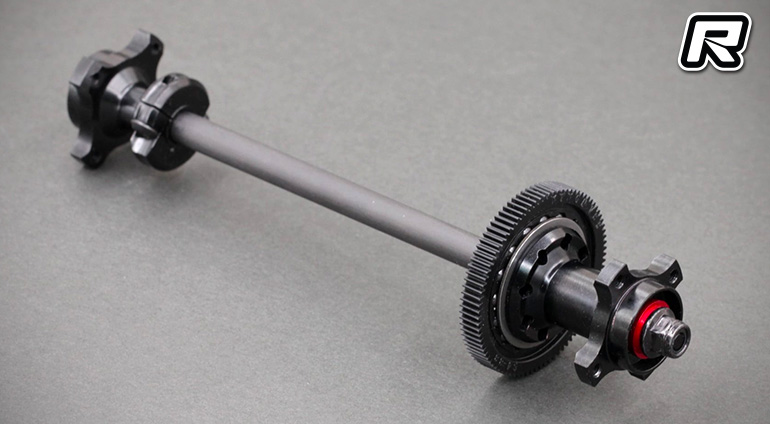

– High precision ball differential and reliable carbon main shaft.
– Thrust ball bearing is included in ball differential with maximum performance.
– High quality full ball bearing set.
– High quality 64 pitch spur gear.
– Aluminium 4.3mm reinforced ball studs.

Source: Roche []
