February 3, 2021

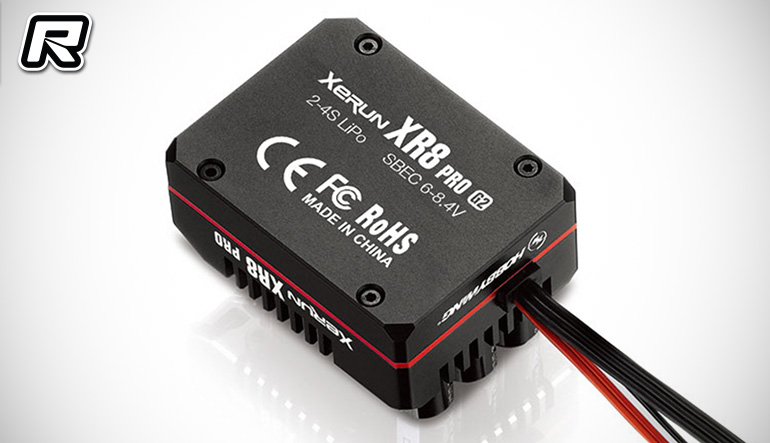

Hobbywing XR8 Pro G2 ESC

Introducing the new XR8 Pro G2 ESC from Hobbywing, designed to work in full sensored mode at all times when it is paired with a compatible Hobbywing motor. This also allows it to utilise the Turbo Timing technology which was designed for the successful XR10 Pro series ESC used in 1/10th On-Road and Off-Road competition. This ESC can support up to 48 degrees of Boost and Turbo Timing when paired with the new G3 motors with an increase of 50% more performance over the previous G2 series motor, keeping you way ahead of the competition. Other features include built-in reverse voltage protection and real-time data logging function, to check the throttle, voltage, current, temperature, RPM and other data in real-time operational status of the ESC and motor. The ESC can be set with wirelessly with the OTA programmer and a smartphone and contains nearly 30 commonly used adjustable parameters. The Capacitor thermal protection is designed and implemented into the ESC effectively preventing capacitors from exploding and causing irreversible damage to the ESC due to overload. The built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step: 0.1V) allows the use of various standard servos and high voltage servos.

Source: Hobbywing [hobbywing.com]
