October 6, 2021

RC Maker MTC2 bulkhead alignment multi-tool

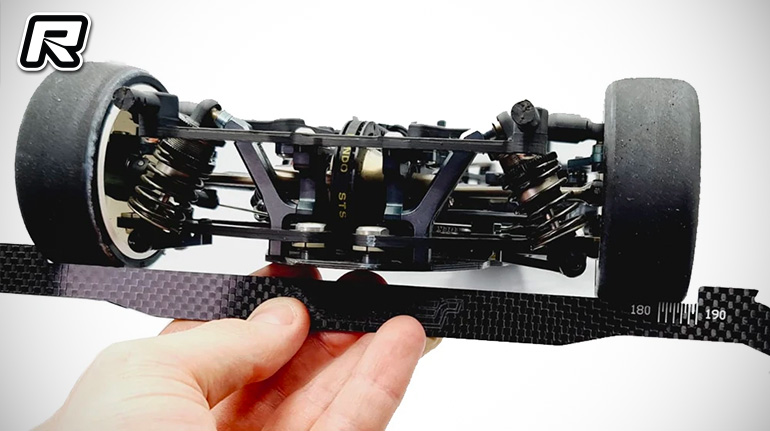

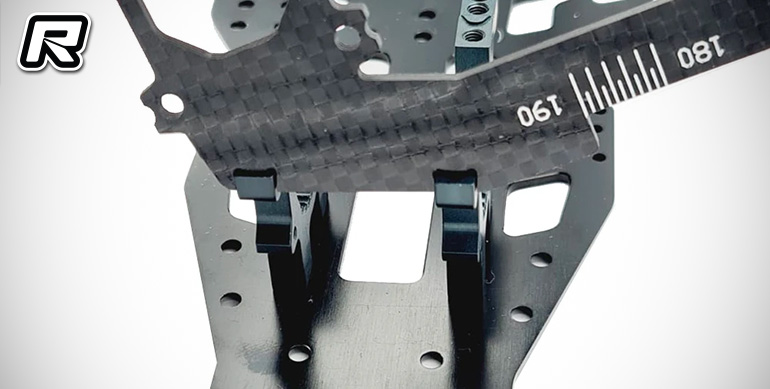

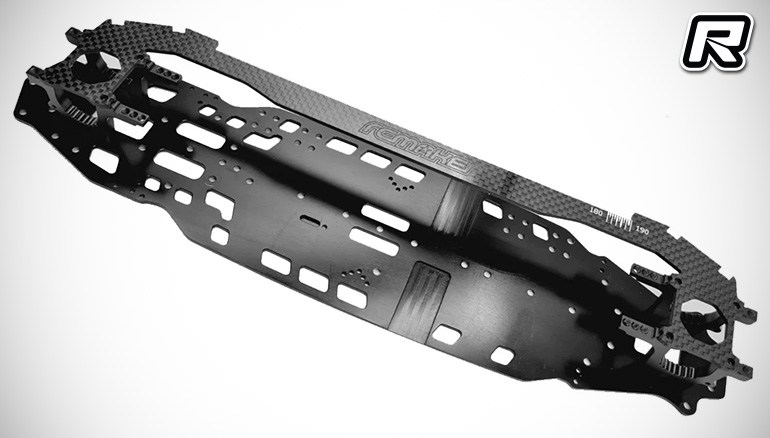

RC Maker have introduced their bulkhead alignment multi-tool for the Mugen MTC2. Featuring a similar design to the original MSE plate, it allows MTC2 drivers to align their bulkheads square, which is absolutely crucial to having a square car. Because the caster is ultimately determined by the upper bulkhead angle, any inaccuracy from the bulkhead alignment will be transferred through to the suspension. The multi tool locates onto the keyed areas of the bulkheads and then attaches with via M3 Button head screws. It can be used with an assembled car, all that needs to be removed are the upper bulkheads and diff/spool. They have also included some other cool features into the tool such as a quick bulkhead width checker, which can be slid in under the rear body mount or front bulkhead brace to quickly check if you’ve got any alignment issues. The other cool feature is the track width measurement, simply align one side with the edge of your tire, and see what measurement the other side is reading. A basic, but cool integration which will come in handy when testing and tuning at the track.

Source: RC Maker [rcmaker.com.au]
