December 15, 2021

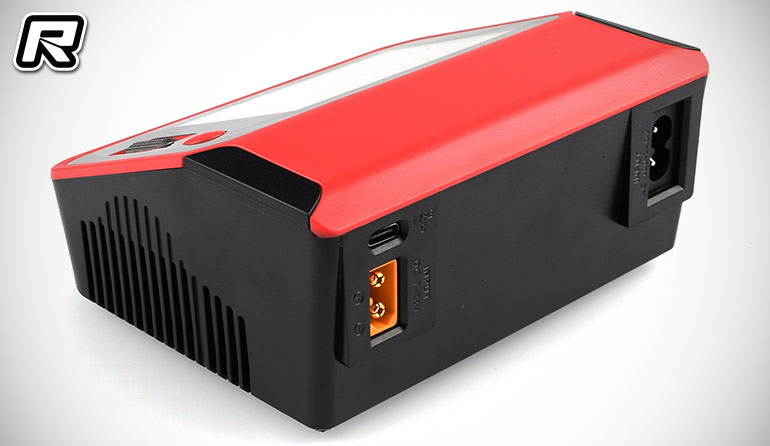

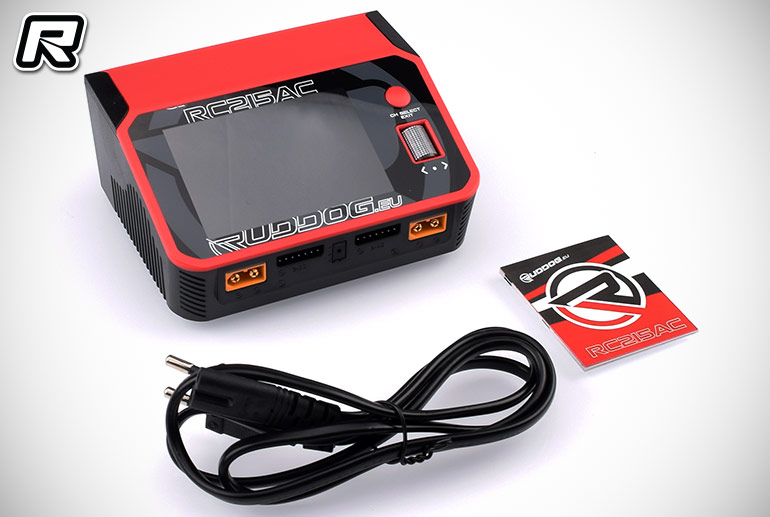

Ruddog RC215AC Dual Channel LiPo AC/DC Charger

The Ruddog RC215AC is a versatile, easy to use AC/DC charger for radio control enthusiasts looking for high performance in a small package. The proven RC215 charger has been combined with an internal power supply and its features were tweaked to provide even more power. As with the DC model, the two-channel charger can be used to charge various battery types, including up to 6S LiPos. Each channel now offers up to 350 W, and the balancer current has gone up to 1000 mA. The USB-C port output was increased to 3.25A. When accommodating the additional space required by the power supply, the design was revised to make the display easier to read on the pit table.

Specifications & features:
Input voltage: 100-240V AC; 7-28VDC, max. 30A
Integrated 200W power supply
Battery type: LiHV/LiPo/LiIon 1-6S, NiMH 1-16S, Pb 1-10S
Charge power: 0.1-15A (max. 250W per channel in SYNC mode), 0.2-25A (max. 500W both channels combined in ASYNC mode)
Discharge power: 0.1-3A (max. 12W per channel), 0.1-15A (max. 250W per channel in Recycle mode)
Balance current: 1.000mA @2-6S
USB-C: 65W, 3.25A @ 20V
Dimensions: 127x106x57mm
Weight: 510g
LC display: IPS 3.5 inch 480×320 pixel
Wheel select button

Source: Ruddog []
