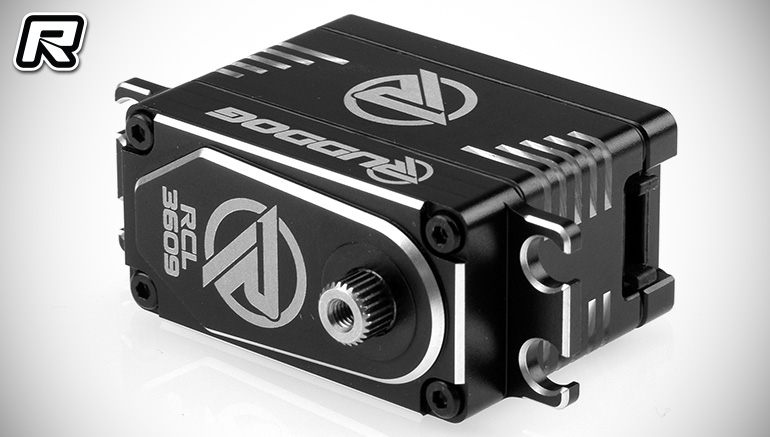

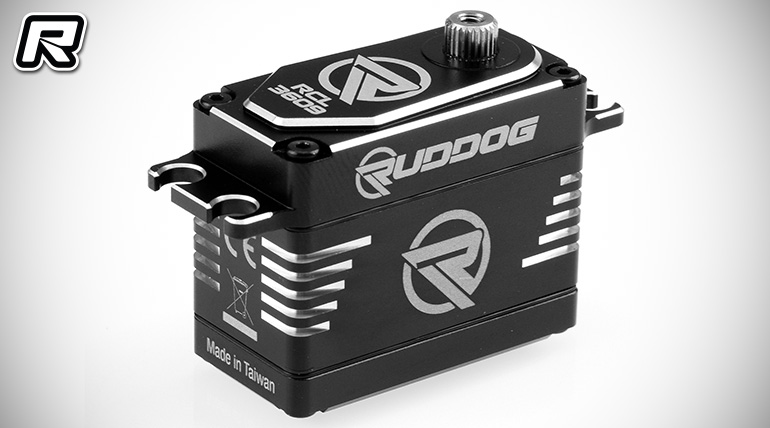

Ruddog RCL1706 HV & RCL3609 HV coreless servos

Ruddog Racing have released two new servos, the RCL1706 HV coreless mid-size servo and the RCL3609 HV coreless standard-size servo that perfectly suits the speed and torque requirements of 1/10th and 1/8th scale racing respectively. With a beautifully machined, black anodised full aluminium case, it is ready to withstand the rigours of racing and matches the look of modern race kits and accessories, and precise steering operation is ensured, especially when paired with their titanium servo mounting screws. Speaking of mounting the servo, tidy installation is a piece of cake thanks to the plug-in servo wire.

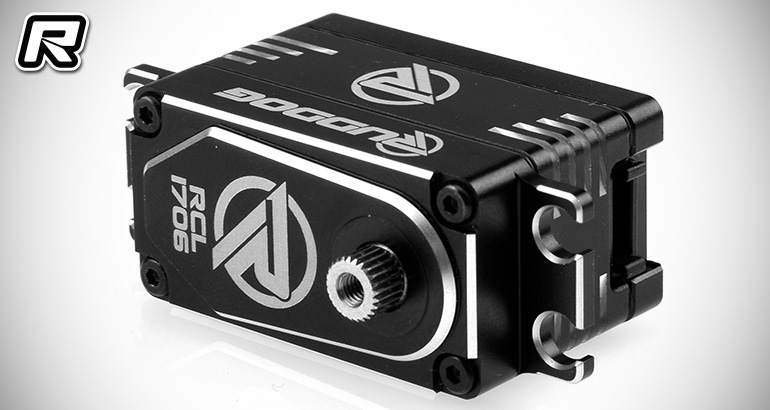

RCL1706 HV specifications
Spline: 25T
Dimensions: 41×20.9×31.8mm
Weight: 60.4g
Speed: 0.06s @8.4V
Torque: 17kg @8.4V
Operating Voltage: 6.0 – 8.4V
Motor Type: Coreless
Gear Type: Metall
Included Wire Length: 180mm

RCL3609 HV specifications
Spline: 25T
Dimensions: 41×20.9×35.1mm
Weight: 66.1g
Speed: 0.09s @8.4V
Torque: 36kg @8.4V
Operating Voltage: 6.0 – 8.4V
Motor Type: Coreless
Gear Type: Metall
Included Wire Length: 180mm

Source: Ruddog [ruddog.eu]
