December 17, 2021

Zuykov 1/10 TC setup station

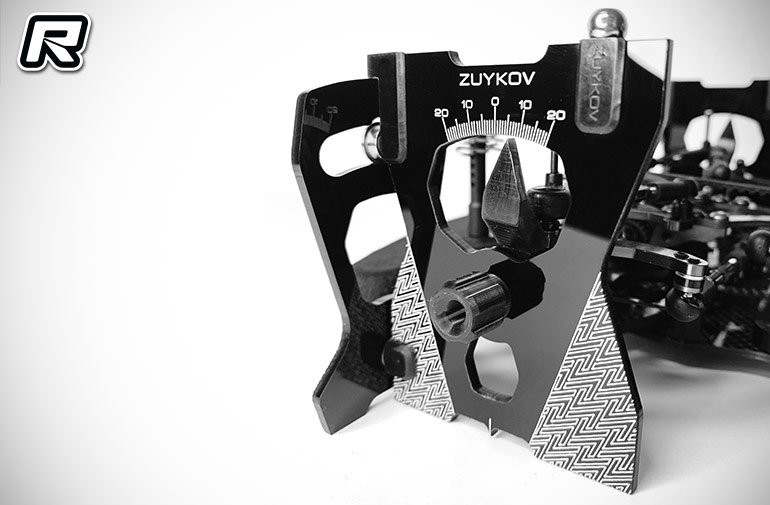

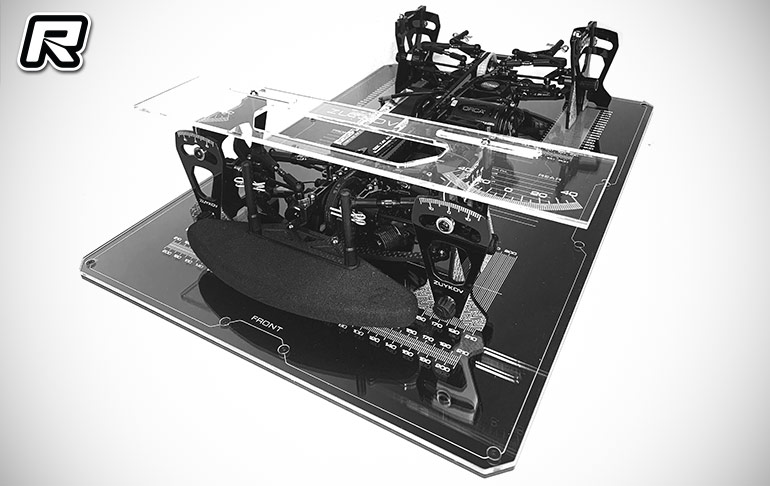

Zuykov, new brand of Russian TC driver Denis Zuykov have released amongst other things, this TC setup station. The idea behind this product is that the kit contains everything you need to set up your car including camber, caster, toe, EPA, droop and ride height. The scale for the camber setting is not at the bottom as usual, but at the top of the setup wheel. This scale is closer to the eyes and its location is much more convenient. Each setup wheel uses 2 bearings for a smooth movement and a scale at the top allows for minimal movement of the bottom over the setup board, greatly increasing accuracy. The top plate can be used on cars up to 210mm wide, adjustable from 40mm out to 40mm in. For owners of Awesomatix A800 the kit includes measuring caster blocks. Thanks to the scale on the side of the setup wheel, the caster and camber can be adjusted simultaneously without the need for a calipers. To change the length of the turnbuckle, there is a 3mm and 4mm wrench in the box.

To measure ride height and droop, you can use 5-6mm gauges in 0.2mm increments for clearance measurements and 4 – 6.5mm in 0.5 increments for down stop measurements. Also, for the convenience of installing the station on the car, there are nuts in the kit. The design allows for easy installation and removal of the station without any tools. To increase reliability, steel nuts are used inside. The tuning station is made of high-quality acrylic using laser cutting technology. The plastic parts are printed on a high-precision 3D printer with a layer size of 0.05mm. An organiser tray is included to organise all the details of the setup station. It saves space on the pit table and provides quick access to the station. For storage and transportation, the station can be disassembled so that it takes up less space.

Source: Zuykov []
