July 8, 2022

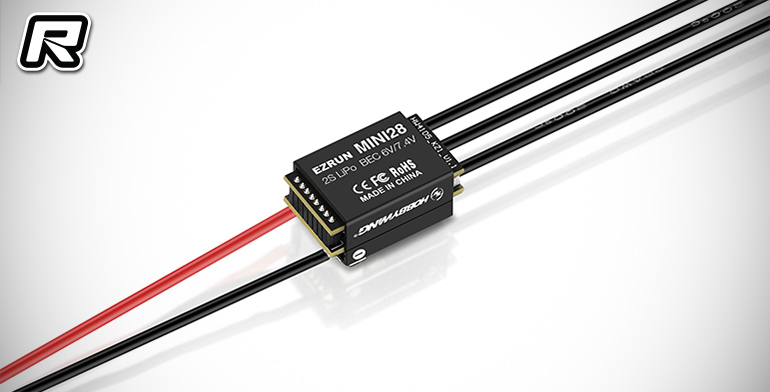

Hobbywing EZRun Mini28 speed controller

Hobbywing introduce their new EZRun Mini28 speed controller built specifically for 1/28 scale racing. The ESC is extremely small (22mm by 14mm) and lightweight at only 5 grams and the shape is designed for ease of soldering and reducing unnecessary tweak, an important factor for a 1/28th scale racing car. The fully-alloy heat sink ensures that the ESC can dissipate heat and operates at a healthy temperature range while the maximum output current can be up to 30A. The ESC has many adjustable parameters, including PWM frequency, brake frequency, softening, Boost, Turbo and much more. It is equipped with two usage modes, the Zero-Timing which is more commonly known as ‘blinky’ and the ‘modified’ mode which allows power-hungry users to increase additional turbo timing in the software. The ESC also has a built-in BEC which can support a maximum output current of up to 3.5A and the output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market. Simple and convenient, parameter settings, firmware upgrading and other operations can be established using Hobbywing’s OTA Bluetooth module and your mobile phone via the Hobbywing app.

Source: Hobbywing [hobbywing.com]
