July 8, 2022

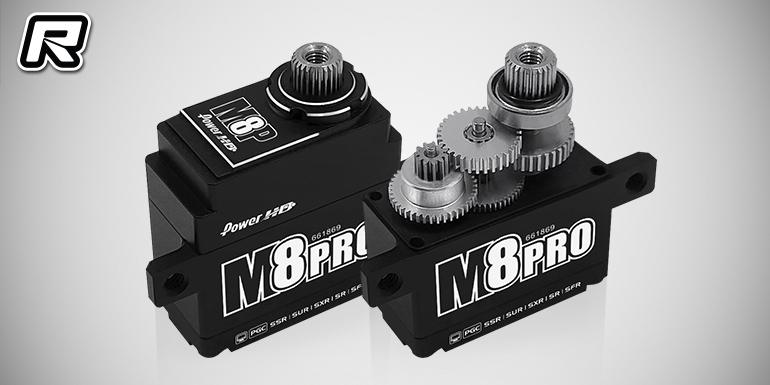

Power HD M8 & M8 Pro 1/12th pan car servo

Power HD have introduced their new 1/12th Pancar specific M8 and M8 Pro professional edition servos. Prior to release, many international drivers havd already used the servo in the 2022 EFRA European Championships 1/12 including Power HD team driver Michal Orlowski who took double TQ and win at the event. Both versions are the same apart from the mounting option. The direct mount design of the M8 Pro helps to lower the chassis’s centre of gravity, offering stronger precision and locking force resulting in smooth cornering. The servo weighs only 28.6g, even with the full aluminium casing. Coming with 25T stainless steel + 7075 aluminium gear set and the latest PCBA, the servos support various ultra-high-speed modes like SSR, SUR, SXR, SR and SFR. Both servos can work with Power HD programming box, to adjust the servos parameters.

M8/M8P Specs:
Torque(4.8V): 4.3 kg-cm (59.7 oz/in)
Torque(6.0V): 6.3 kg-cm (87.5 oz/in)
Torque(7.4V): 7.6 kg-cm (105.5 oz/in)
Torque(8.4V): 8.5 kg-cm (118.0 oz/in)
Speed: 0.10 sec (4.8V) │ 0.079 sec (6.0V)
Speed: 0.068 sec (7.4V) │ 0.058 sec (8.4V)
Operating Voltage:4.8 ~ 8.4 DC Volts
Weight: 28.6 g (1.0 oz)
Motor Type:Coreless Motor
Gear Type:Titanium & Steel
Size:28.5 x 13.4 x 29.0 mm ( 1.12 x 0.53 x 1.14 in)

Source: Power HD [chd.hk]
