September 30, 2022

MIBO 1:10 Onroad Low Profile Coreless Servo

RC newcomer MIBO has announced a new addition to its product range with the release of the MB-2312 High torque/very high speed digital low-profile coreless servo. Featuring steel gear and double BB-ed output shaft, it works great in 1:10 on-road RC cars (suitable for Modified, Stock, FWD, Formula classes). The aluminium middle body of the case for perfect cooling under high load. The MB-2312 is not programmable and has an operating voltage range 4.8-8.4 V. It has a 25T/5.92 mm output shaft.

MB2312 Specifications

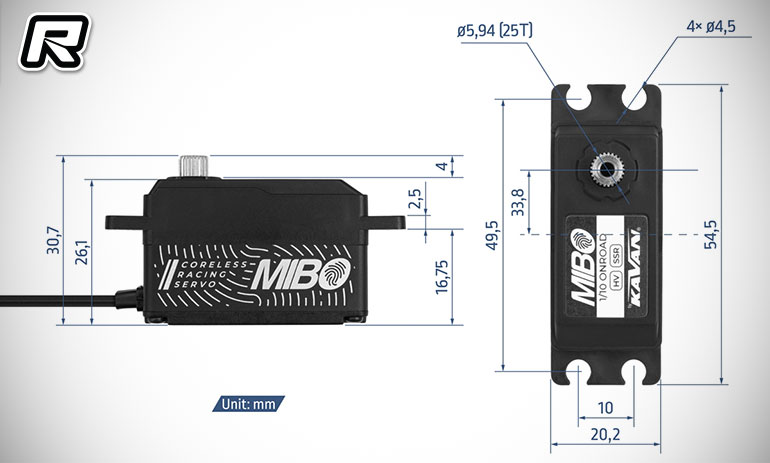

Servo dimensions – Low Profile
Servo type – Digital
Programmable – No
Thrust at 4.8V [kg/cm] – 10
Thrust at 6.0V [kg/cm] – 12
Thrust at 7.4V [kg/cm] – 13
Thrust at 8.4V [kg/cm] – 14
Speed at 4.8V [s/60st.] – 0.105
Speed at 6.0V [s/60st.] – 0.093
Speed at 7.4V [s/60st.] – 0.0828
Speed at 8.4V [s/60st.] – 0.074
Servo gears – Metal
Ball bearings – 2×
High-voltage – Yes
Power supply [V] – 4.8 – 8.4
Length [mm] – 40
Width [mm] – 20.2
Height [mm] – 26.1
Weight [g] – 48
Intended for – Onroad cars
Cable length [mm] – 180

Source: MIBO [mibosport.com]
