October 6, 2022

MIBO 1:8 Waterproof Brushless Servo

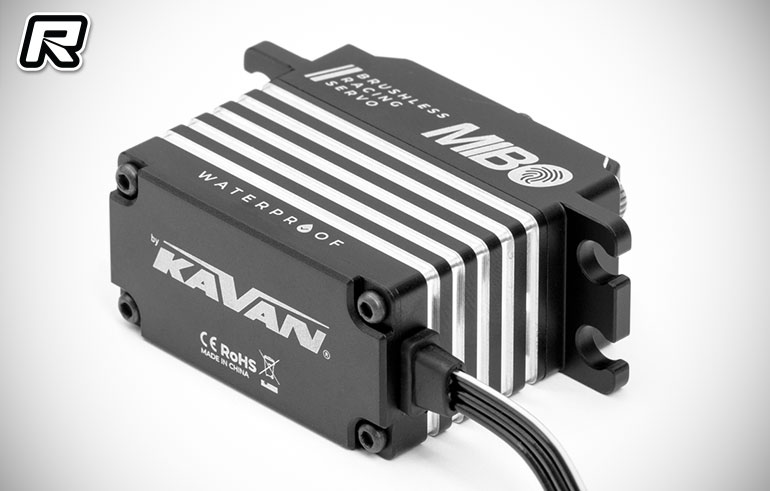

Continuing to add to its range of servos, MIBO has added this specific waterproof 1:8 Offroad servo to its line-up.  The MB-2323 is an ultra high torque/high speed programmable digital standard 83g brushless servo with hardened steel gearing and triple BB-ed output shaft. All-aluminium waterproof and dustproof case (meeting IP67 standard requirements) for perfect cooling under high load and protection from the rough environment. The magnetic encoder instead of the regular mechanical potentiometer adds to the un-compromised precision and reliability.  The servo is also programmable using the KAVAN servo USB programmer/interface and PC software.

Servo dimensions – Standard
Servo type – Digital
Programmable – Yes
Thrust at 4.8V [kg/cm] – 28
Thrust at 6.0V [kg/cm] – 34
Thrust at 7.4V [kg/cm] – 39
Thrust at 8.4V [kg/cm] – 45
Speed at 4.8V [s/60st.] – 0.14
Speed at 6.0V [s/60st.] – 0.115
Speed at 7.4V [s/60st.] – 0.1
Speed at 8.4V [s/60st.] – 0.085
Servo gears – Metal
Ball bearings – 3×
High-voltage – Yes
Power supply [V] – 4.8 – 8.4

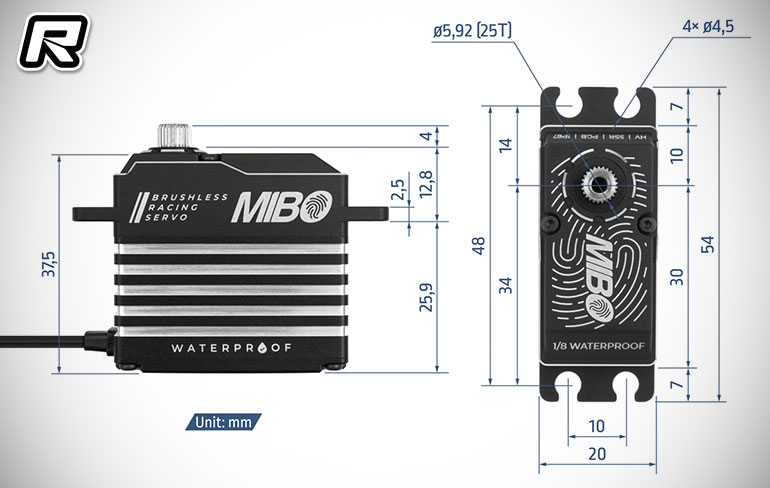

Length [mm] – 40
Width [mm] – 20
Height [mm] – 37.5
Weight [g] – 83
Intended for – Off-road cars
Cable length [mm] – 300
Water resistance – Waterproof

Source: MIBO [mibosport.com]
