December 8, 2022

Carten M210FWD

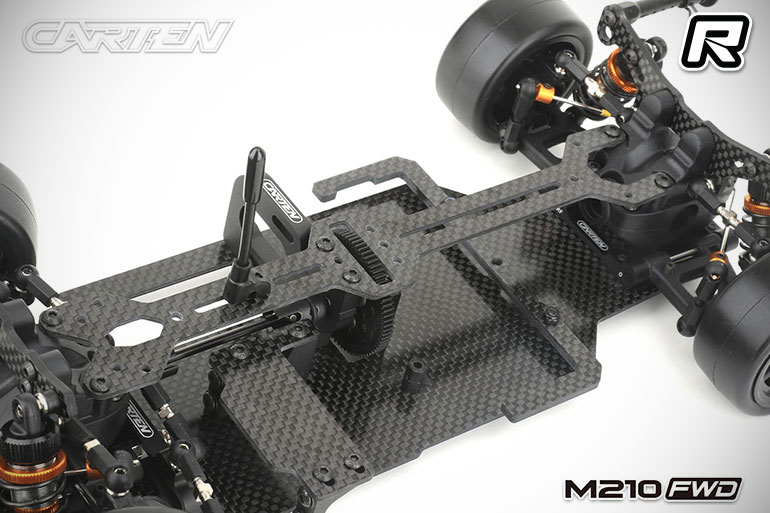

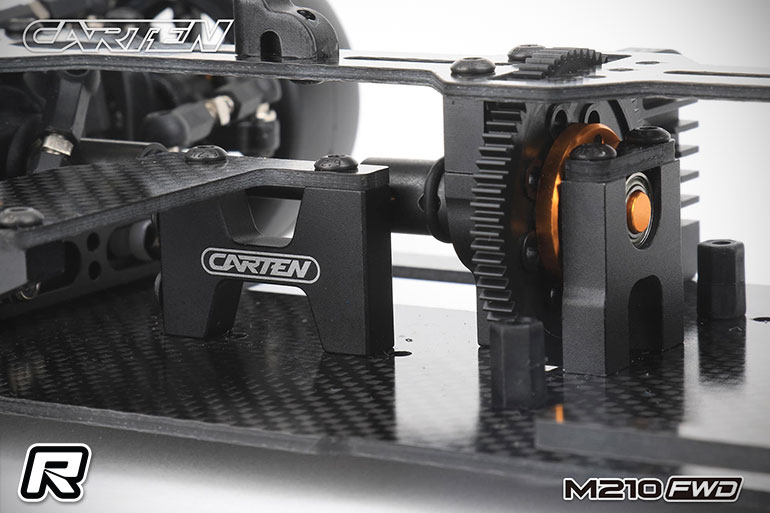

Having released a front wheel drive version of their T410R 1:10 electric touring car kit during the Summer, Carten has now released a FWD version of their M chassis. The M210FWD competition 1/10 Electric Touring Car Kit is based on the M210R touring car but developed for competitive FWD racing. This chassis uses a front motor layout to get the best weight distribution. The shaft drive enables a very low friction drive train. This is supported by ball bearings in every part of the drive. Ball differentials ensure that a perfect set-up is possible for all track conditions.

Kit Spec
Drivetrain:Shaft Drive/ FWD
Track Width:165 mm
Wheelbase(3 Versions)
NBA107-1 : 210mm
NBA107-2 : 225mm
NBA107-3 : 239mm
Final Gear Ratio:2.47 (42/17)
Spur & Pinion Gear:72/39
Tire Diameter:55mm

Full Bearing
Steel CVD Driver Shaft
Composite Fibre Chassis , Upper Deck , Shock Tower
Alu Floating Servo Mount
Alu Motor Mount
Alu Spur Gear Hub
Alu Shocks
Metal gear Differential
Full turnbuckle
Full Alu Toe in Mount
Sway Bar

Source: Carten []
