January 25, 2023

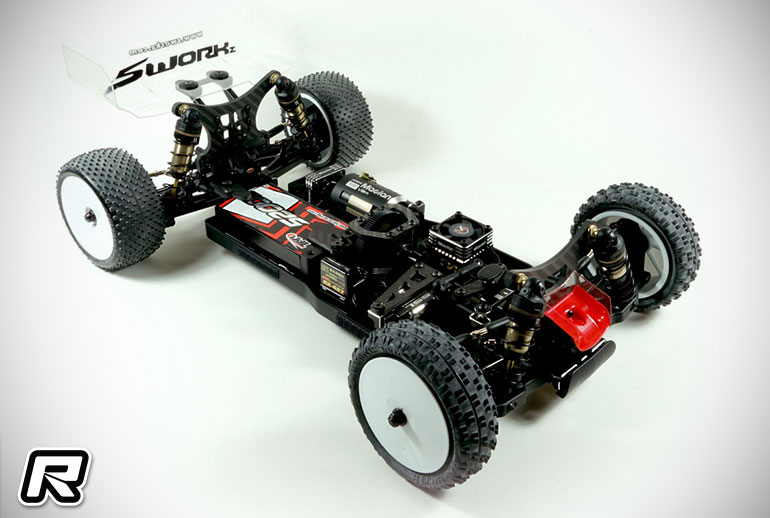

Sworkz S14-4C 1:10 4WD Buggy

Sworkz has introduced its latest 1:10 4WD Buggy, the S14-4C.  This carpet edition race buggy is an evolution from their successful S14-3C platform. The new geometry of the car provides optimised corner speeds and easy handling on carpet and very high grip tracks.  The S14-4C features the new gear box with adjustable diff. system on a T7075 hard anodised and lightened aluminium chassis.   The flex of the chassis can be changed by different material sideguards.  It comes with Sworkz brand new designed 1:10 Pro-Shock System (Short version).  The shocks come with new Emulsion Precision Plastic Shock Caps, Shock Pistons with Seal Parts.  The kit comes standard with a 4mm carbon carpet version for both front rear shock towers. The Teflon coated shock shafts provides smooth shock reactions.  Black Line springs which are good designed with rotation fixed spring holders comes standard in the Sworkz S114-4C kit.

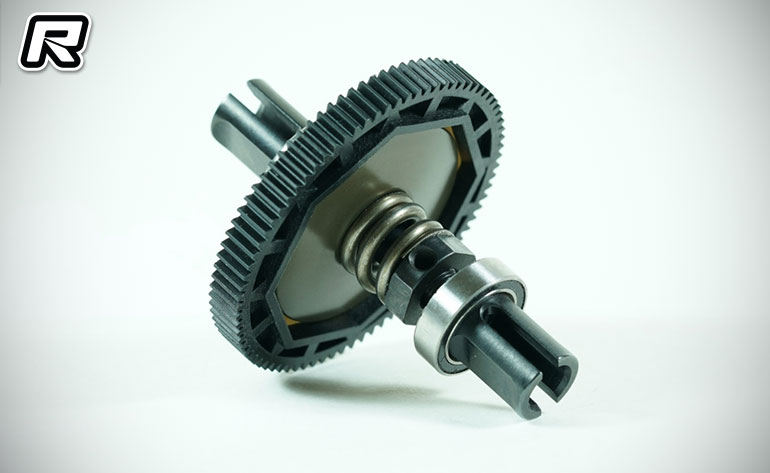

A brand new 5.5mm linkage ball stud system and 3.5mm durable turnbuckles are included in the S14-4C kit. Brand new adjustable ackermann plate with lightened steering bell crank System are included too. The S14-4C has new rear angled lower arms that provide a lower Shock position which leads to a lower centre of gravity.  The kit is equipped with a quick release gear differential system, which can be mounted in 3 different positions. The weight of the gearbox is optimised to a perfect balance between size and strength.  The wing mount holder’s height and angle can be adjusted. The rear width of the S14-4C can be changed with the new Synthesis Rear Hub System and rear CVD modularity.

The SWORKz S14-4C has a front sway bar and a completely new rear sway bar holder system. The new 2-Pad Slipper of the SWORKz S14-4C comes with hard anodised plates, and high temperature resistant slipper pads.  The Sworkz development team focused on using materials, corresponding to the highest quality standards, when designing the car.

S14-4C Pro Kit Features:

T7075 hard anodised & lightened aluminium chassis

Adjustable flex system with various sideguards

4 different battery positions

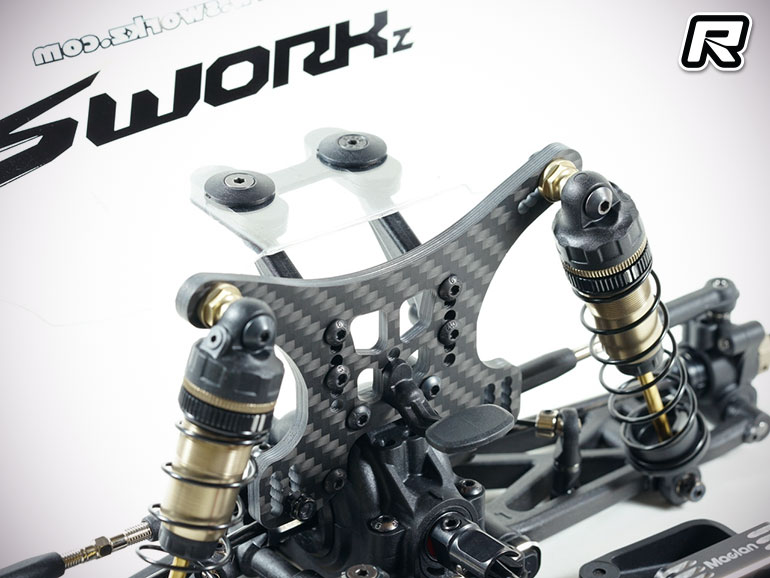

Front and rear 4mm Carbon shock towers

Changeable Ackerman plate

New front and rear sway bar system

Super light anodised front wheel axles

Front wing system

Front aluminum toe in plate

Easy adjustable Ackerman plate

The brand new 5.5mm linkage ball stud system

The brand new 3.5mm linkage turnbuckles system

Adjustable differential position

Quick differential release system

Lower shock position design with adjustable shock tower position

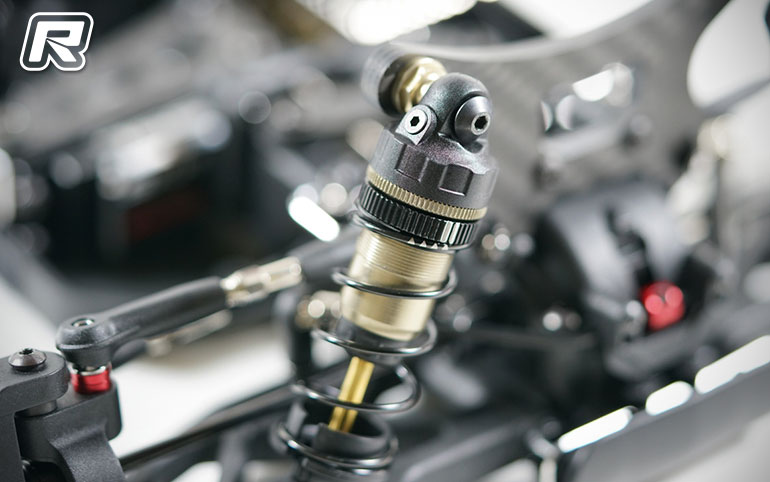

Brand new design SWORKz 1/10 Pro Shock System (Shorty version)

Adjustable rear wing height

Adjustable rear wing angle

Rear width adjustable with hubs included length adjustable CVD

New Synthesis Rear Hub System

Fully adjustable square aluminium toe in plate „SWORKz“ engraved

New designed rear sway bar holder

Rear wheel hex hard anodised

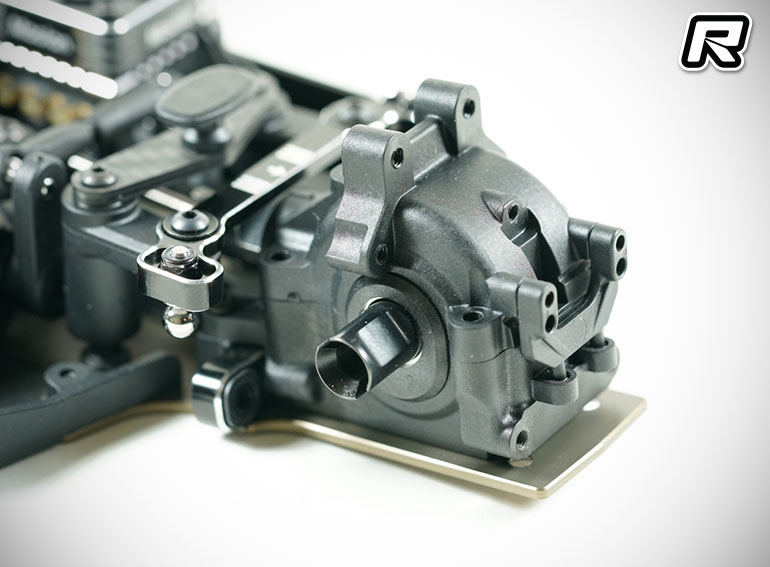

Super light CAD optimised gearbox

2 Pad Slipper System with hard anodised plates

Slipper Anti-Clock rotation adjustment

High temperature resistant slipper pads

Precision plastic emulsion shock cap system

Unique designed shock stud screws

Hard anodised stock studs

Black line shock spring

Rotation protected spring holder

Teflon hard coated shock shaft

Hard coated shock body

6 Ball bearings servo system

Quick release electronic plate

Battery pad included

Balanced motor position

Body shell with optimised aerodynamic design

Source: MW RC Cars [mwrccars.at]
